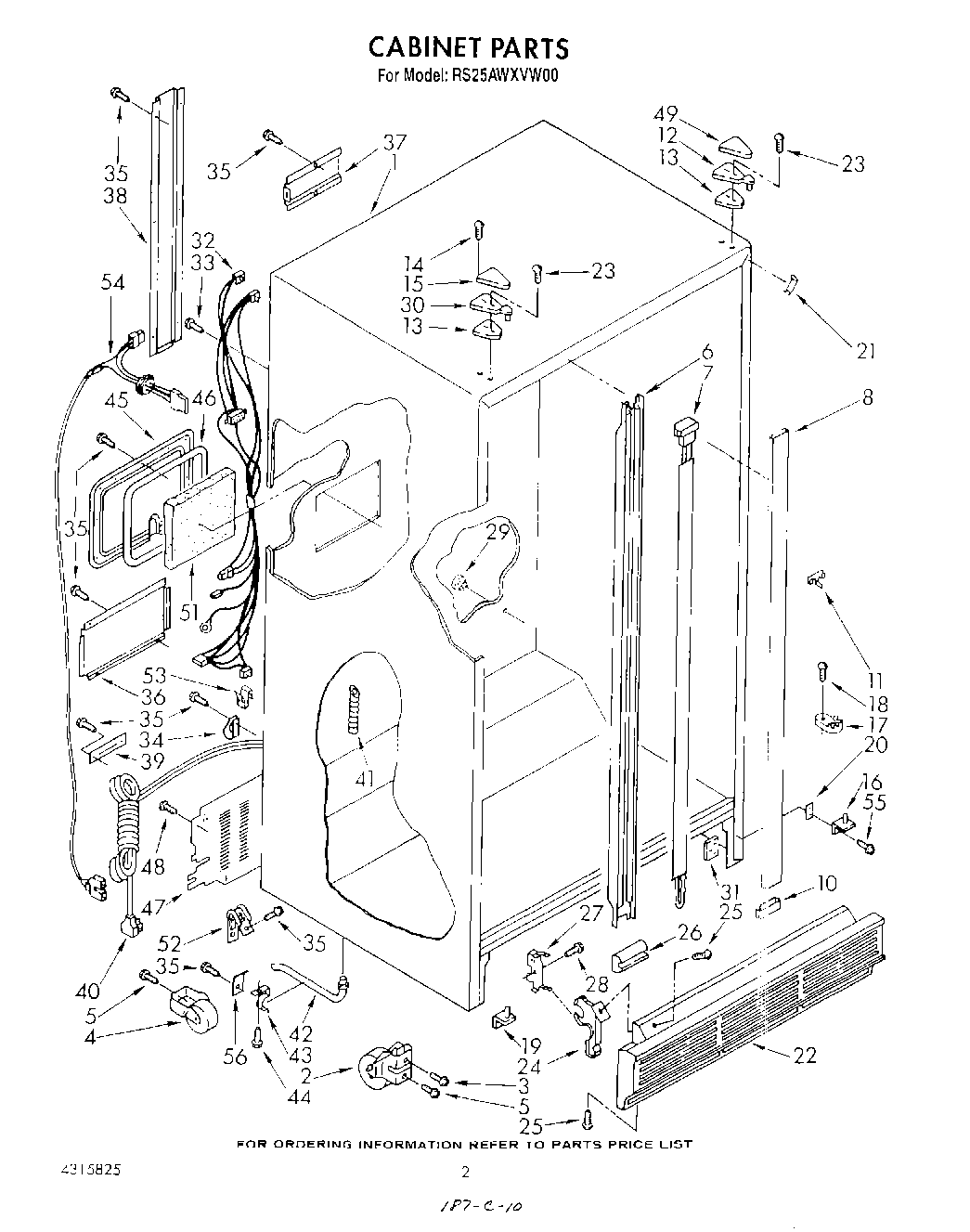

RS25AWXVL00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw, 5/16-24 x 1
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Mullion Rail
7	Heater Mullion
8	Front Mullion Rail (White)
8	Front Mullion Rail (Almond)
10	Filler Bottom Mullion (Almond)
10	Filler Bottom Mullion (White)
11	Clip, Ground
12	Hinge, Top
13	Shim, Hinge Top
14	Screw
15	WP1129262 Whirlpool Refrigerator Cover
16	Hinge, Bottom R.H.
17	WPW10329686 Whirlpool Door Cam Black
18	WP486579 Whirlpool Air Conditioner Screw
19	Hinge, Bottom (L.H.)
20	Spacer, Hinge
21	Filler, Wrapper (White)
21	Filler, Wrapper (Almond)
22	Grille
23	WP999367 Whirlpool Refrigerator Screw
24	WP944224 Whirlpool Refrigerator Support
25	Screw, 8-22 x 5/16 (4)
26	Bumper, Grille
27	WPL 989068
28	W11624204 Whirlpool Screw
29	Grommet
30	Hinge, Top (L.H.)
31	Tap Plate
32	Cabinet Harnes
33	WP250830 Whirlpool Refrigerator Screw
34	Clamp
35	SCREW
35	WP489478 Whirlpool Refrigerator Screw
36	Cover, Wiring
37	Wiring Shield, Short
38	Wiring Shield, Long
39	Tube Clamp (2)
40	Cord, Service
41	Drain Ferrule
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
44	Screw, 8-15 x 3/8
45	Cover, Plug
46	Sealing Gasket
47	WPL 1110664
49	1119787 Whirlpool Refrigerator Hinge Cover
51	Insulation
52	549193 Whirlpool Refrigerator Power Clamp
53	Clip, Wire (2)
54	WP2187501 Whirlpool Refrigerator Wire Harness
55	Screw (Repair)
56	Clamp, Water Line (2)
