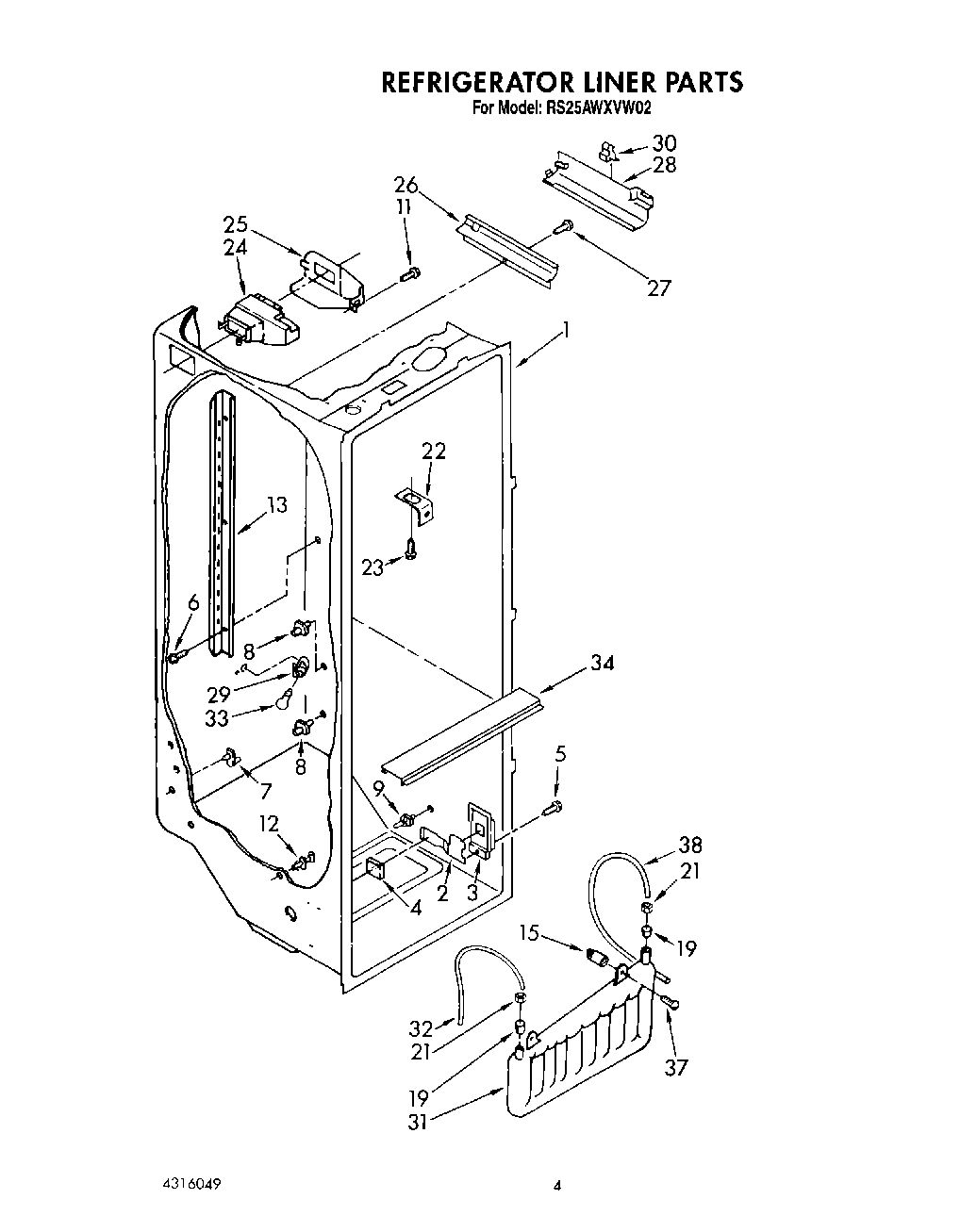

RS25AWXVL02 03 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide, Meat Pan Control
4	Pad, Foam
5	Screw, 8-15 x 1/2 (4)
6	WP488729 Whirlpool Refrigerator Door Screw
7	Stud
8	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9	WP2149540 Whirlpool Shelf Support
11	WP489478 Whirlpool Refrigerator Screw
11	SCREW
13	Shelf Ladder
15	Stud, Spacer (2)
19	Insert, Tube
21	Nut, Compression
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP488488 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	Cover, Conduit
27	WP488163 Whirlpool Refrigerator Screw
28	Cover, Wiring
29	4387478 Whirlpool Refrigerator Light Socket
30	2215823 Whirlpool Refrigerator Clip
31	WP2256126 Whirlpool Refrigerator Reservoir
32	Tube
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
37	Screw (2)
38	W10823511 Whirlpool Refrigerator Water Tube
