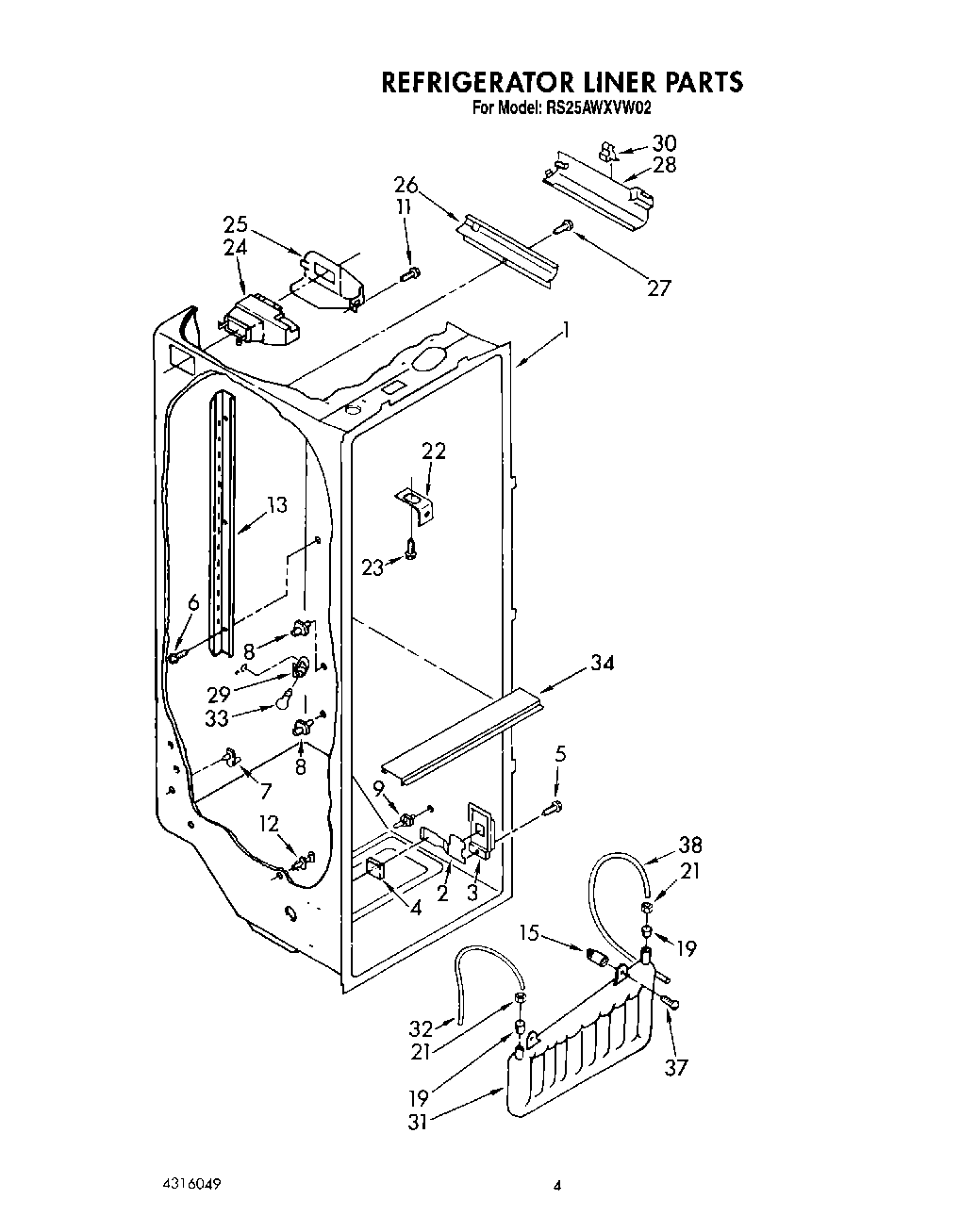

RS25AWXVW02 03 – REFRIGERATOR LINERadmin2025-04-26T12:49:38+00:00RS25AWXVW02 03 – REFRIGERATOR LINER ProductsPositionProduct1Liner (Not A Serviceable Part)2Escutcheon, Meat Pan Control3Slide, Meat Pan Control4Pad, Foam5Screw, 8-15 x 1/2 (4)6WP488729 Whirlpool Refrigerator Door Screw7Stud84388538 Whirlpool Refrigerator Stud Shelf Kit (White)9WP2149540 Whirlpool Shelf Support11WP489478 Whirlpool Refrigerator Screw11SCREW13Shelf Ladder15Stud, Spacer (2)19Insert, Tube21Nut, Compression22WP2256085 Whirlpool Refrigerator Retainer23WP488488 Whirlpool Refrigerator Screw24WPW10151374 Whirlpool Refrigerator Diffuser252152019 Whirlpool Refrigerator Cover26Cover, Conduit27WP488163 Whirlpool Refrigerator Screw28Cover, Wiring294387478 Whirlpool Refrigerator Light Socket302215823 Whirlpool Refrigerator Clip31WP2256126 Whirlpool Refrigerator Reservoir32Tube33RANGE ONLY 40W 120V APPL BULB34Light Lens37Screw (2)38W10823511 Whirlpool Refrigerator Water Tube
