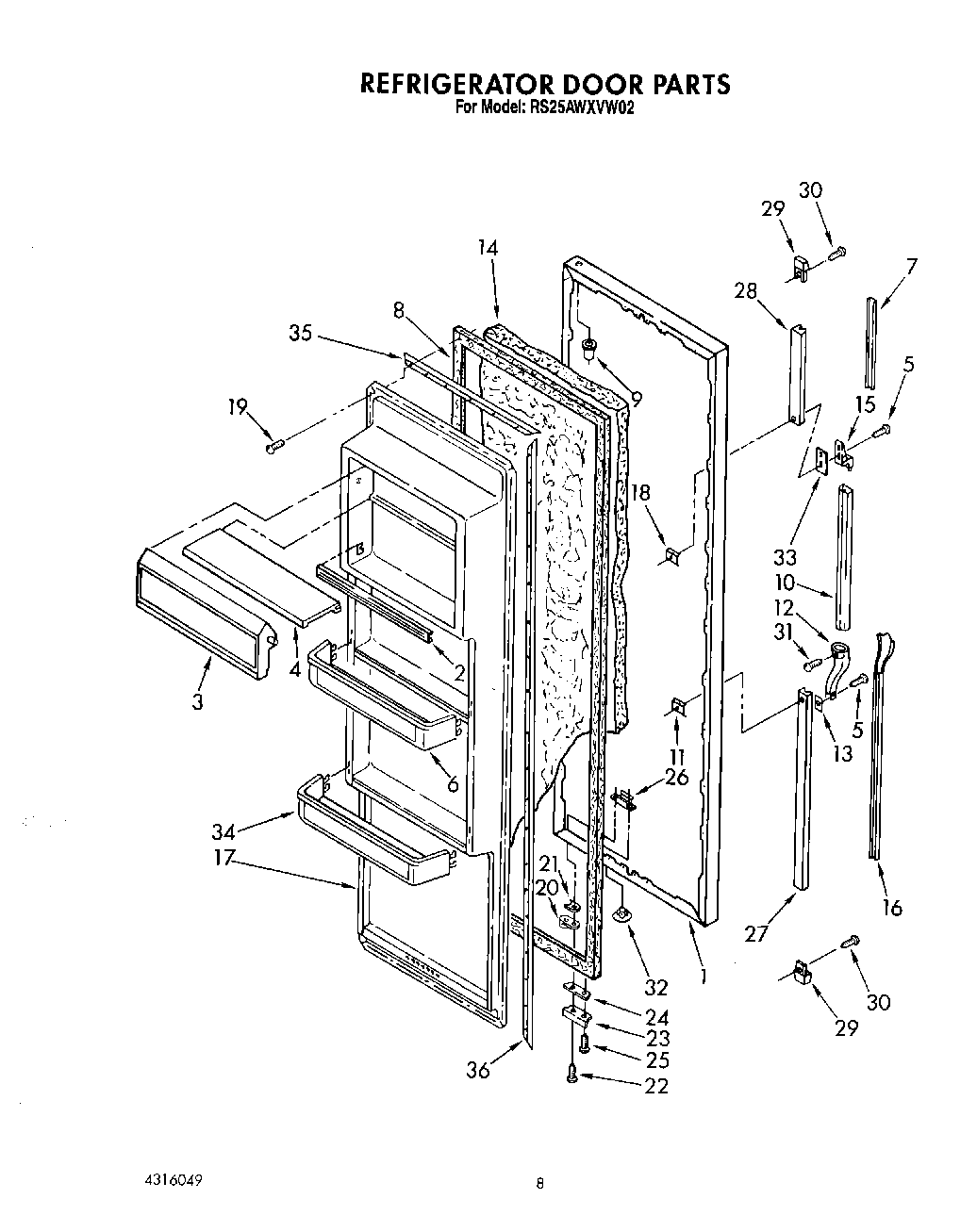

RS25AWXVW02 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (White)
1	Refrigerator Door (Almond (Also Order Item 14))
2	Trim, Shelf
3	Door, Compartment
4	Shelf, Compartment
5	WP488729 Whirlpool Refrigerator Door Screw
6	Trim, Door Shelf
7	Insert, Handle
8	Door Gasket, Magnetic (Repair) (Mist Beige)
9	Cap, Hinge Sleeve (2)
10	Handle, Center
11	Screw Anchor (2)
12	Handle End, Side
13	Shim
14	WPL 876029
15	End Cap
16	Insert, Extension
17	Panel, Interior
18	WP939101 Whirlpool Refrigerator Plate
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
24	Shim
25	Screw, 89 x 5/8
26	Tap Plate
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap
30	Screw
31	Screw
32	Hole Plug (2)
33	Shim, Handle
34	Trim, Shelf
35	Gasket Retainer, Top & Bottom
36	Panel Kit. See Kit 4211287 For Individual Parts
36	Gasket Retainer, Side (2)
