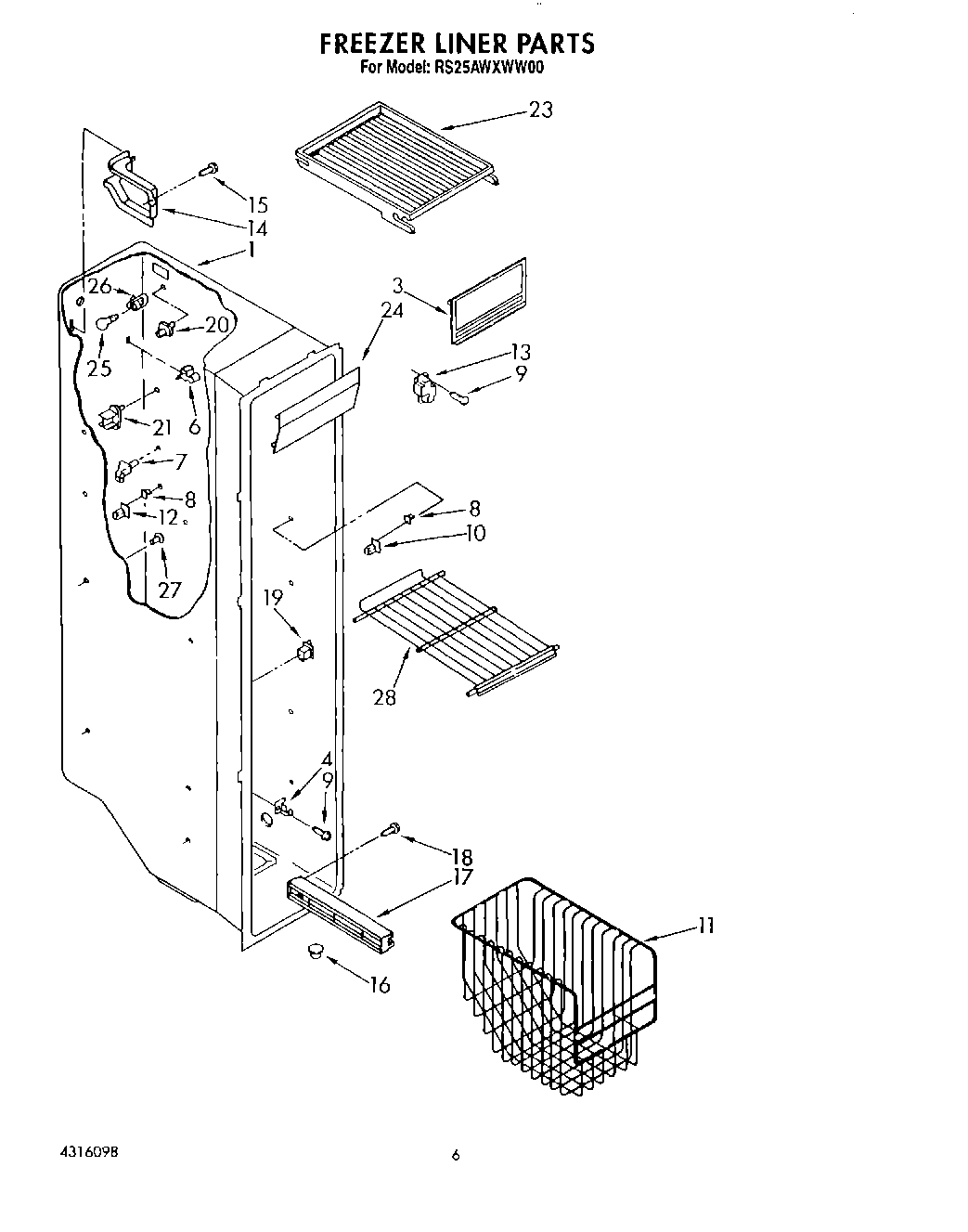

RS25AWXWW00 05 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
3	Door, Ice Compartment
4	Evaporator, Support
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
9	SCREW
9	WP489478 Whirlpool Refrigerator Screw
10	Stud, Front R.S.
11	Basket, Slope
12	Stud, Rear R.S.
13	Terminal Block, Multiple
14	Wiring Cover
15	WP488729 Whirlpool Refrigerator Door Screw
16	Fitting, Drain
17	Shelf Track, (Left Side)
17	Shelf Track, (Right Side)
18	W11693756 Whirlpool Screw Assembly
20	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
21	Stud, Shelf (4)
23	Shelf, Top Compartment
24	Light Lens
25	RANGE ONLY 40W 120V APPL BULB
26	4387478 Whirlpool Refrigerator Light Socket
27	Grommet (8)
28	Shelf (3)
