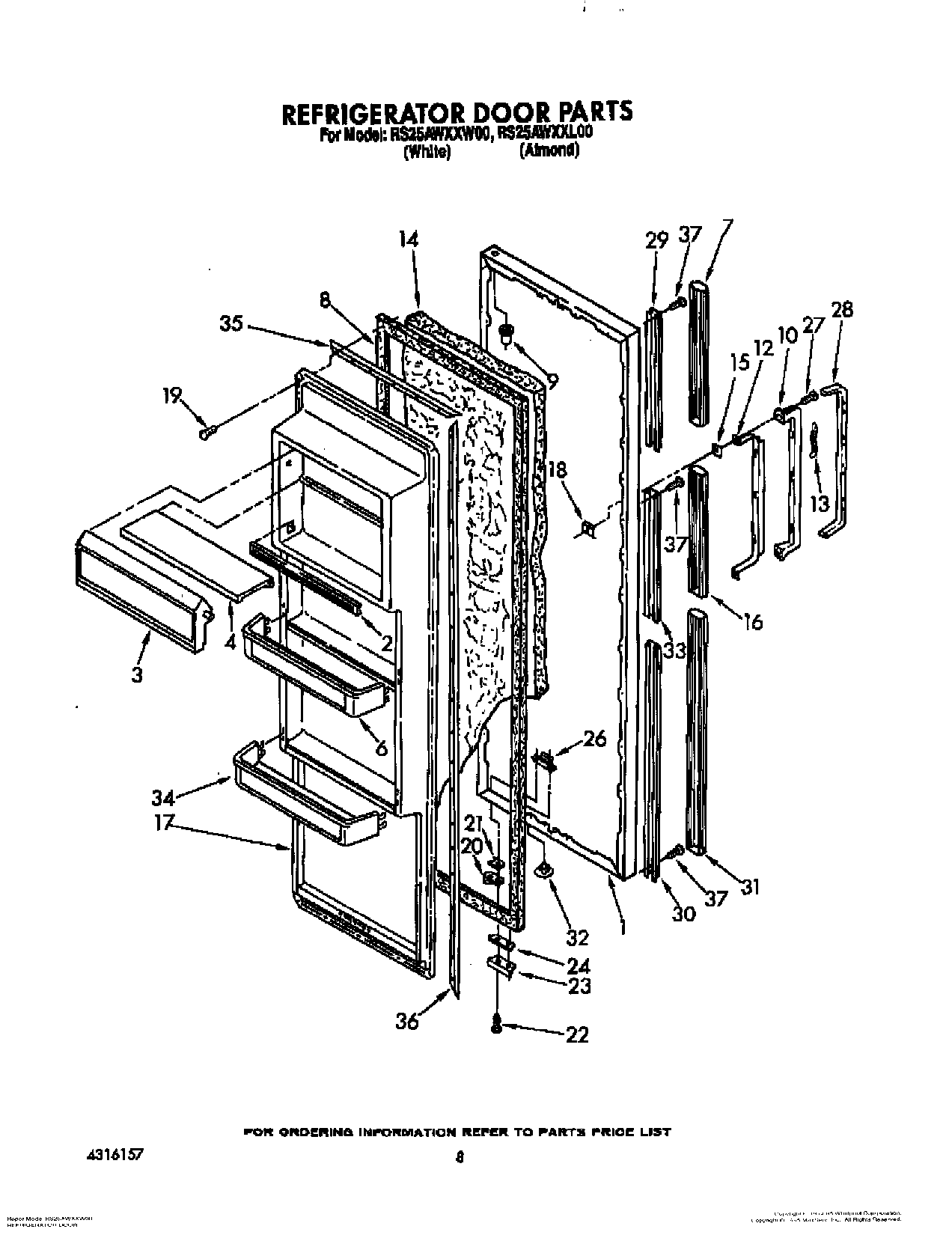

RS25AWXXW00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Also Order Item 39) (Almond)
1	Refrigerator Door (Also Order Item 39) (White)
2	Trim, Shelf
3	Door, Compartment
4	Shelf, Compartment
6	Trim, Door Shelf
7	Extension (Top) (For Almond Model)
8	Door Gasket, Magnetic (Repair) (Mist Beige)
9	Cap, Hinge Sleeve (2)
10	Handle (For Almond Model)
12	Reinforcement, Handle
13	Clip, Handle
14	WPL 876029
15	Shim
16	Extension, Middle
17	Panel, Interior
18	WP939101 Whirlpool Refrigerator Plate
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
24	Shim
26	Tap Plate
28	Insert, Handle
29	Retainer (Top)
30	Retainer (Bottom)
31	Extension (Bottom)
32	Hole Plug (2)
33	Retainer, Middle
34	Trim, Shelf
35	Gasket Retainer, Top & Bottom
36	Gasket Retainer, Side (2)
37	WP489478 Whirlpool Refrigerator Screw
37	Panel Kit. See Kit 4211287 For Individual Parts
