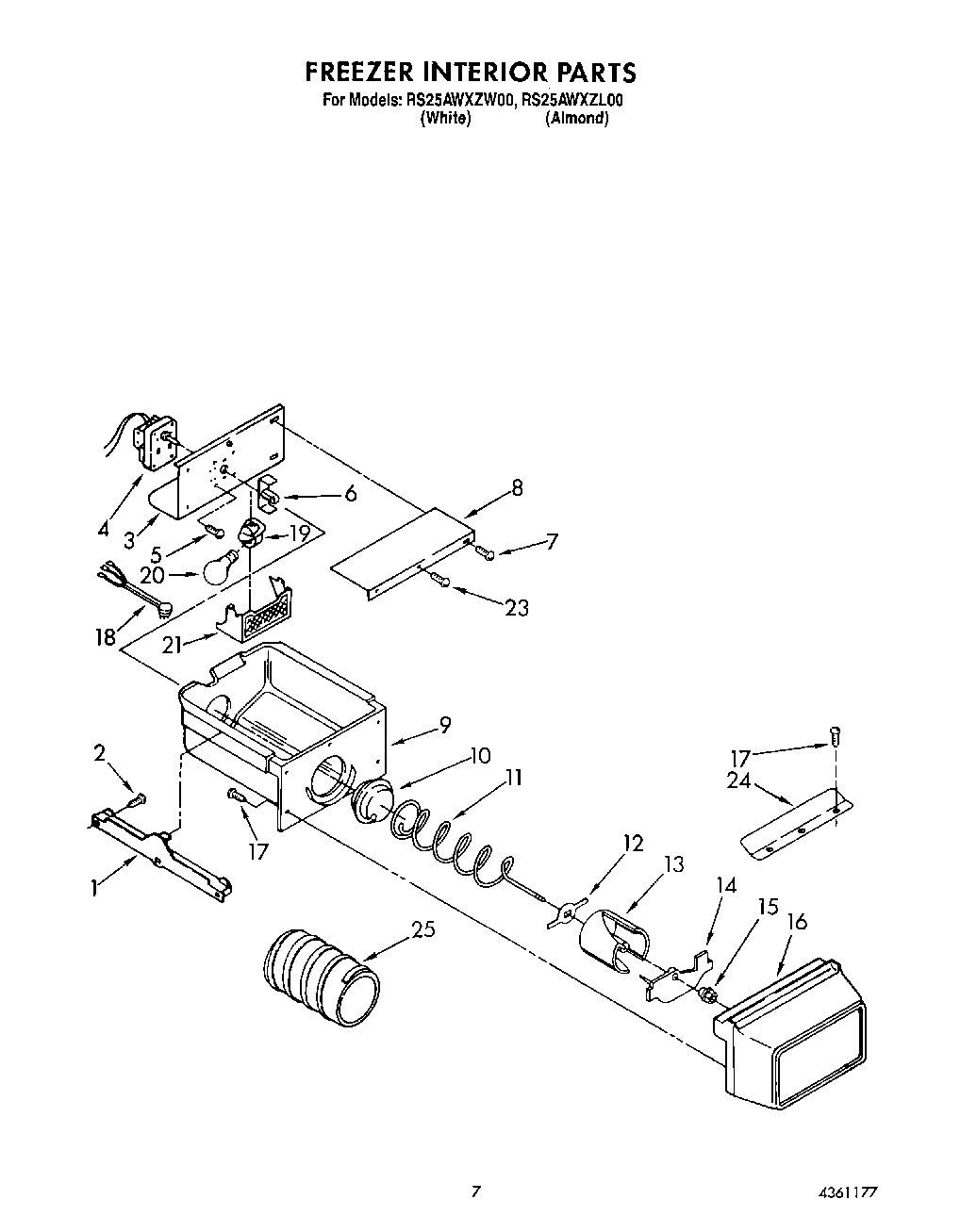

RS25AWXZL00 06 – FREEZER INTERIOR

Products

Position	Product
1	W10845585 Whirlpool Refrigerator Track
1	W10845583 Whirlpool Refrigerator Track
2	718257 Whirlpool Dishwasher Screw
3	Bracket, Ice Dispenser
4	Motor
5	303776 Whirlpool Dishwasher Screw
6	COUPLING AUGER MOTOR
7	WP489478 Whirlpool Refrigerator Screw
8	Cover, Motor
9	WPW10670845 Whirlpool Refrigerator Ice Container
10	W10749708 Whirlpool Refrigerator Coupling
11	Conveyor
12	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
14	Baffle
15	Nut, Bearing
16	Front Cover
17	WP488787 Whirlpool Refrigerator Screw
18	Wiring Assembly, Ice Dispenser
19	4387478 Whirlpool Refrigerator Light Socket
20	RANGE ONLY 40W 120V APPL BULB
21	Lens, Dispenser Light
23	WP489128 Whirlpool Refrigerator Screw
24	Deflector, Ice Container
25	4317870 Whirlpool Refrigerator Auger Sleeve
