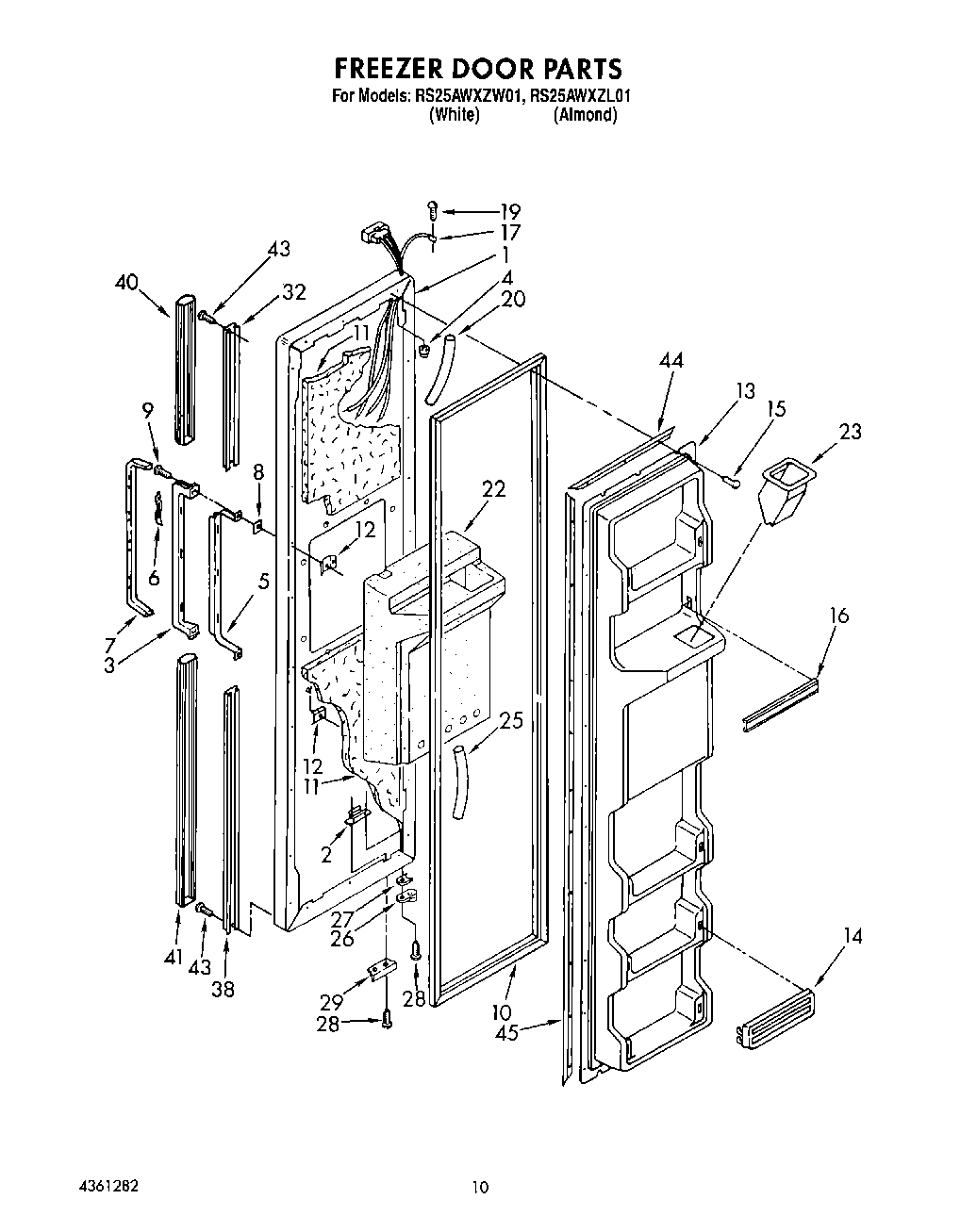

RS25AWXZW01 08 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (White)
1	Freezer, Door Panel (Almond (Also Order Item 11))
2	Tap Plate
3	Handle (For Almond Model)
4	Seal, Hinge Pin
5	Reinforcement, Handle
6	Clip, Handle
7	Insert, Handle
8	Shim
10	Door Gasket, Magnetic (For Almond Model)
11	WPL 876029
12	WP939101 Whirlpool Refrigerator Plate
13	Panel, Interior Door
14	Trim, Door Shelf
16	Trim, Door Shelf
17	Harness, Door (Includes Item 18)
19	WP488234 Whirlpool Air Conditioner Screw
20	Tube, Door Wiring
22	Insulation, Dispenser
23	Chute, Ice
25	Tube, Door Wiring
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
27	WP1104787 Whirlpool Refrigerator Shim
28	WP489069 Whirlpool Compactor Screw
29	Bracket, Door Stop
32	Retainer (Top)
38	Retainer (Bottom)
40	Extension (Top) (For Almond Model)
41	Extension (Bottom)
43	WP489478 Whirlpool Refrigerator Screw
44	Gasket Retainer, Top & Bottom
45	Gasket Retainer, Side (2)
