RS25CFXTQ01 09 – UNIT PARTS

RS25CFXTQ01 09 – UNIT PARTS

Written by

in

RS25CFXTQ01 09 – UNIT PARTS

Products

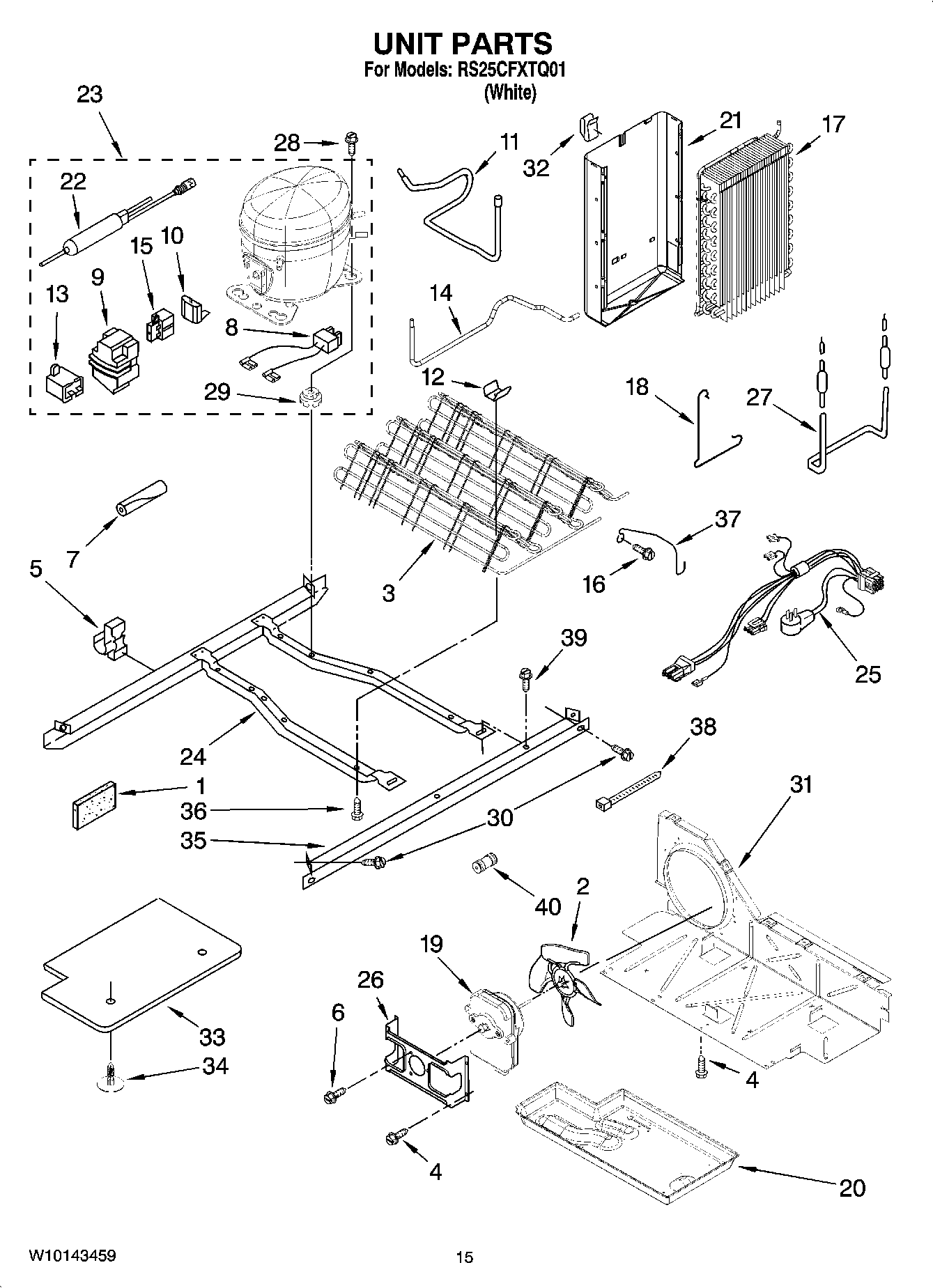

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
8	WP2172890 Whirlpool Refrigerator Wire
9	WP2162358 Whirlpool Refrigerator Terminal Cover
10	WP2154697 Whirlpool Refrigerator Overload
11	WP2205765 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	2261599 Whirlpool Refrigerator Tube
15	W10920279 Whirlpool Refrigerator Start Relay
15	WP2262181 Whirlpool Refrigerator Start Relay
16	WP489478 Whirlpool Refrigerator Screw
17	WP2188823 Whirlpool Refrigerator Evaporator
18	Clamp
19	WP2188874 Whirlpool Refrigerator Condenser Motor
20	WPW10614158 Whirlpool Refrigerator Evaporator Tray
21	Heat Shield
22	WPW10143759 Whirlpool Dryer Filter
22	W10843121 Whirlpool Refrigerator Tube
23	W10309994 Whirlpool Refrigerator Compressor
24	2304904 Whirlpool Frame Assembly
25	Unit, Harness (Includes Power Cord)
26	WP2181929 Whirlpool Refrigerator Bracket
27	WP2323198 Whirlpool Refrigerator Heater
29	876811 Whirlpool Grommet
29	WP4387558 Whirlpool Refrigerator Compressor Grommet
30	489340 Whirlpool Refrigerator Screw
31	W10896764 Whirlpool Refrigerator Air Baffle
32	Clip, Heat Shield
33	Unit Cover, Bottom
34	489396 Whirlpool Refrigerator Clip
35	2305374 Whirlpool Refrigerator Unit Rail
36	W11544659 Whirlpool Refrigerator Screw
37	Guard, Fan
38	WPW10339879 Whirlpool Wire Tie
39	WP489427 Whirlpool Refrigerator Screw
40	VALVE, ACCESS (5/8“)
40	Following Parts Not Illustrated and Optional Parts Not Included
40	WP4373559 Whirlpool Fitting
40	978026 Whirlpool Refrigerator Primary Valve
40	978027 Whirlpool Refrigerator Primary Valve
40	978030 Whirlpool Refrigerator Valve
40	WP978025 Whirlpool Refrigerator Valve
40	VALVE, ACCESS (1/2“)
40	876764 Whirlpool Refrigerator Primary Valve
40	REFRIGERANT CHARGE 5.0 oz. (R-134A)
