RS2622SW 06 – HINGES

RS2622SW 06 – HINGES

Written by

in

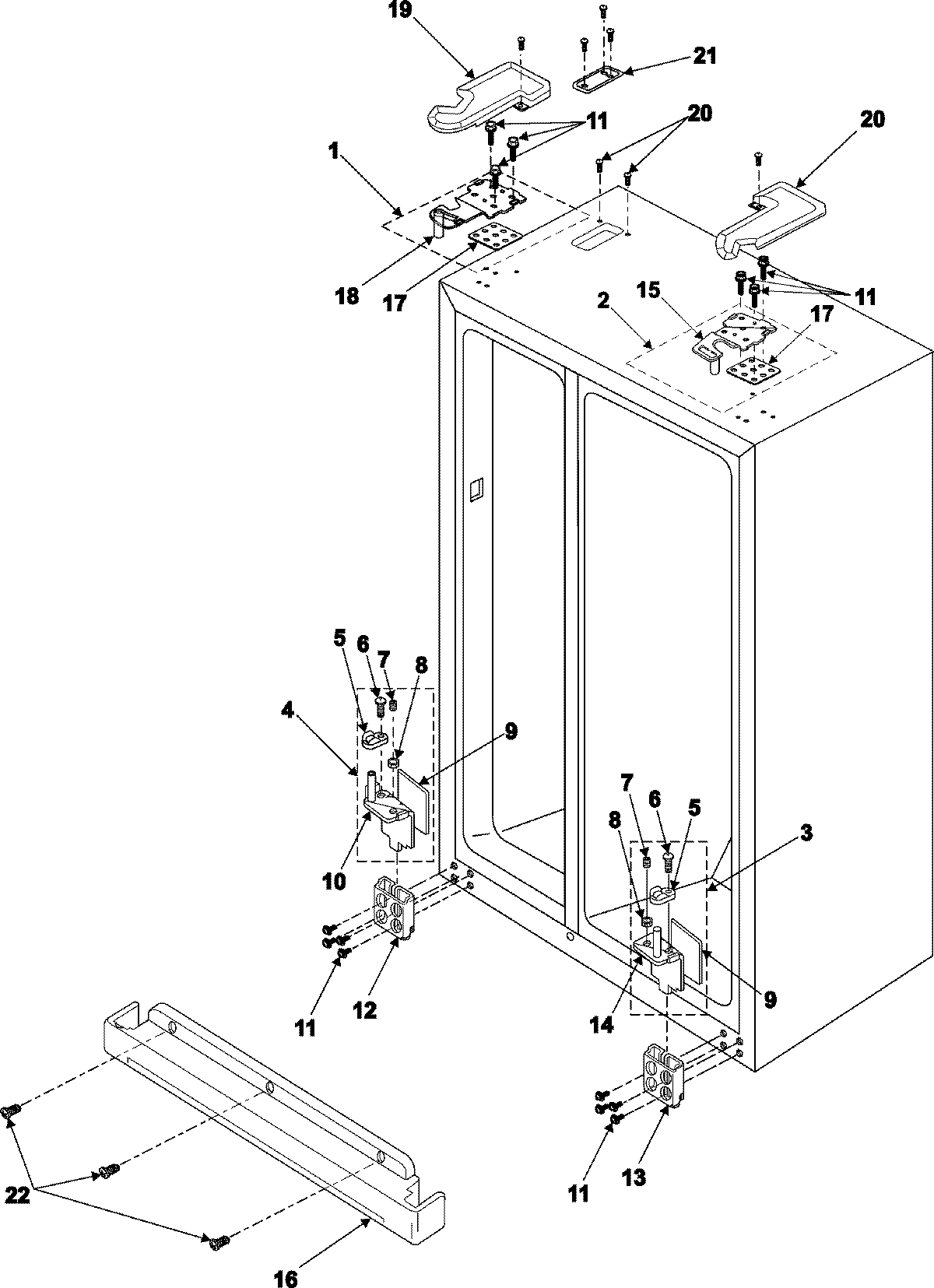

RS2622SW 06 – HINGES

Products

PositionProduct
1MAY DA97-02278B
2MAY DA97-02279D
3MAY DA97-01763D
4MAY DA97-01760G
5MAY DA66-00344A
7MAY 6011-001442
8MAY 6021-001125
9SEE NOTE GROUND WIRE, GREEN
10MAY DA61-01607C
11MAY 6009-001255
12MAY DA97-02241B
13MAY DA97-02242B
14MAY DA61-01608B
15MAY DA61-01877D
16MAY DA63-00822L
17MAY DA63-50192A
18MAY DA61-01876D
19MAY DA63-02233J
20MAY DA63-02234J
21MAY DA63-01275A
22MAY 6002-000213
