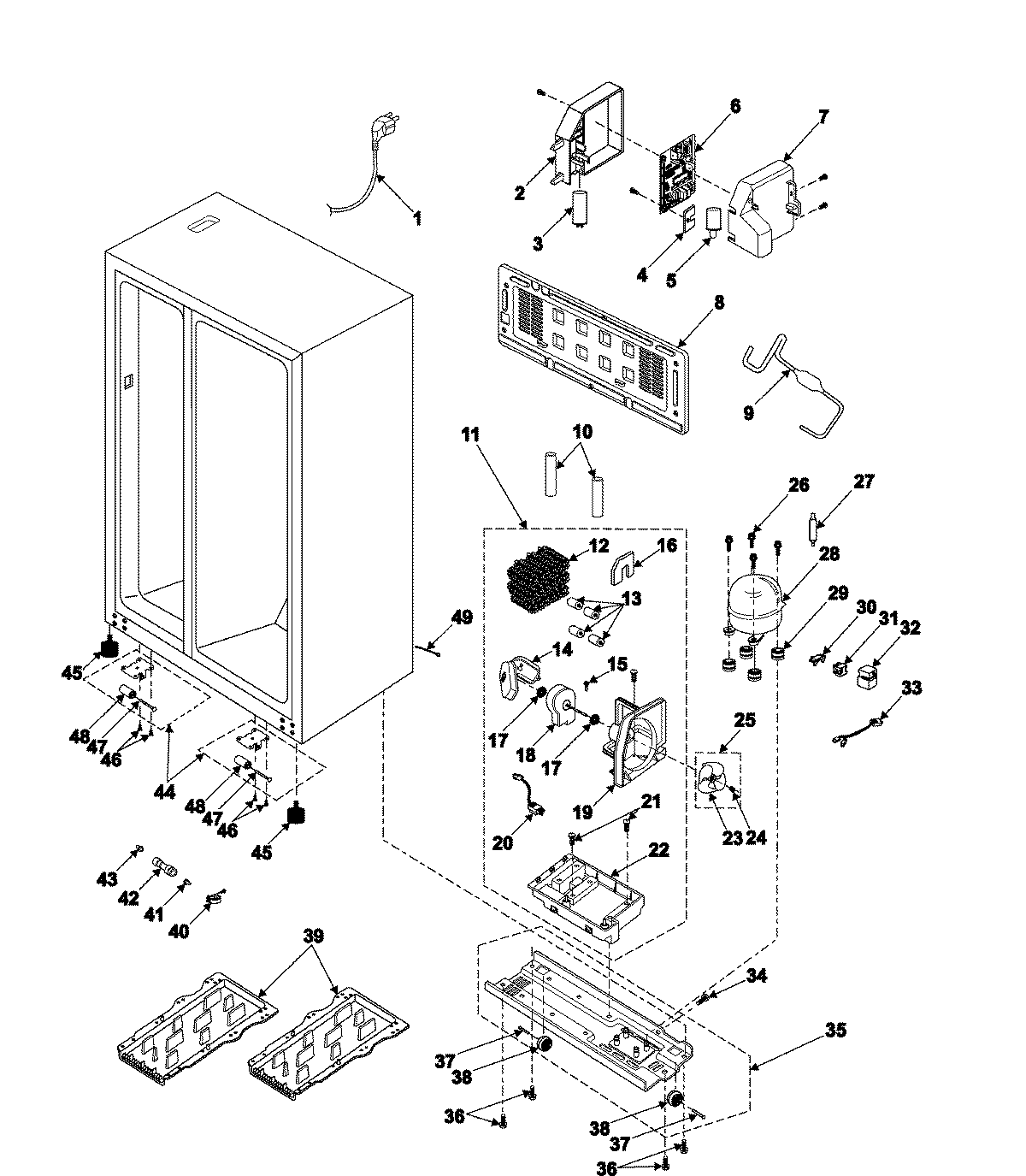

RS2622SW 09 – MACHINE COMPARTMENT & CABINET BACK

Products

Position	Product
1	MAY DA39-10165E
2	MAY DA61-00261C
3	MAY 2501-001045
5	MAY DA27-00002A
7	MAY DA63-00783A
8	MAY DA63-01135A
9	DA97-00918A Samsung Refrigerator Assembly Pipe Connect
10	MAY DA62-20001P
11	MAY DA97-01285C
12	MAY DA97-00259G
13	MAY DA63-40171B
14	MAY DA63-00713A
15	MAY DA63-40167A
16	MAY DA72-60040D
17	MAY DA63-01146A
18	DA31-00146B REF CONDENSER FAN MOTOR
19	MAY DA61-00415A
20	MAY DA96-00042A
21	MAY 6009-001252
22	MAY DA66-00034A
24	MAY DA61-20128A
25	DA31-00010D Samsung Refrigerator Fan Blade
26	MAY DA60-20008A
27	MAY DA73-30102B
28	MAY W10126766
29	MAY DA63-02017A
30	MAY DA34-10003S
31	MAY DA35-10013Q
32	MAY DA63-01866A
33	MAY DA39-00084D
34	MAY DA60-10107A
35	DA97-00555D Samsung Refrigerator Assembly Chassis Compressor
36	MAY DA60-10004A
37	MAY DA60-90146A
40	MAY 6502-000112
41	MAY DA71-20208A
42	DA62-00224B Samsung Refrigerator Valve Check
43	MAY DA71-20207A
44	SEE NOTE GROUND WIRE, GREEN
45	MAY DA61-30102A
46	MAY DA60-10122C
47	MAY DA61-01920A
48	MAY DA61-01871A
49	MAY DA39-20389E
