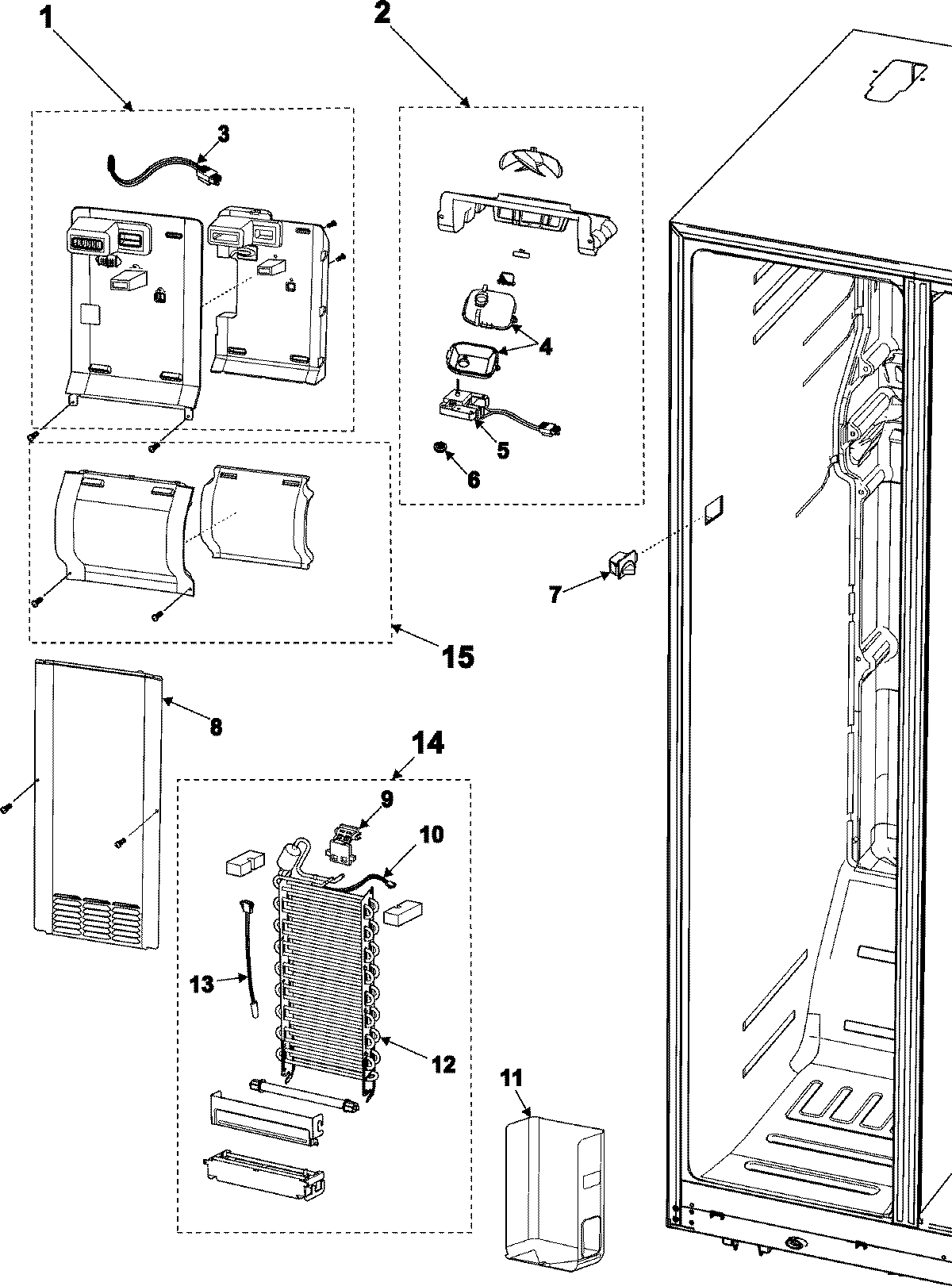

RS2623VQ 03 – FREEZER COMPARTMENT

RS2623VQ 03 – FREEZER COMPARTMENT

Written by

in

RS2623VQ 03 – FREEZER COMPARTMENT

Products

PositionProduct
1MAY DA97-02045A
2MAY DA97-01948A
4MAY DA63-01283C
5DA31-00103A Samsung Refrigerator Fan Motor IS27210SCD6
6MAY DA63-40119A
7MAY DA34-10120E
8MAY DA97-02056B
9MAY DA61-00603A
10DA47-10160F Samsung Refrigerator Bimetal Thermostat Protector
11MAY DA67-01018B
12MAY DA59-00314A
13MAY DA32-00006D
14SEE NOTE GROUND WIRE, GREEN
15MAY DA97-02055A
