RS2630SH 03 – FREEZER COMPARTMENT

RS2630SH 03 – FREEZER COMPARTMENT

Written by

in

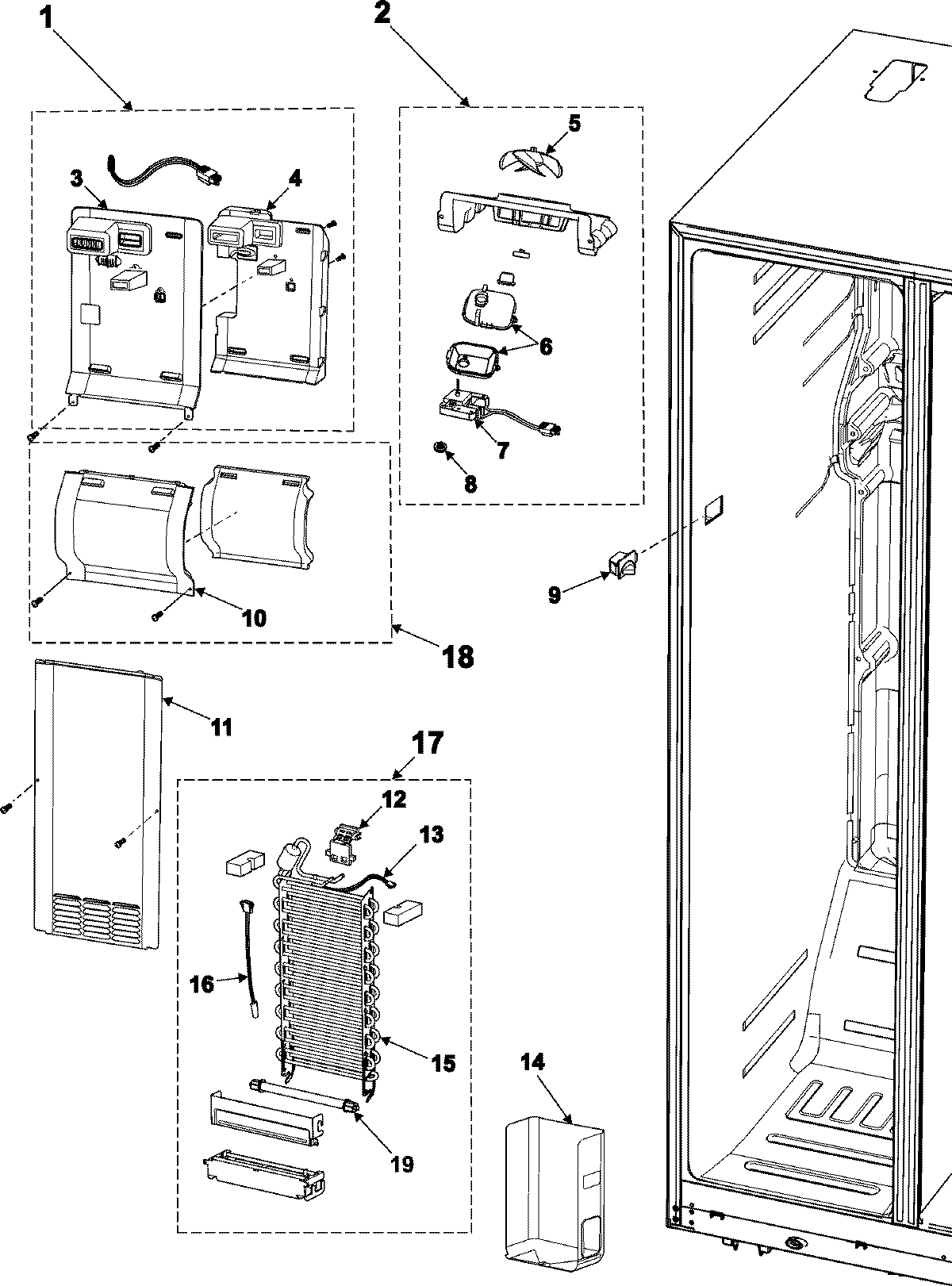

RS2630SH 03 – FREEZER COMPARTMENT

Products

PositionProduct
4MAY DA97-02045A
5MAY DA97-01948A
6MAY DA63-01283C
7DA31-00103A Samsung Refrigerator Fan Motor IS27210SCD6
8MAY DA63-40119A
9MAY DA34-10120E
11MAY DA97-02056B
12MAY DA61-00603A
13DA47-10160F Samsung Refrigerator Bimetal Thermostat Protector
14SEE NOTE GROUND WIRE, GREEN
16MAY DA32-00006D
17MAY DA59-00314A
18MAY DA97-02055A
19DA47-00154A Samsung Defrost Heater
