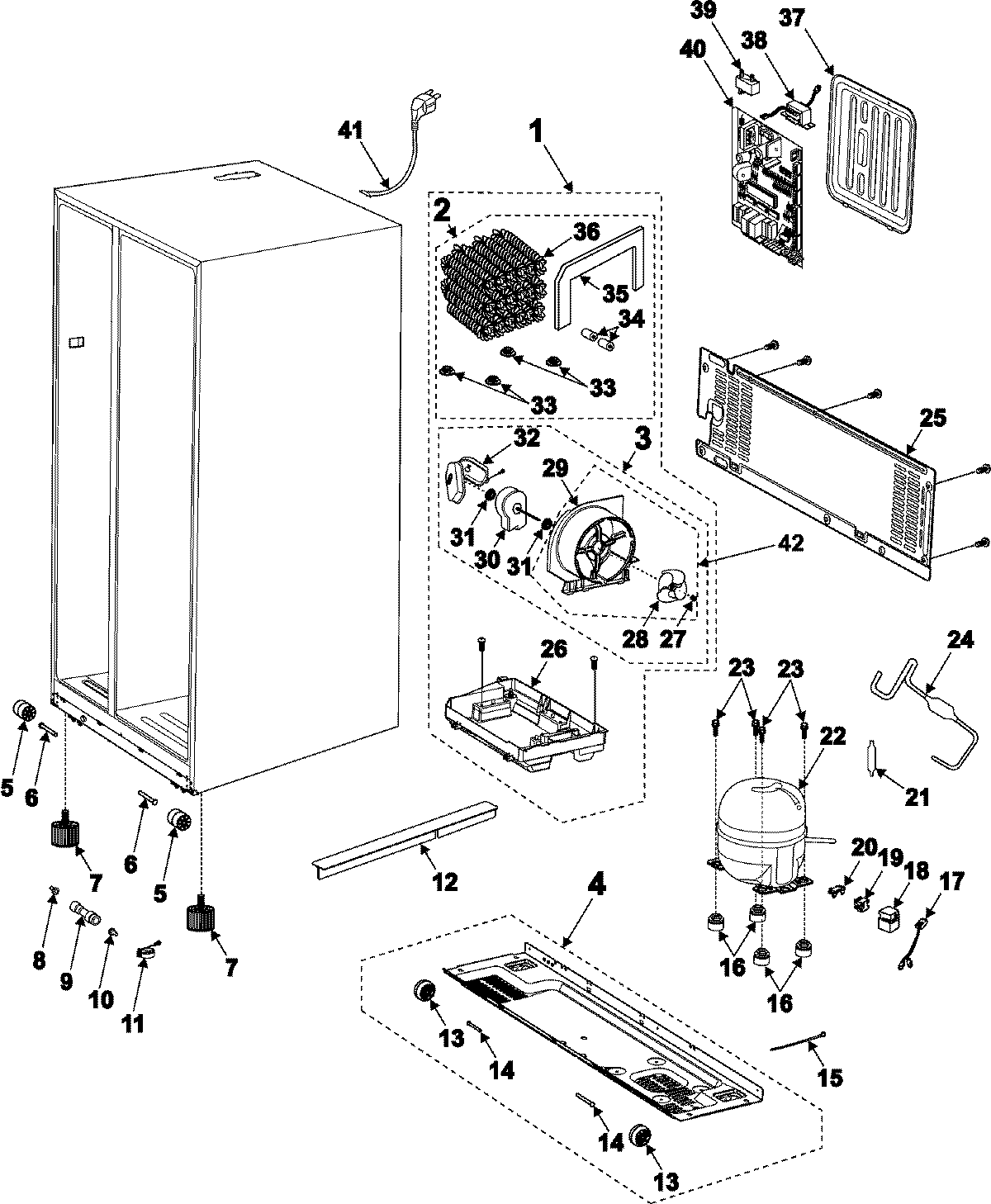

RS2630WW 09 – MACHINE COMPARTMENT-COMPRESSOR

Products

Position	Product
2	MAY DA97-02091A
3	MAY DA97-01949A
5	MAY DA61-40115A
6	MAY DA60-90124A
7	MAY DA61-30102A
8	MAY DA71-20207A
9	MAY DA62-20111C
10	MAY DA71-20208A
11	MAY DA65-20110B
14	MAY DA60-90146A
15	MAY DA39-20389E
16	MAY DA63-02017A
17	MAY DA39-00084D
19	MAY DA34-10003S
20	MAY DA35-10013Q
21	MAY DA73-30102B
22	MAY W10126766
23	MAY DA60-20008A
24	DA97-00918A Samsung Refrigerator Assembly Pipe Connect
25	MAY DA97-01947B
26	MAY DA97-02018A
27	MAY DA61-20128A
28	DA31-00010D Samsung Refrigerator Fan Blade
29	MAY DA61-01634B
30	DA31-00103A Samsung Refrigerator Fan Motor IS27210SCD6
31	MAY DA63-40119A
32	MAY DA63-01283C
33	MAY DA63-02205A
34	MAY DA63-40171B
35	MAY DA72-60040D
36	MAY DA60-90136A
37	SEE NOTE GROUND WIRE, GREEN
38	MAY DA26-00022B
39	MAY 2501-001045
40	MAY DA41-00219H
41	MAY DA39-10165E
42	MAY DA97-01948A
