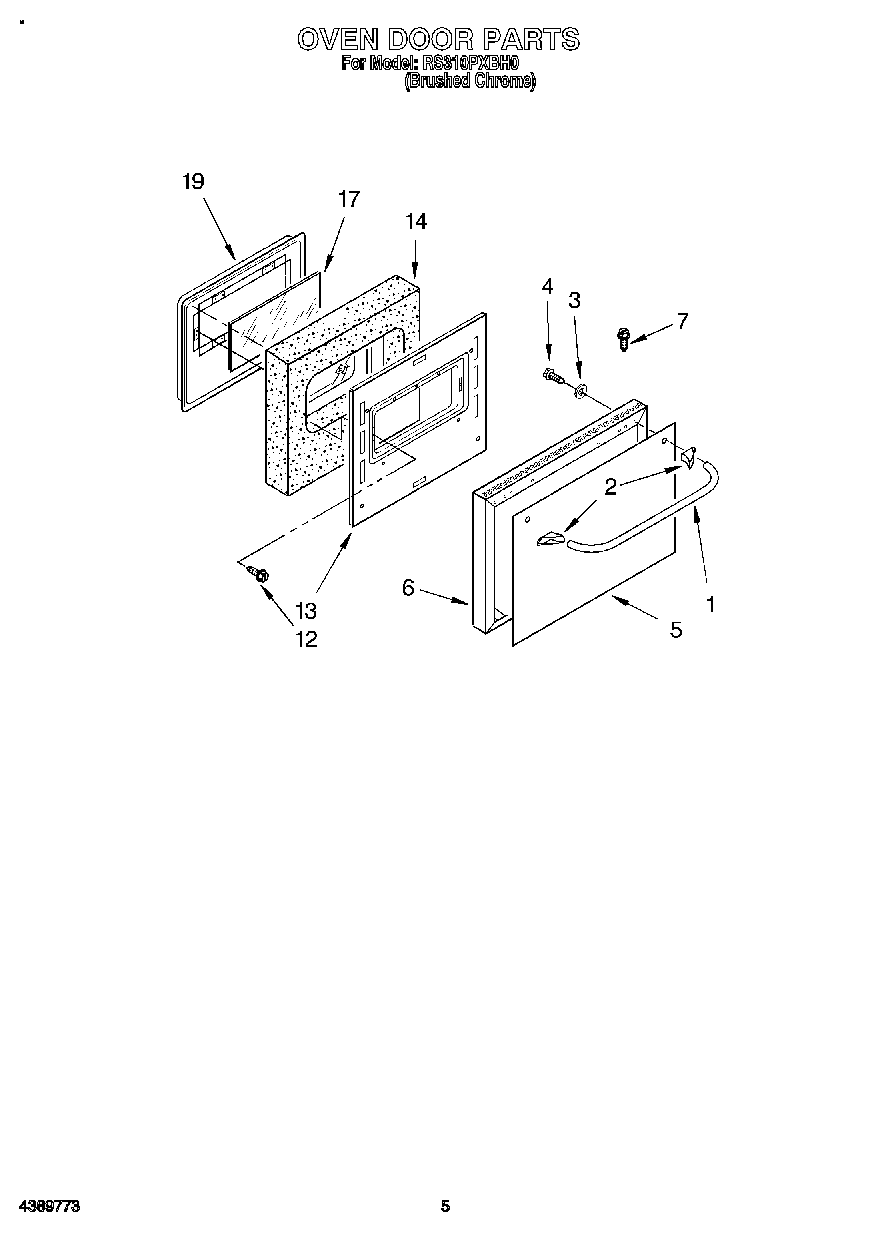

RS310PXBH0 03 – SECTION

Products

PositionProduct
1Handle, Oven Door (Black)
2Endcap, Handle (2) (Black)
3Spacer, Handle (2)
4Screw, Handle (4)
5Glass, Door Front
6Frame, Oven Door
7Screw, Trim (6) (Black)
12Screw, Liner
13Retainer, Insulation
14Insulation, Door
17Glass, Inner
19Liner, Door
