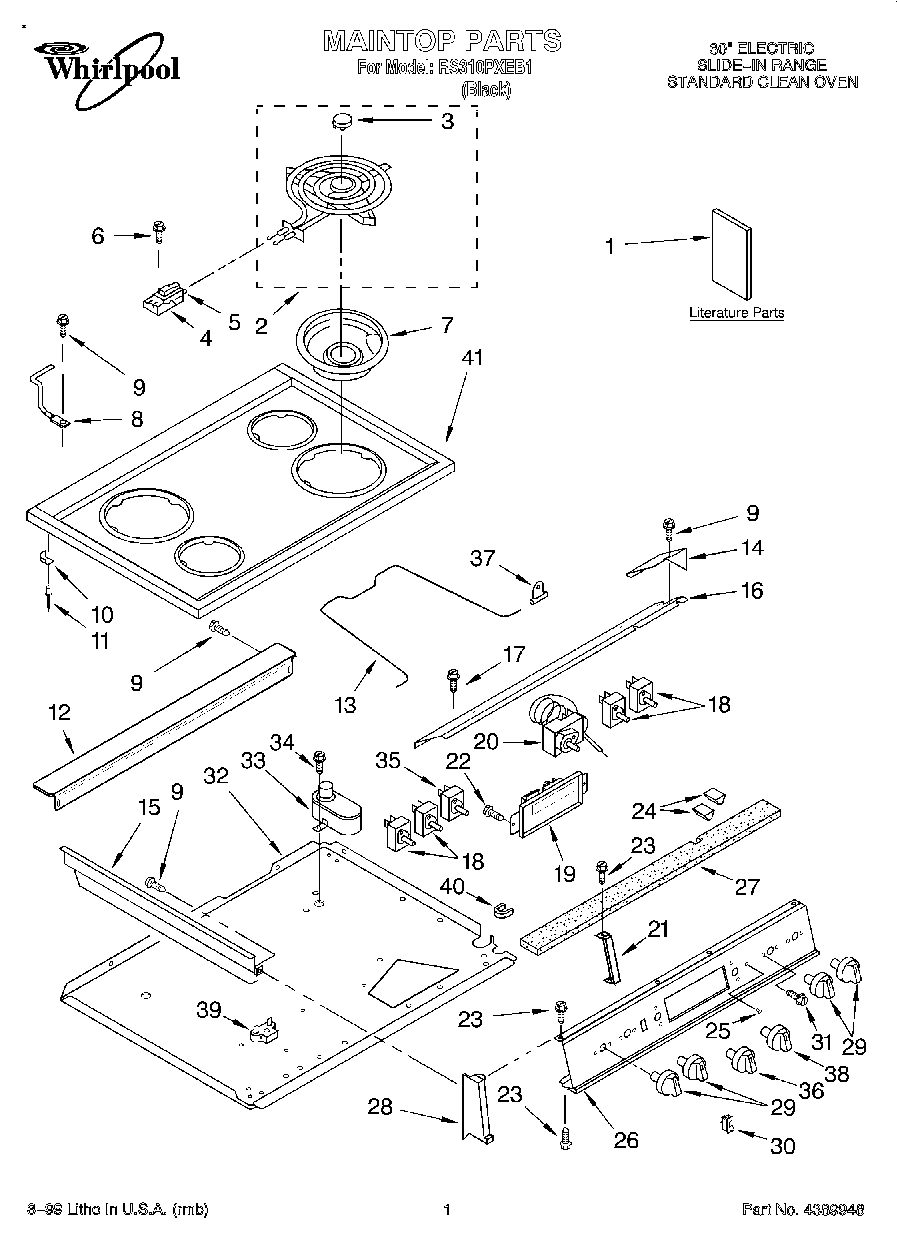

RS310PXEB1 01 – SECTION

Products

Position	Product
1	WPL LIT4389865
1	WPL LIT4389354
2	WP660533 Whirlpool Oven 8" Surface Element
2	WPY04100165 Whirlpool Surface Element
3	Medallion (4)
4	BURNER RECEPTACLE KIT
5	WP4332752 Whirlpool Clip
6	Screw, Term Block
7	Bowl, Burner (8“ Chrome)
7	Bowl, Burner (6“ Chrome (3))
8	Hinge, Cooktop (Left)
8	Hinge, Cooktop (Right)
9	WP308685 Whirlpool Microwave Screw
10	Bracket, Hinge (2)
11	Screw, Hinge Brkt.
12	Filler, Backsplash (Black)
13	Rod, Top Support
14	Cover, Wire
15	Extension, Side (2)
16	Cover, Wire
18	W10900107 Whirlpool Oven Surface Element Switch
19	Clock
20	Thermostat
21	Bracket, Clock (2)
22	Screw
23	SCREW
24	Light, Indicator (Oven)
24	Light, Indicator (Surface)
25	WP9750343 Whirlpool Light Lens
26	Panel, Control
27	Insulation, Panel
28	Endcap (Black Left Hand)
28	Endcap (Black Right Hand)
29	Knob, Control (4)
30	Switch, Oven Lite
31	Screw, Mtg. (8)
32	Bottom, Burner Box
33	Vent Tube Assy.
34	Screw
35	Switch, Selector
36	Knob, Selector
37	Brkt, Support Rod
38	Knob, Thermostat
39	Resistor
40	Grommet (Hose (2))
40	Grommet (Top)
41	Cooktop (Black)
