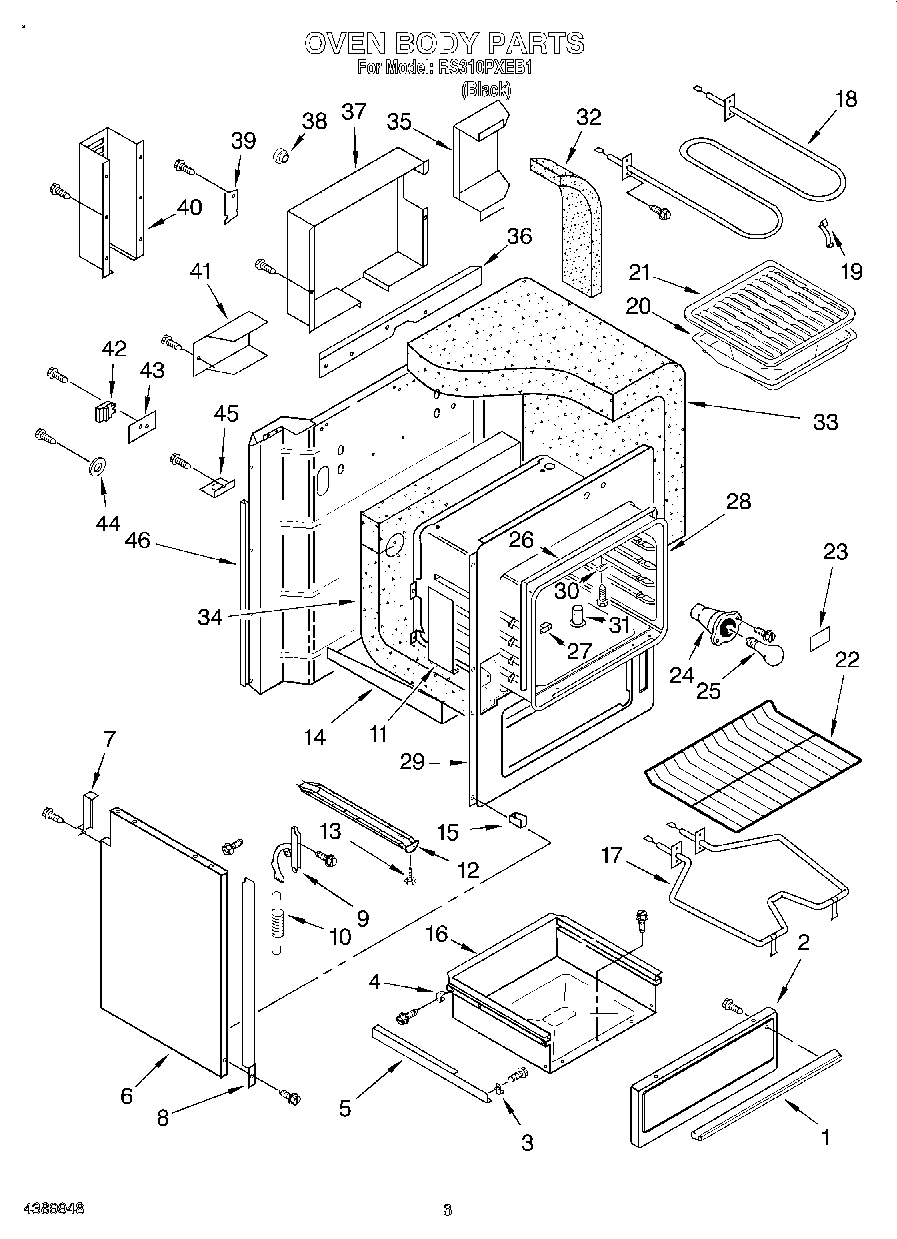

RS310PXEB1 02 – SECTION

Products

Position	Product
1	Handle, Drawer
1	Screw (2)
2	Panel, Drawer (Black)
3	WPL 4389477
3	Screw, Liner
4	WPL 4389537
4	WPL 4389476
5	WPL 4389470
6	Panel, Bodyside (Right Side)
6	Panel, Bodyside (Left Side)
7	Filler, Rear (2)
8	Trim, Side (Black Left Hand)
8	Trim, Side (Black Right Hand)
9	Screw, Hinge (6)
9	Hinge, Oven Door (Right)
9	Hinge, Oven Door (Left)
10	Spring, Oven Door
11	Retainer, Side (2)
12	Rail, Base (Includes No. 42)
13	Screw, Leveler (4)
14	Retainer, Lower
15	Spacer (4)
16	Drawer, Storage
17	WB44K5012 GE Oven Bake Element
18	WP4334925 Whirlpool Broil Element
19	Support, Broil (3)
20	4396923 Whirlpool Broil Pan Set Gray Porcelain
22	Rack, Oven (2)
23	Screw (8)
23	Plug, Button
24	WPL 4389536
24	Housing, Lite
25	RANGE ONLY 40W 120V APPL BULB
26	Seal, Oven Door
27	Clip, Thermo Bulb
28	Body, Oven
29	Frame, Front
30	Washer
31	Tube, Vent
32	Insulation, Top & Side (2)
33	Insulation, Wrap
34	Insulation, Back & Bottom
35	Shield, Wire
36	Shield, Wire
37	Shield, Upper
38	Bushing, Snap
39	Plate, Flue Cover
39	Screw
40	Cover, Upper Wire
41	Cover, Lite Wire
42	Bracket, Cord
43	Shield, Disconnect
43	Screw (2)
44	Screw, Retainer
44	Washer, Ground
45	WP308685 Whirlpool Microwave Screw
45	Plate, Cord Mtg.
46	WPL 4389662
46	WPL 4389611
46	WPL 4389471
46	WPL 4389749
