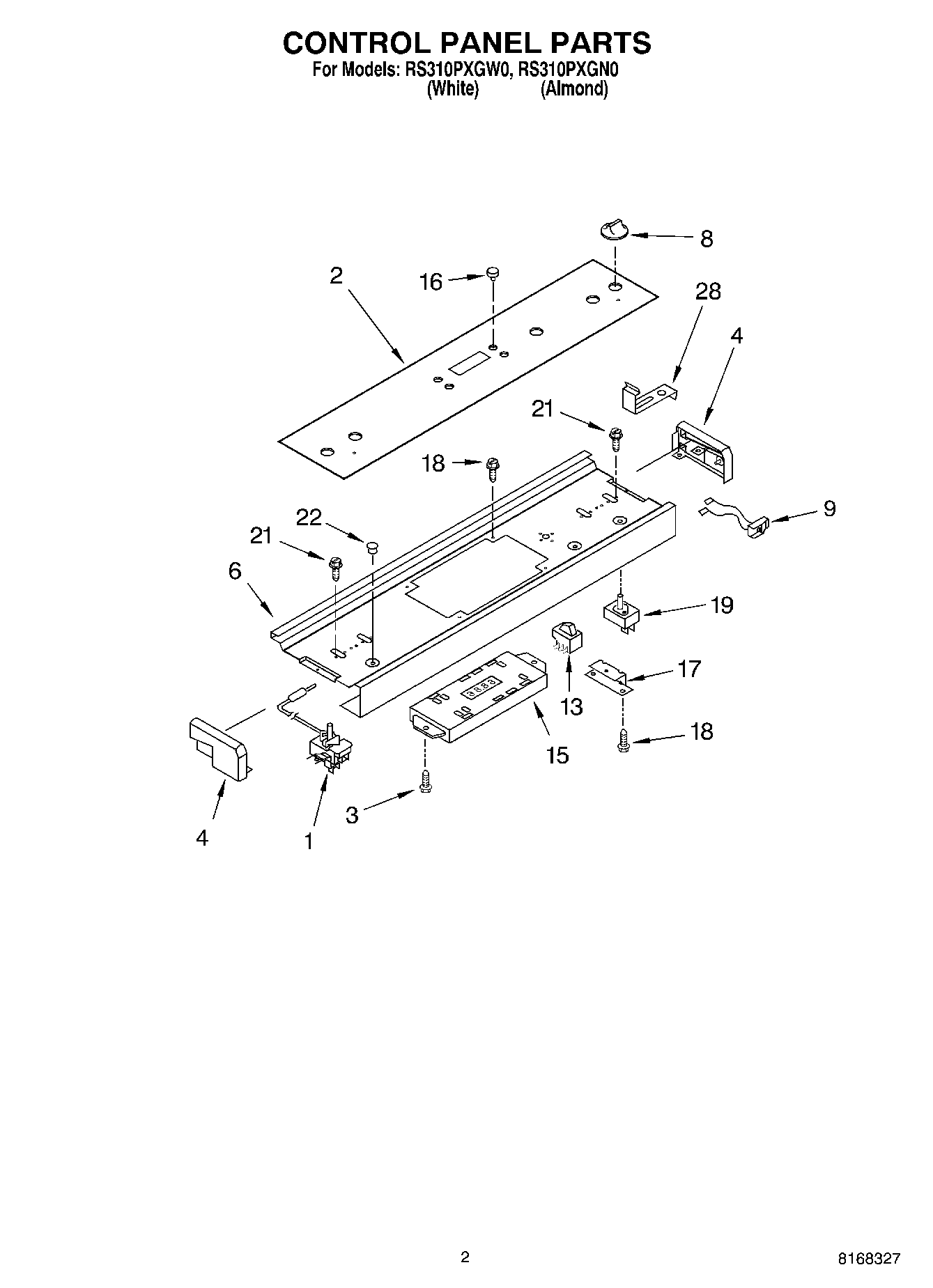

RS310PXGN0 02 – CONTROL PANEL

Products

Position	Product
1	Thermostat
2	Console-Glass (Control Panel)
4	End Cap Left (Black)
4	(End Cap Right) (Black)
6	Panel, Control (Black)
8	Knobs, Control (4) (Black)
9	Light Module (2)
13	Switch, Oven Light
15	Oven Control (Timer Assembly)
16	Knob, Timer (17) (Black)
17	WPL 9753304
18	WP4159387 Whirlpool Compactor Screw
19	WP9750643 Whirlpool Infinite Switch
19	WP9750646 Whirlpool Infinite Switch
20	WP3400882 Whirlpool Screw
21	Screw (2)
22	Len`s Indicator (4)
28	Clip, Glass (2)
