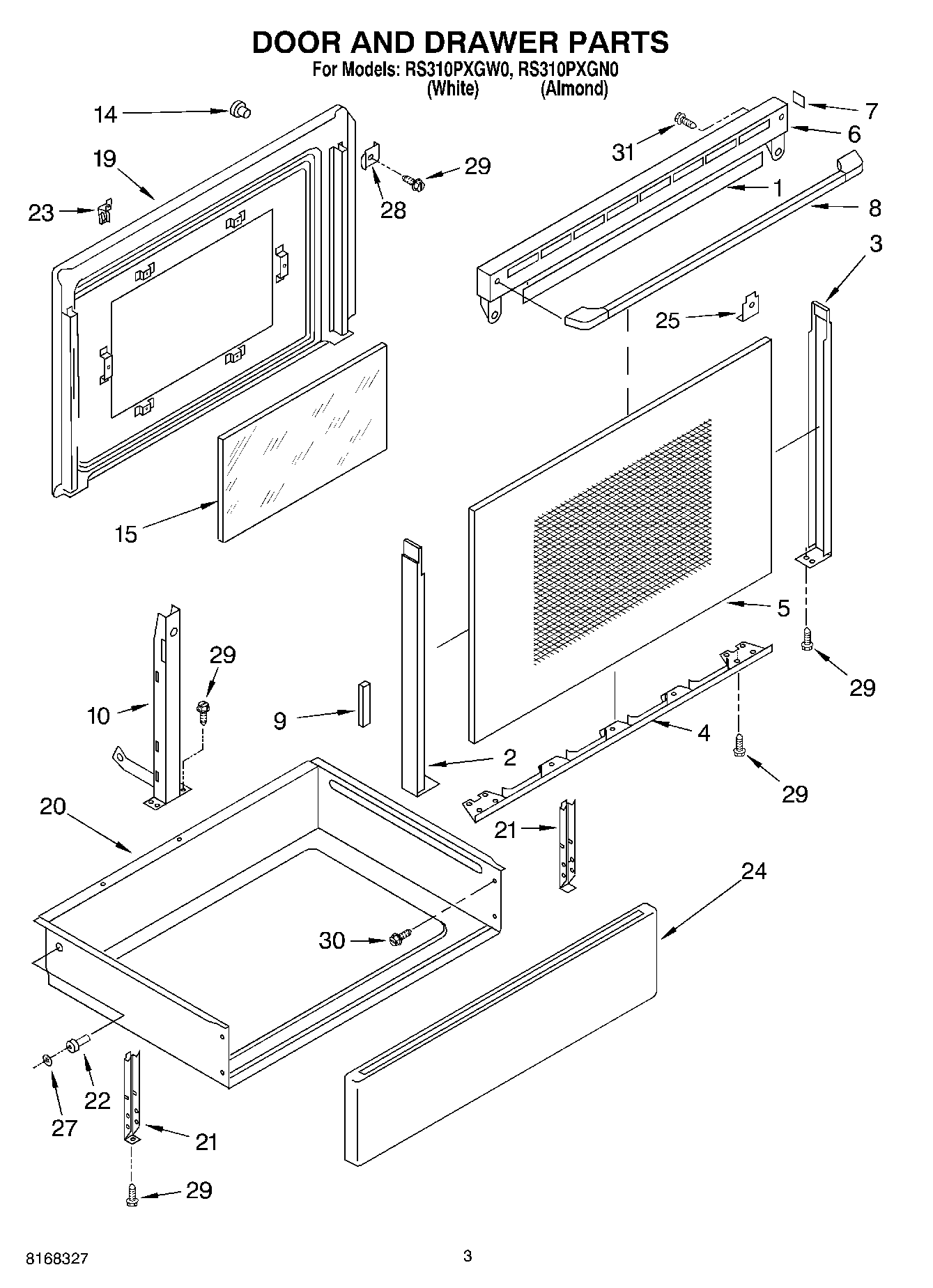

RS310PXGW0 03 – DOOR AND DRAWER

Products

Position	Product
1	Vent, Door (Gasket, Vent)
2	Trim, Door-Left (Black)
3	Trim, Door-Right (Black)
4	Trim, Door Bottom (Black)
5	Glass, Door (Black)
6	Vent, Door (Black)
7	Vent, Door (Seal, Door Vent Side)
8	Handle, Door (Black)
9	Gasket, Door Glass
10	Hinge, Door R or L
14	238614 Whirlpool Bumper Hinge
15	Inner Glass, Clear
19	Liner, Door
20	Drawer & Roller
21	Bracket, Drawer
22	814229 Whirlpool Primary Roller
23	Retainer, Glass
24	Front, Drawer (White)
24	Front, Drawer (Almond)
25	Retainer, Glass (4)
27	WP90296 Whirlpool Clip
28	Spacer, Door (8)
29	WP4159387 Whirlpool Compactor Screw
30	Screw (4) 10 x 1/2
31	WPW10001180 Whirlpool Refrigerator Screw
