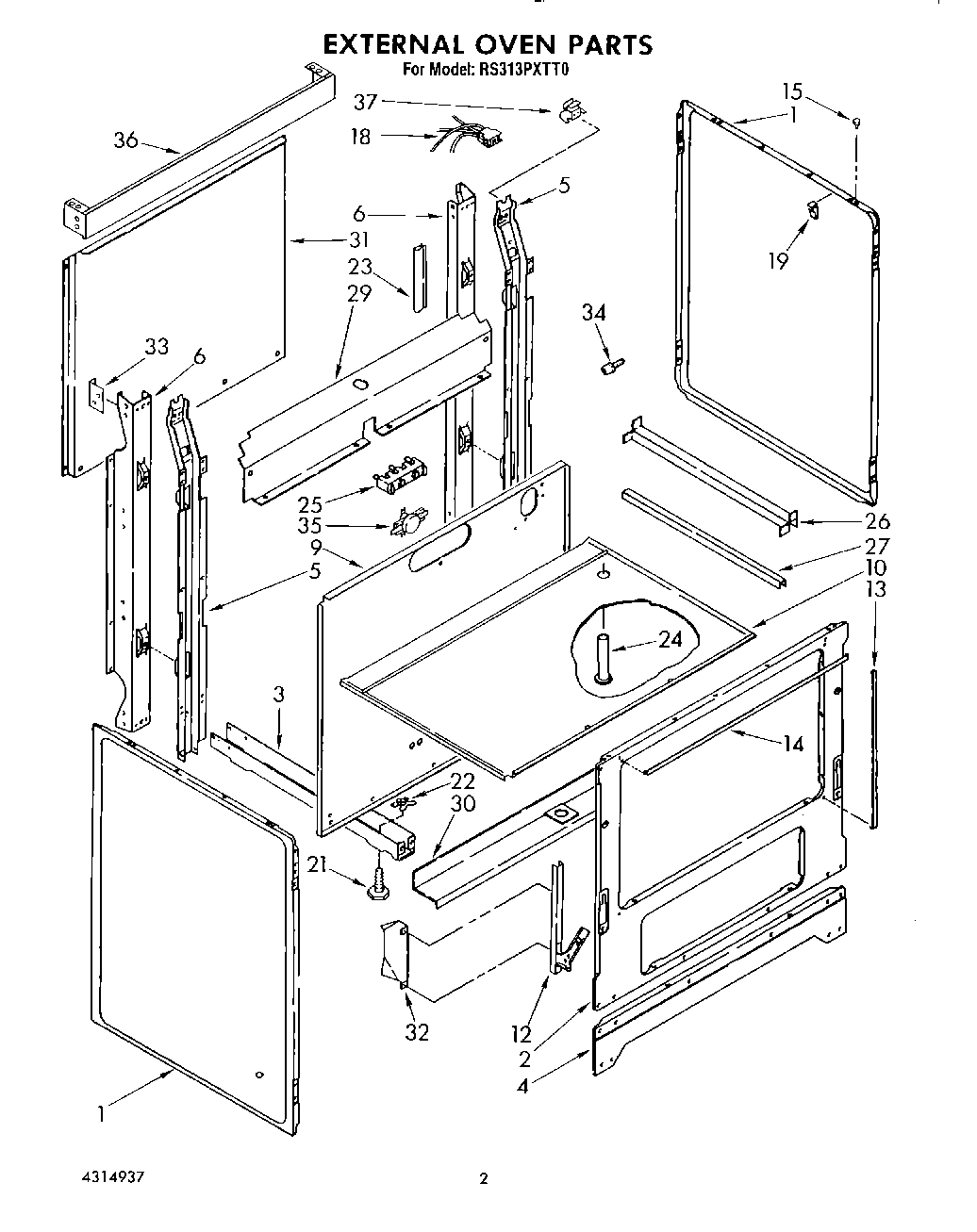

RS313PXTT0 02 – EXTERNAL OVEN, LIT/OPTIONALadmin2025-04-26T12:48:40+00:00RS313PXTT0 02 – EXTERNAL OVEN, LIT/OPTIONAL
Products
| Position | Product |
|---|
| List, Repair Parts |
| Guide, Use & Care |
| WPL LIT313358 |
| Instuctions, Installation |
| 1 | Panel, Side (2) (Almond) |
| 2 | Frame, Front |
| 3 | Rail, Base (2) |
| 4 | Screw, 10-12 X 1/2 (4) |
| 4 | Base, Front |
| 5 | Screw, 10-32 X 1/2 (1) |
| 5 | Support, Main (2) |
| 6 | SCREW |
| 6 | Support, Rear (2) |
| 9 | Panel, Rear |
| 10 | WP308685 Whirlpool Microwave Screw |
| 10 | Burner Box |
| 12 | Hinge. Door (2) |
| 12 | Screw, 10-24 X 3/8 (2) |
| 13 | Seal, Door (2) (Side) |
| 14 | Seal, Door (Top) |
| 15 | Bumper, Cooktop (2) |
| 18 | Block, Disconnect |
| 19 | Clip, Wire |
| 21 | Leg, Leveler (4) |
| 22 | Nut (4) |
| 23 | Safe Edge |
| 24 | Tube, Vent |
| 25 | WP8203546 Whirlpool Terminal Block |
| 26 | Ignitor (R.H.) |
| 27 | Ignitor (L.H.) |
| 29 | Cover, Rear |
| 30 | Cover, Wire |
| 31 | Wire Shield |
| 32 | Shield, Insulation |
| 33 | Bracket, Mounting (L.H.) |
| 33 | Bracket, Mounting (R.H.) |
| 34 | Locator Stud (2) |
| 35 | Disc, Thermo |
| 36 | Rail, Backguard |
| 37 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 37 | WPW10208653 Whirlpool Insulation |
| 37 | Bracket, Support (2) |
