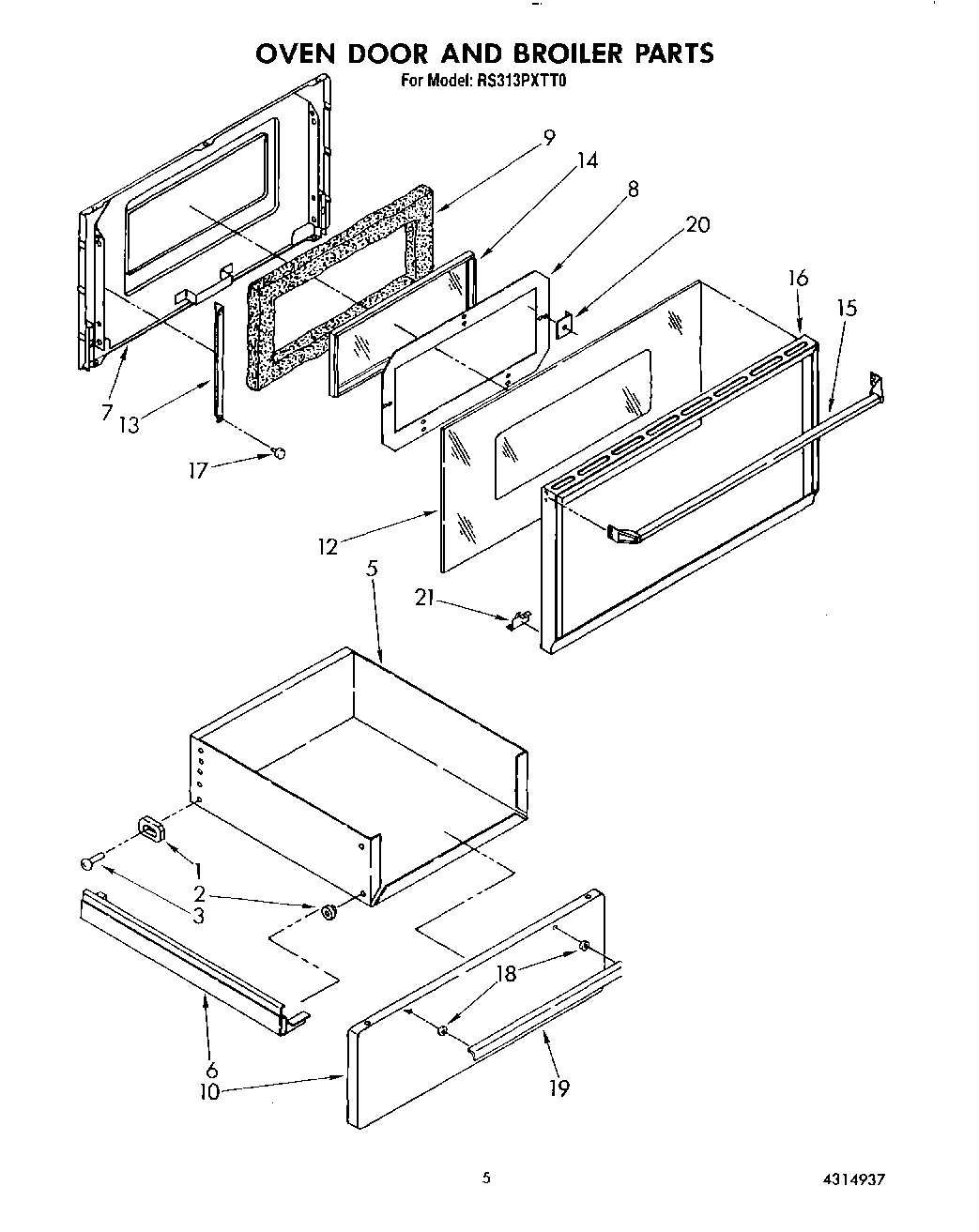

RS313PXTT0 04 – OVEN DOOR AND BROILER
Written by
in
RS313PXTT0 04 – OVEN DOOR AND BROILER
Products
Position
Product
1
Slide (2)
2
Roller (2)
3
Rivet
5
Liner
6
Track (Right)
6
Track (Left)
7
Liner, Door
8
Baffle
8
SCREW
9
Insulation
10
Panel, Drawer (Black)
10
WP308685 Whirlpool Microwave Screw
12
Glass
13
Support, Glass (2)
14
Window Assy
15
Handle, Door
16
Frame, Door
17
Bumper, Rubber (6)
18
Spacer (2)
19
Handle
20
Plate (2)
21
Support, Glass (Right Hand)
21
Support, Glass
←
