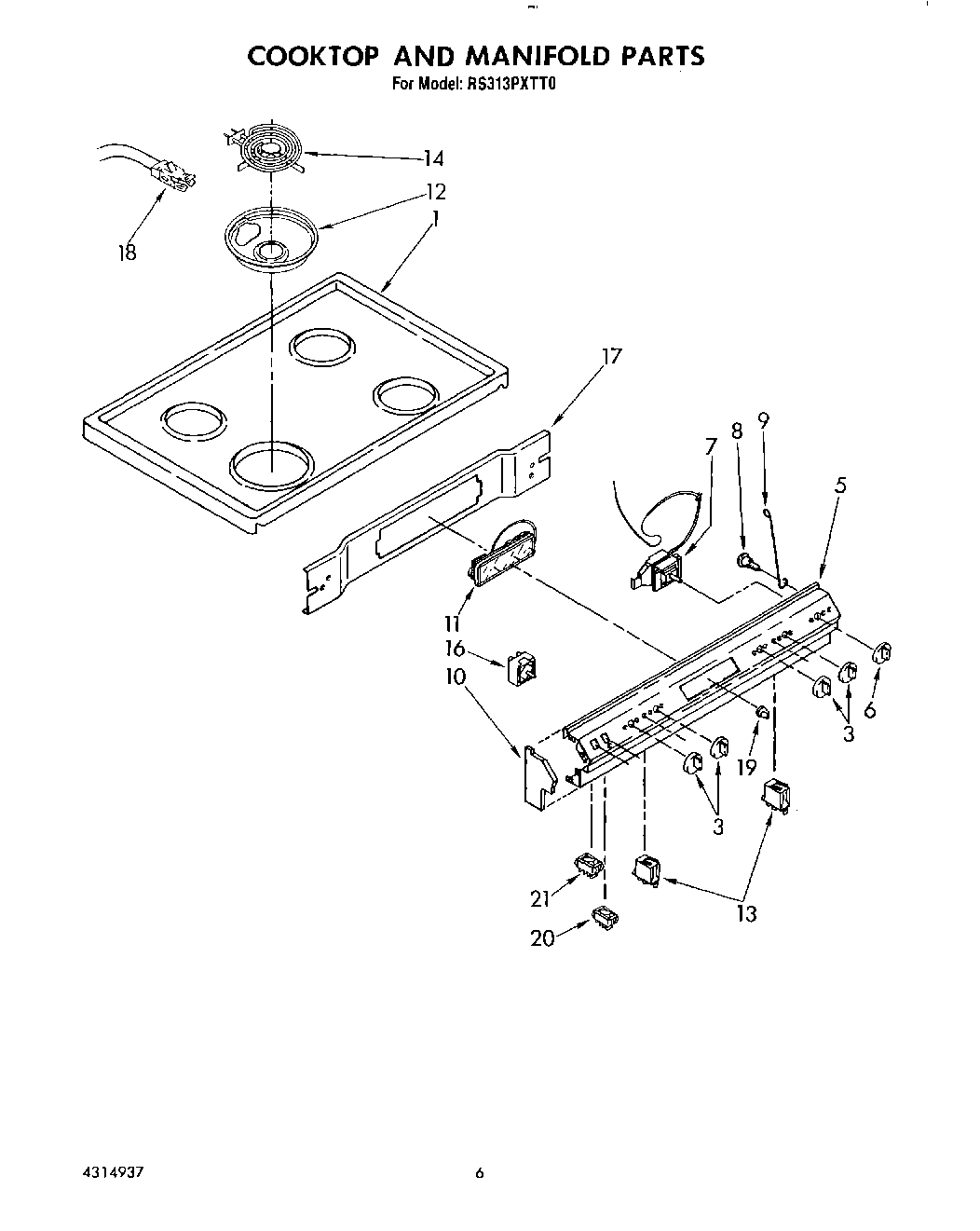

RS313PXTT0 05 – COOKTOP AND MANIFOLD

Products

PositionProduct
1Cooktop (Chrome)
3Knob, Burner (4)
5Panel, Manifold
6Knob, Thermostat
7Thermostat
8Screw
9Rod, Support
10Endcap (R.H.)
10Endcap (L.H.)
11Clock
12WPW10196406 Whirlpool 6" Chrome Drip Bowl
12DRIP BOWL 8" W/HOLE CHROME
13Light, Indicator (4)
14Unit, Surface (8“)
14Unit, Surface (6“)
16W10900107 Whirlpool Oven Surface Element Switch
17Mounting Bracket, Clock
18BURNER RECEPTACLE KIT
19Knob, Clock
21WP4314961 Whirlpool Lite Switch
