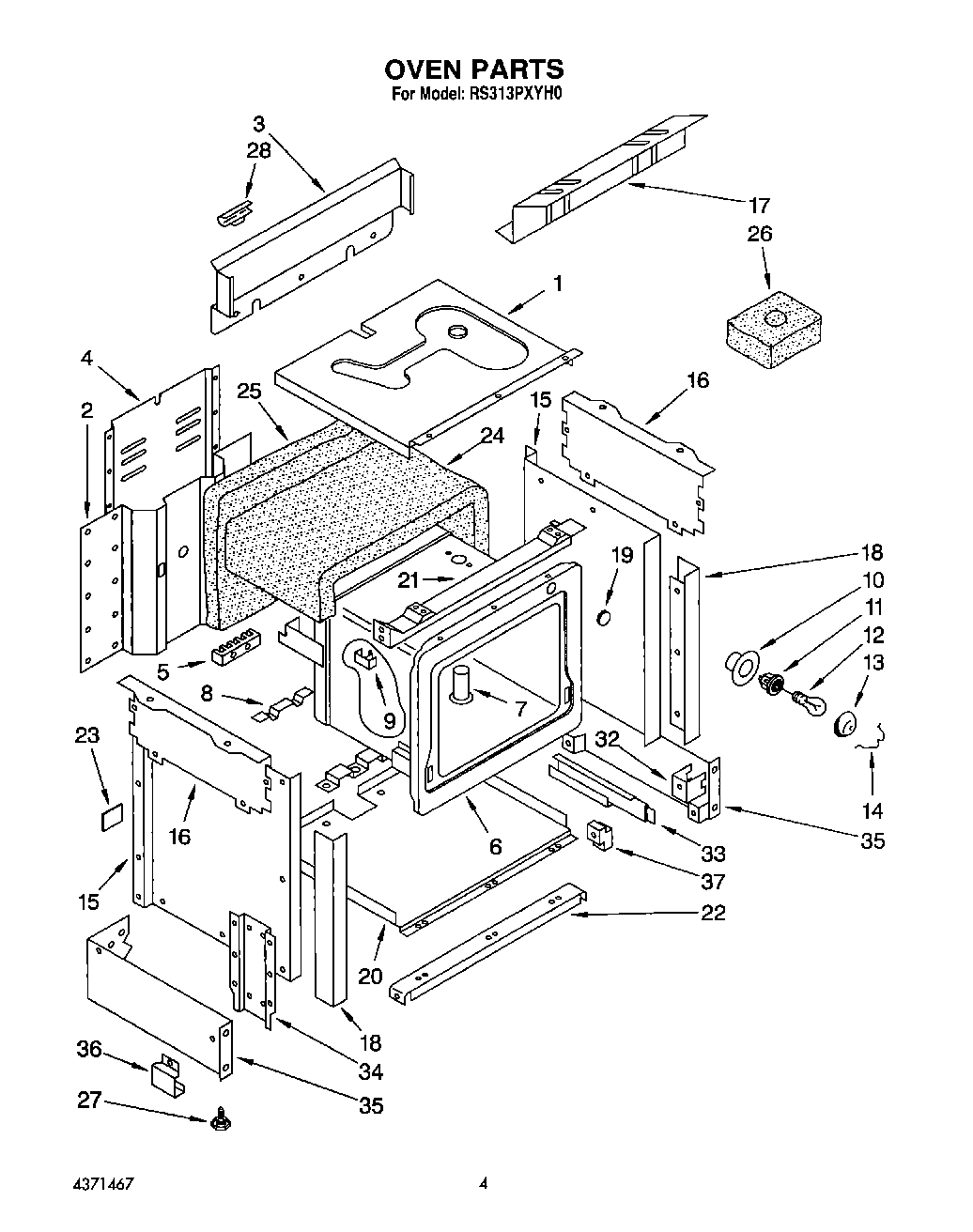

RS313PXYH0 04 – OVEN, LIT/OPTIONALadmin2025-04-26T12:48:51+00:00RS313PXYH0 04 – OVEN, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Installation Instructions |
| List, Repair Parts |
| Use & Care Guide |
| 1 | Retainer, Top |
| 2 | Panel, Rear (lower) |
| 3 | Panel, Rear (upper) |
| 4 | Cover, Back |
| 5 | WP8203546 Whirlpool Terminal Block |
| 6 | Oven, Self Clean |
| 7 | Tube, Vent |
| 8 | Panel, Bottom |
| 9 | Bracket, Thermobulb |
| 10 | Housing, Oven Light |
| 11 | W10856866 Whirlpool Light Socket |
| 12 | RANGE ONLY 40W 120V APPL BULB |
| 13 | Lens, Oven Light |
| 14 | Retainer, Lens |
| 15 | Retainer, Insulation (2) |
| 16 | Panel, Side (2) |
| 17 | Shield, Wire |
| 18 | Trim, Oven Front (2) |
| 19 | Switch, Door |
| 20 | Shield, Bottom Insulation |
| 21 | Bracket, Cooktop |
| 22 | Channel, Oven |
| 23 | Plate, Filler (2) |
| 24 | Insulation, Oven Wrap |
| 25 | Insulation, Oven Back |
| 26 | Insulation, Vent |
| 27 | Screw, Leveling (4) |
| 28 | Bracket, Hinge Support |
| 32 | Spacer (2) |
| 33 | Rail, Drawer (L.H.) |
| 33 | Rail, Drawer (R.H.) |
| 34 | Support, Front (2) |
| 35 | Panel, Lower Side (R.H.) |
| 35 | Panel, Lower Side (L.H.) |
| 36 | Shield, Toe |
| 37 | Anti-tip Kit |
| 37 | Guide, Front (2) |
