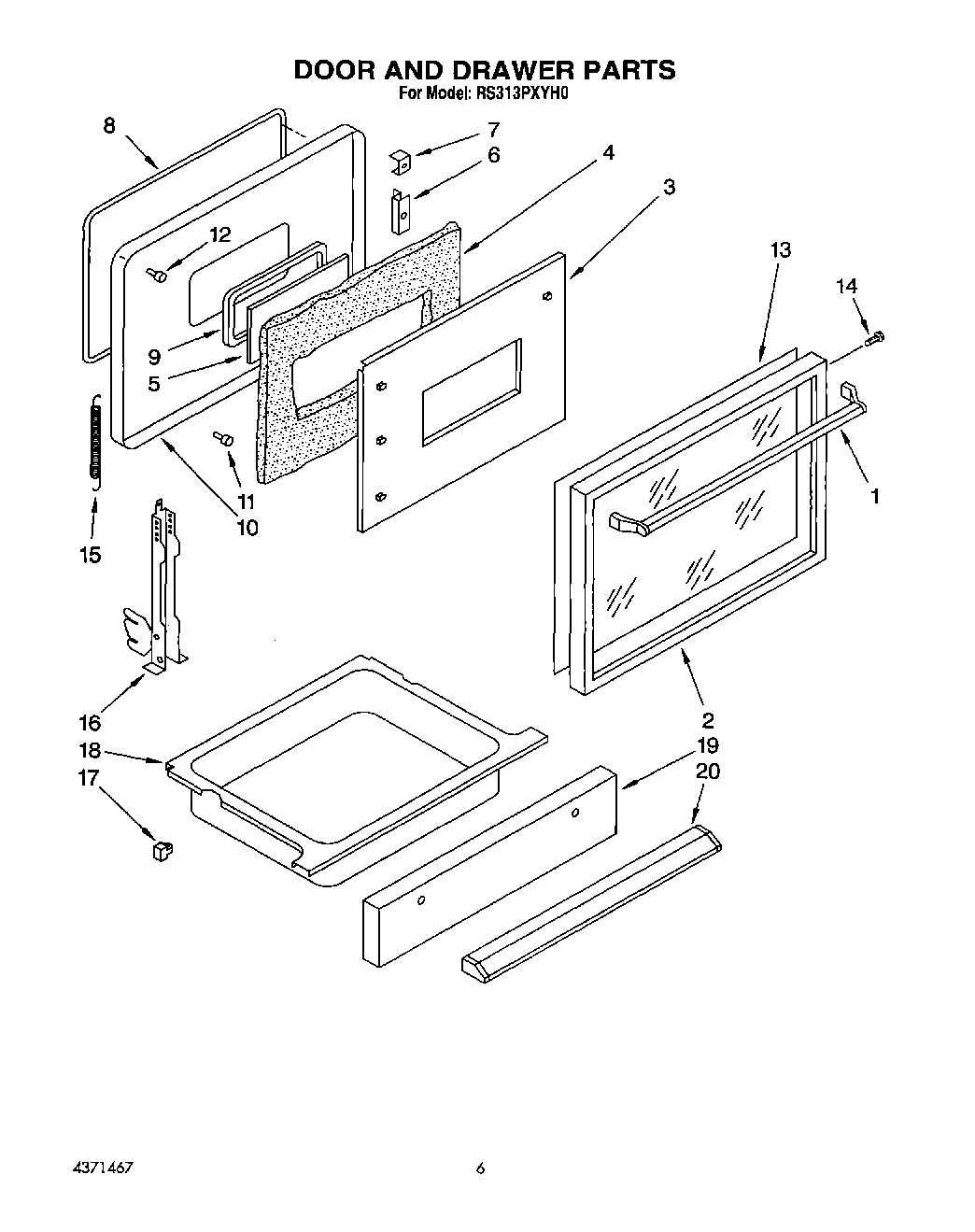

RS313PXYH0 05 – DOOR AND DRAWER

Products

Position	Product
1	Handle, Door
2	Frame, Door
3	Retainer, Insulation
4	Insulation
5	Glass, Inner
6	Retainer, Inner Glass
7	Bumper, Window Top
8	Seal, Door
9	Seal, Glass
10	Liner, Door
11	Bumper, Window Bottom
12	Bumper, Window Top
13	Glass, Outer
14	Screw, Handle (4)
15	Spring, Door (2)
16	Channel, Hinge (2)
17	Guide (2)
18	Drawer
19	Panel, Drawer
20	Handle, Door (Main)
