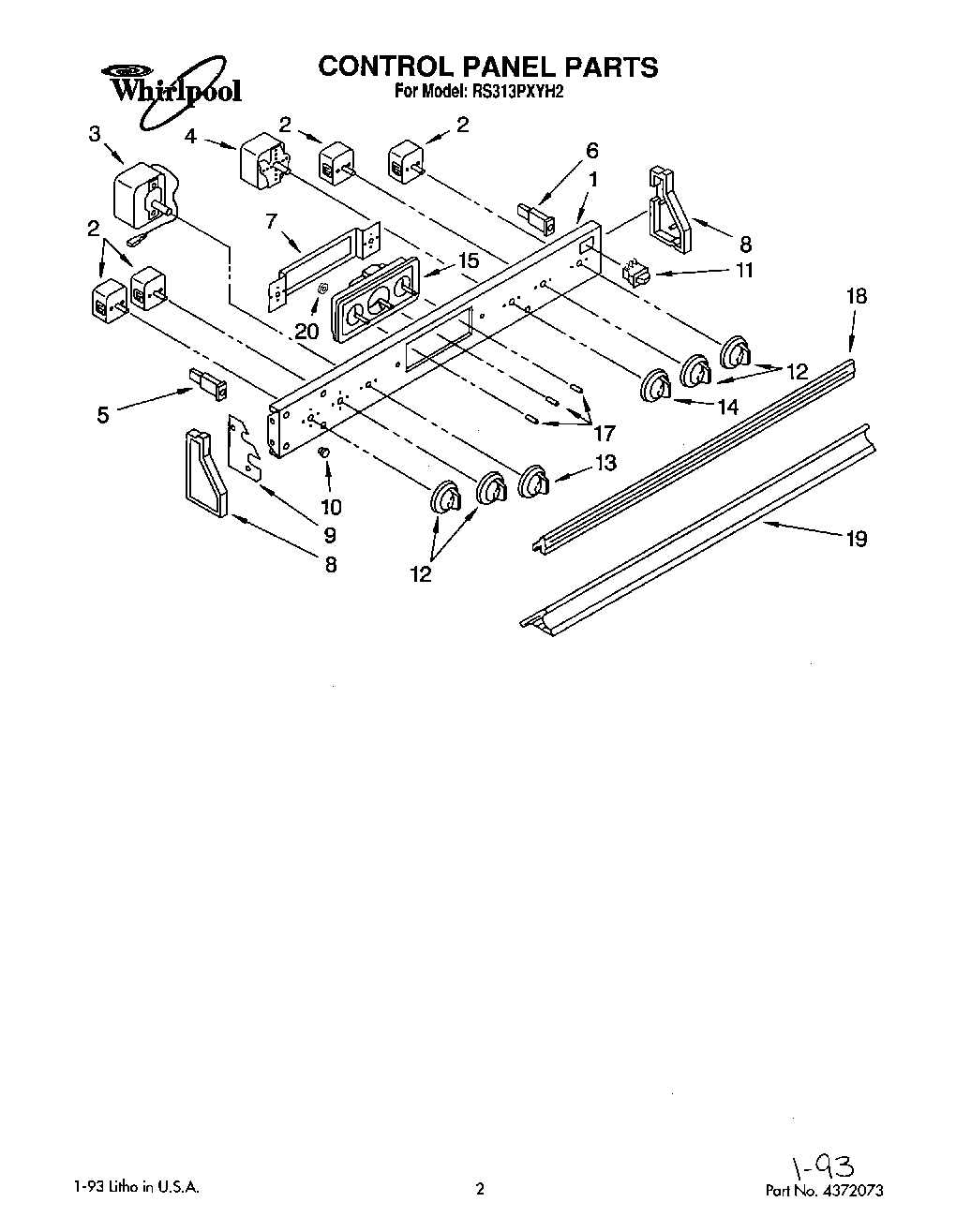

RS313PXYH2 01 – SECTION

Products

Position	Product
1	Panel, Control
2	W10900107 Whirlpool Oven Surface Element Switch
3	Thermostat, Oven
4	Switch, Selector
5	Light, Indicator (Indicator, Surface)
6	Light, Indicator (Indicator, Oven (2))
7	Bracket, Clock
8	End Cap (L.H.)
8	End Cap (R.H.)
9	Plate, End Cap
10	Lens, Indicator (4)
11	Switch, Oven Light
12	Knob, Infinite Switch (4)
13	Knob, Thermostat
14	Knob, Selector Switch
15	Clock, Timer
17	Knob, Clock
18	Rail, Top
19	Rail, Bottom
20	Washer, Spacer (3)
