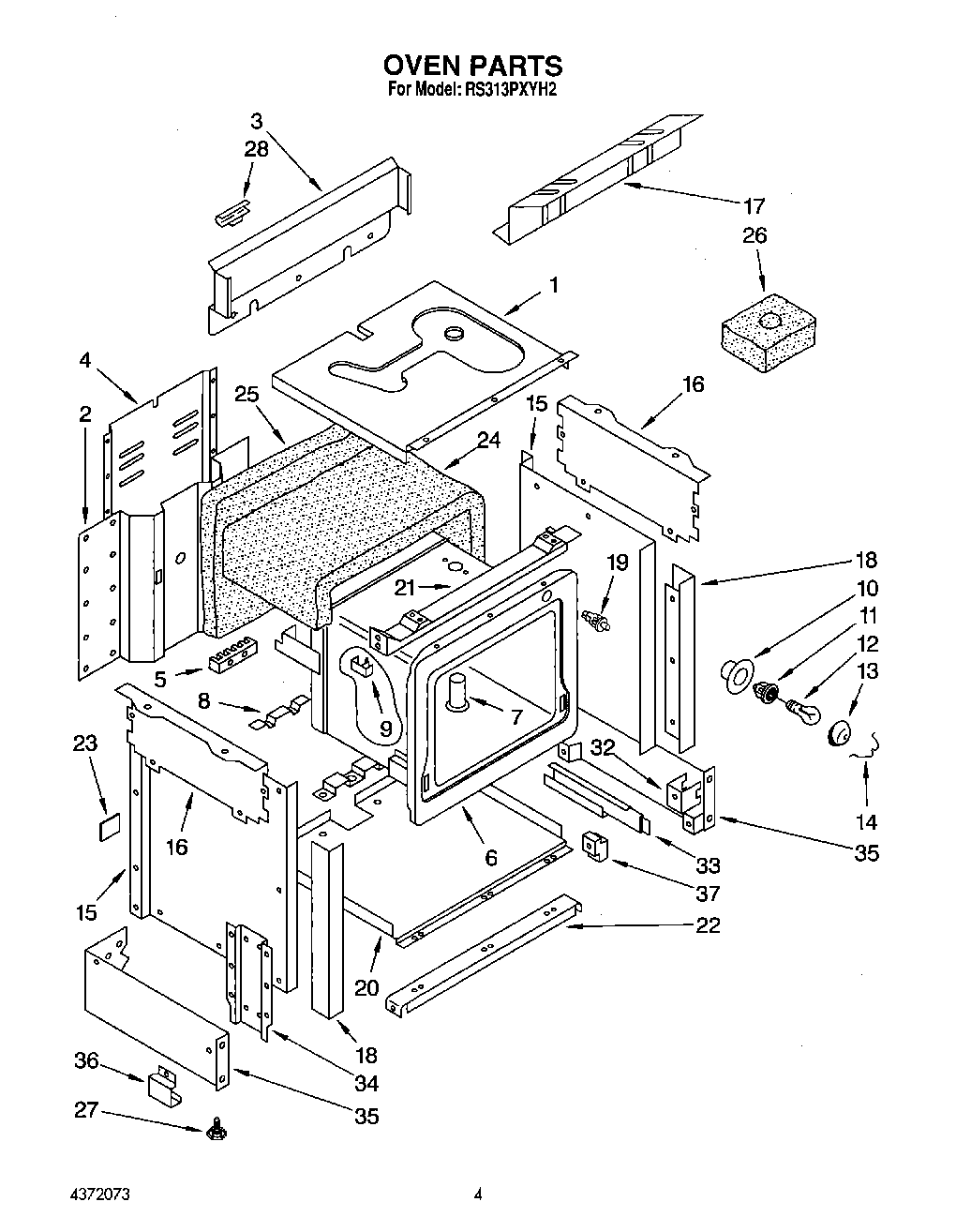

RS313PXYH2 03 – SECTION

Products

Position	Product
	Installation Instructions
	Use & Care Guide
	List, Repair Parts
1	Panel, Sub-Top
2	Panel, Rear (lower)
3	Panel, Rear (upper)
4	Cover, Back
5	WP8203546 Whirlpool Terminal Block
6	Liner, Oven
7	Tube, Vent
8	Panel, Bottom
9	Bracket, Thermobulb
10	Housing, Oven Light
11	W10856866 Whirlpool Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	Lens, Light
14	Retainer, Lens
15	Retainer, Insulation (2)
16	Panel, Side (2)
17	Shield, Wire
18	Trim, Oven Front (2)
19	Switch, Door
20	Shield, Bottom Insulation
21	Bracket, Cooktop
22	Channel, Oven
23	Plate, Filler (2)
24	Insulation, Oven Wrap
25	Insulation, Oven Back
26	Insulation, Vent
27	Screw, Leveling (4)
28	Bracket, Hinge Support
32	Spacer (2)
33	Rail, Drawer (R.H.)
33	Rail, Drawer (L.H.)
34	Support, Front (2)
35	Panel, Lower Side (R.H.)
35	Panel, Lower Side (L.H.)
36	Shield, Toe
37	Anti-tip Kit
37	Guide, Front (2)
