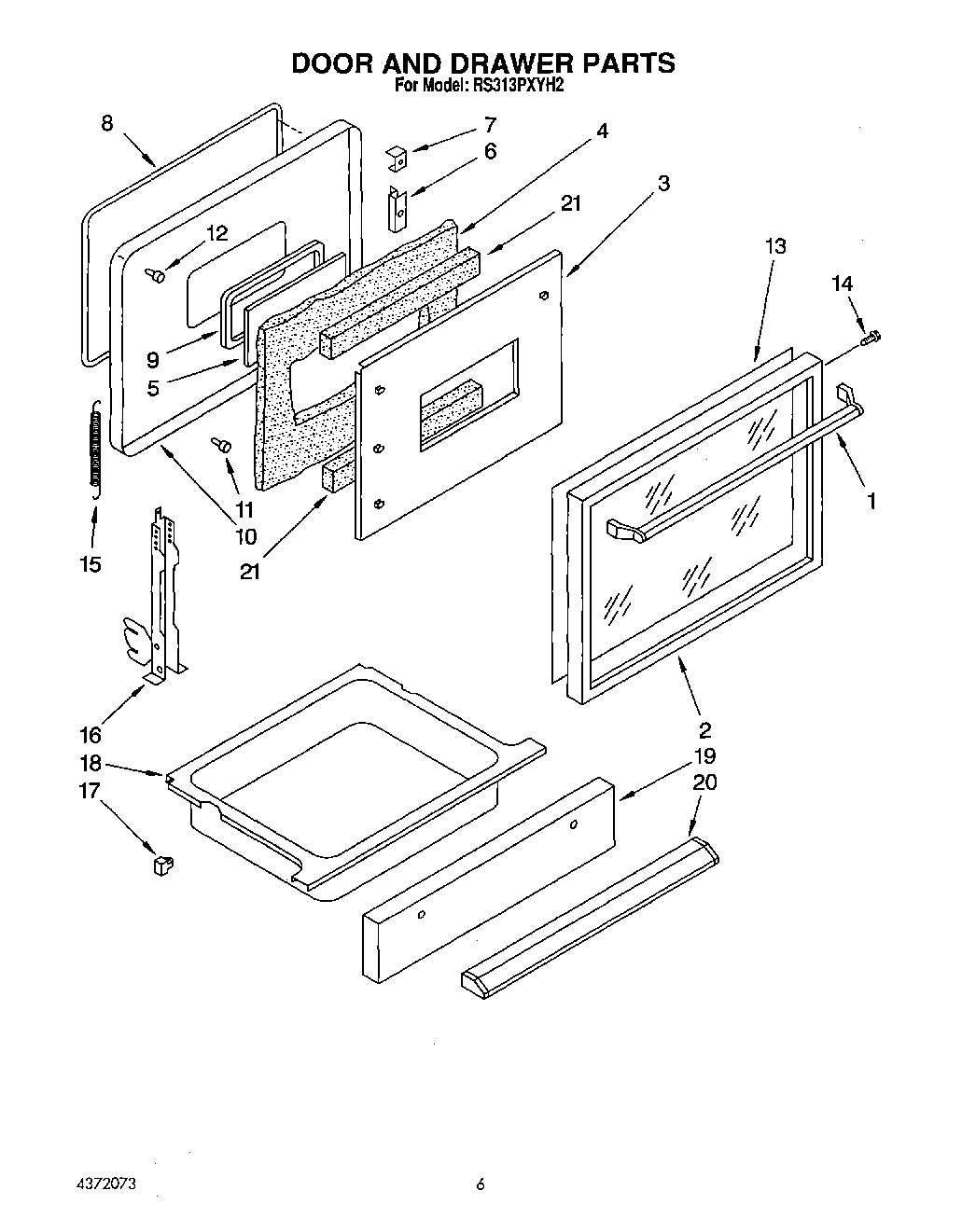

RS313PXYH2 04 – SECTION

Products

PositionProduct
1Handle, Door
2Frame, Door
3Retainer, Insulation
4Insulation
5Glass, Inner
6Retainer, Inner Glass
7Bumper, Cooktop (5)
8Seal, Door
9Seal, Glass
10Liner, Door
11Bumper, Window Bottom
12Bumper, Window Top
13Glass, Outer
14Screw, Handle (4)
15Spring, Door (2)
16Channel, Hinge (2)
17Guide (2)
18Drawer
19Panel, Drawer
20Handle, Door (Main)
21Insulation (2)
