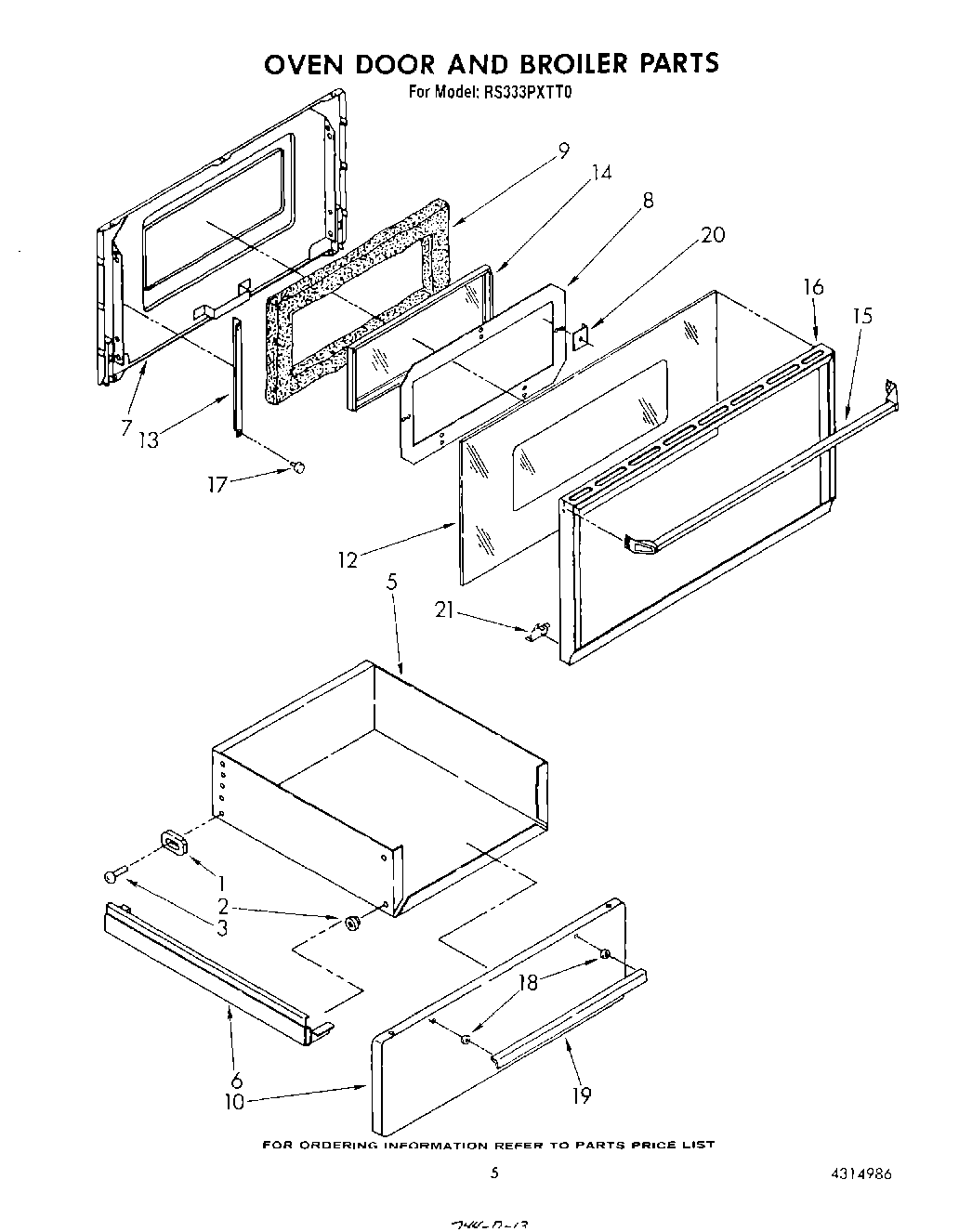

RS333PXTT0 04 – OVEN DOOR AND BROILER

RS333PXTT0 04 – OVEN DOOR AND BROILER

Written by

in

RS333PXTT0 04 – OVEN DOOR AND BROILER

Products

PositionProduct
1Slide (2)
2Roller (2)
3Rivet
5Liner
6Track (Right)
6Track (Left)
7Shield, Wire (2)
8Baffle
8SCREW
9Insulation
10Panel, Drawer (Black)
10WP308685 Whirlpool Microwave Screw
12Glass
13Support, Glass (2)
14Window Assy
15Handle, Door
16Frame, Door
17Bumper, Rubber (6)
18Spacer (2)
19Handle
20Plate (2)
21Support, Glass
