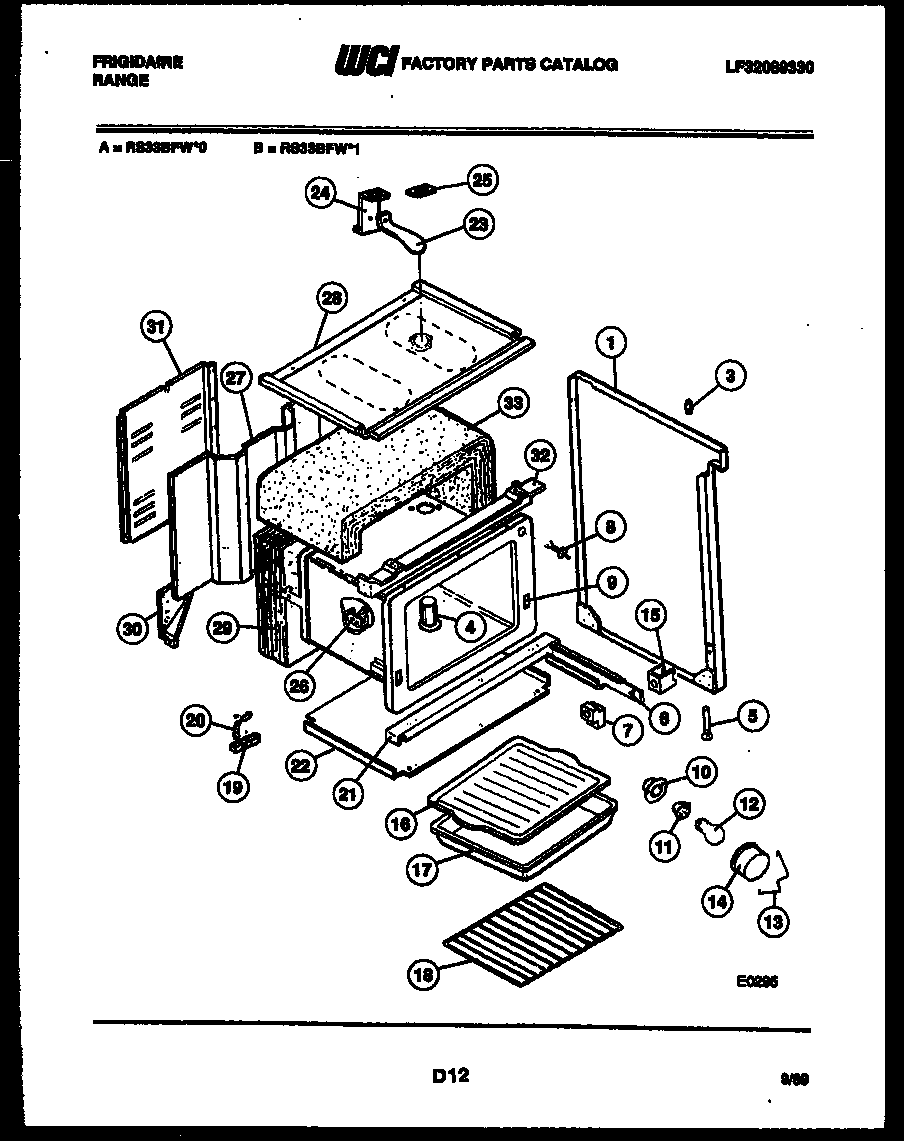

RS33BFL0 06 – BODY PARTS

Products

Position	Product
1A	WCI 08012530
1	SIDE PNL – RH (ALMD)
3	BUMPER – COOKTOP (4)
4	WCI 08016479
5	WCI 08003583
6	WCI 08015746
6A	RAIL, DRAWER LH
7	WCI 08003103
8	SWITCH-DOOR
9	OVEN LINER
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	WCI 08011087
14	5304524341 Frigidaire Lens
15	WCI 08011055
16	WCI 3203164
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08003146
21	CHANNEL – OVEN SUPPORT LOWER
22	WCI 3017394
23	WCI 08014259
25	GASKET, OVEN VENT TUBE
26	BRACKET-THERMO BULB (2)
27	WCI 3017575
28	WCI 08014247
29	INSULATION – OVEN BACK
30A	WCI 3017482
30	WCI 3017481
31	COVER – WIRE
32	WCI 3203209
33	INSULATION – OVEN WRAP
