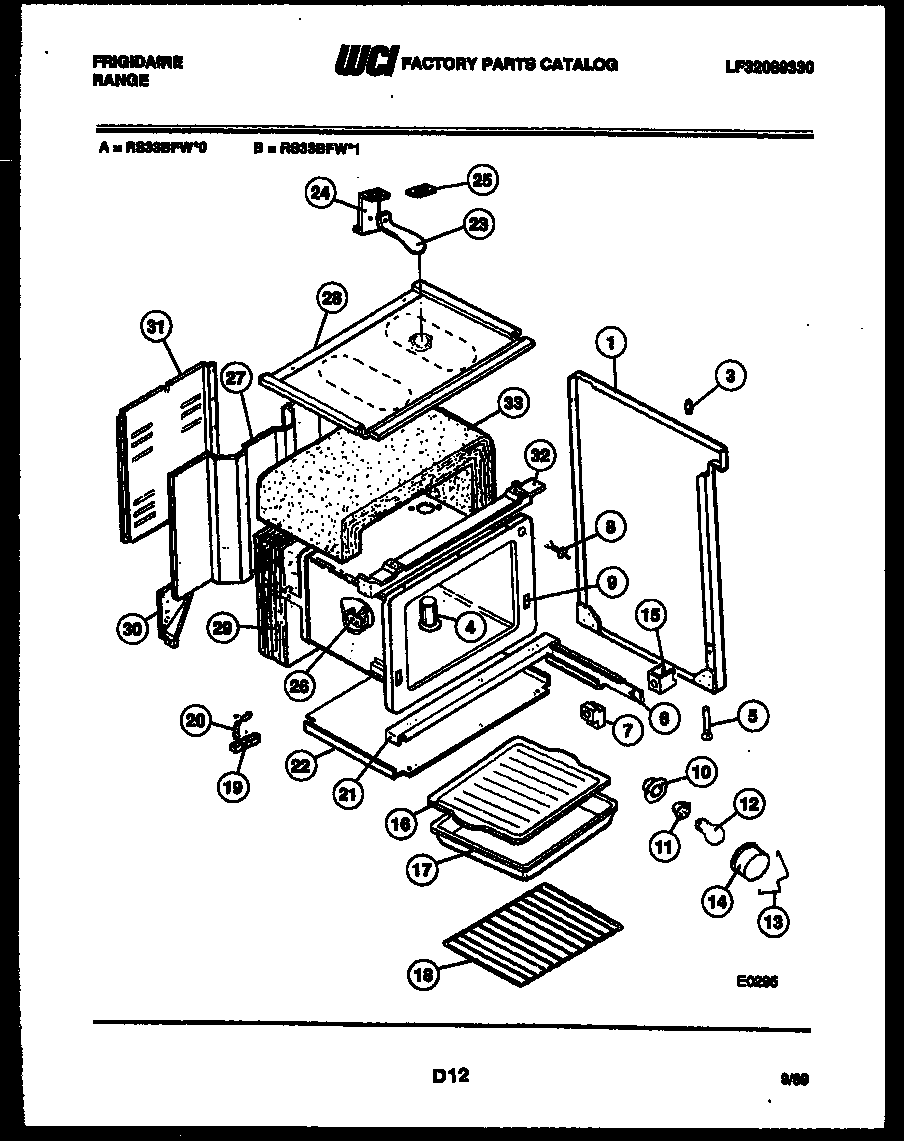

RS33BFW1 06 – BODY PARTS

Products

Position	Product
*15119	ANTI-TIP KIT, (NON-ILLUSTRATED)
1A	WCI 08012528
1	WCI 08012527
3	BUMPER – COOKTOP (4)
4	WCI 08016479
5	LEG, LEVELLER (4)
6A	RAIL, DRAWER LH
6	WCI 08015746
7	WCI 08003103
8	SWITCH-DOOR
9	OVEN LINER
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	WCI 08011087
14	5304524341 Frigidaire Lens
15	WCI 08011055
16	WCI 3205234
17	WCI 3205232
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08003146
21	CHANNEL – OVEN SUPPORT LOWER
22	WCI 3203574
23	WCI 08014259
25	GASKET, OVEN VENT TUBE
26	BRACKET-THERMO BULB (2)
27	WCI 3017575
28	WCI 08014247
29	INSULATION – OVEN BACK
30	WCI 3017481
30A	WCI 3017482
31	COVER – WIRE
32	WCI 3203209
33	INSULATION – OVEN WRAP
