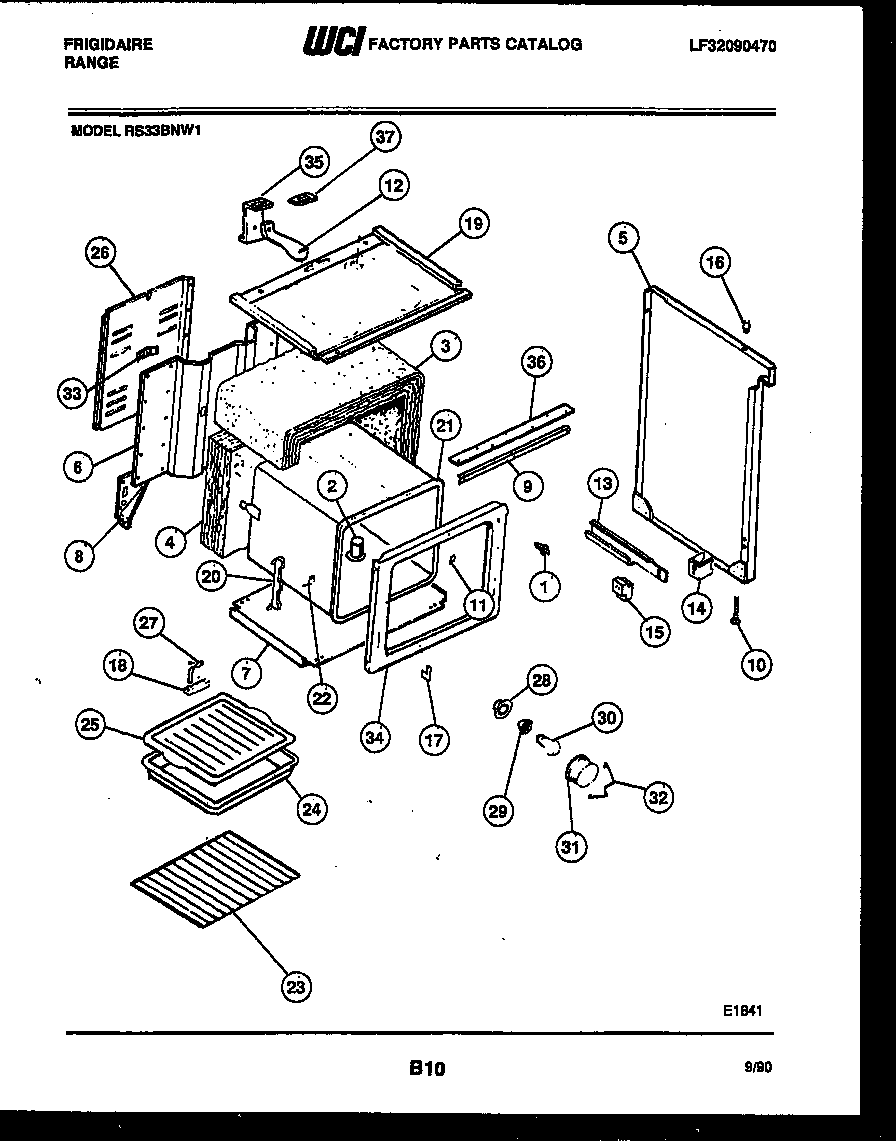

RS33BNL1 06 – BODY PARTS

Products

PositionProduct
*35602WCI 3203574
*35602WCI 3205257
1WCI 5301314211
2TUBE-OVEN VENT
3INSULATION – OVEN WRAP
4INSULATION
5SIDE PANEL RH-ALMD
6PANEL-BACK
7WCI 3206275
8AWCI 3017482
8WCI 3017481
9WCI 5303207391
10SCREW-LEVELING (4)
11WCI 3202082
12WCI 3051655
13ARAIL, DRAWER LH
13WCI 5308015746
14SPACER, DRAWER RAIL (2)
15GUIDE-DRAWER FRNT (2)
16BUMPER, COOKTOP (4)
17WCI 3019063
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI K005025704
20WCI 3201631
21BODY-OVEN
22WCI 3201632
23316067902 Frigidaire Oven Rack
24WCI 3205539
25GRILLE, BROILER
26WIRE, COVER
27PLATE=GROUND STRAP
28WCI 3051511
29316116400 Frigidaire Oven Light Socket
30316538904 Frigidaire Oven Lamp Light
315304524341 Frigidaire Lens
32BWCI 5300009126
32RETAINER-LENS
32AANTI-TIP KIT, (NON-ILLUSTRATED)
33WCI 3016281
34WCI 5303207446
35BRACKET, VENT TUBE
36WCI 5303207389
37GASKET, OVEN VENT TUBE
