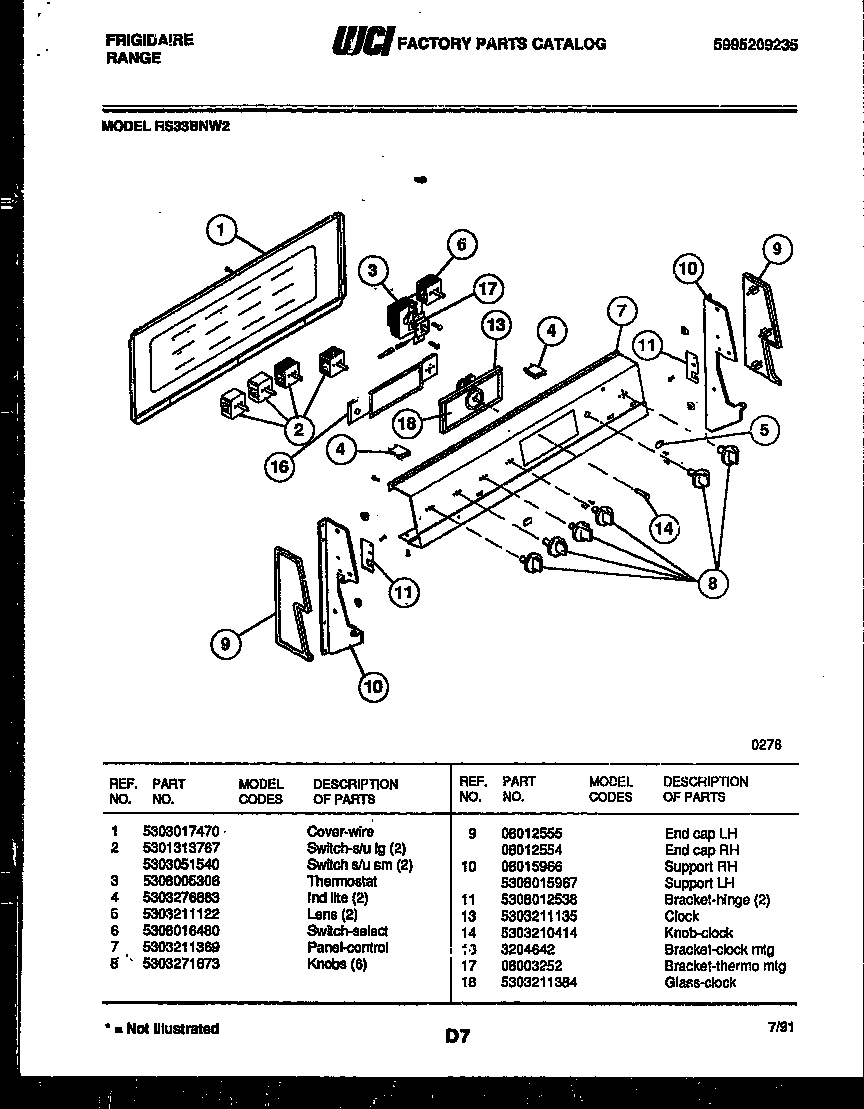

RS33BNL2 02 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
4	LIGHT – PILOT S/U
5	LENS (3)
6	SWITCH-SELECTOR
7	WCI 5303211369
8	KNOBS (6)
9	WCI 08012555
9A	WCI 08012554
10A	SUPPORT – LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
13	WCI 5303211135
14	KNOB – CLOCK (3) – GREY
16	BRACKET-MTG CLOCK
17	WCI 08003252
18	WCI 5303211384
