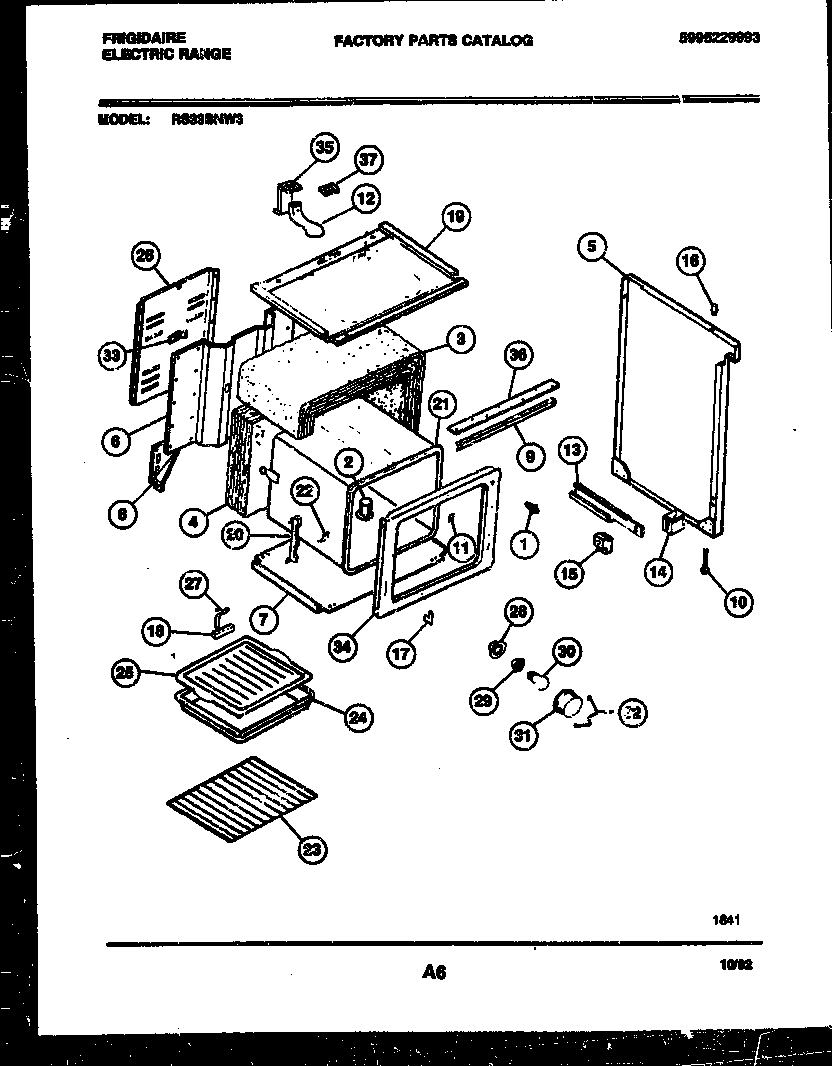

RS33BNW3 06 – BODY PARTS

Products

Position	Product
*69093	WCI 19100210094
*69093	WCI 3203574
*69093	WCI 3205257
1	WCI 5301314211
2	TUBE-OVEN VENT
3	INSULATION – OVEN WRAP
4	WCI 5303274967
5A	SIDE PANEL, LH WHITE
5	SIDE PANEL, RH WHITE
6	PANEL-BACK
7	WCI 3206275
8A	WCI 3017482
8	WCI 3017481
9	WCI 5303207391
10	SCREW-LEVELING (4)
11	WCI 3202082
12	WCI 3051655
13	RAIL, DRAWER LH
13	WCI 5308015746
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER, COOKTOP (4)
17	WCI 3019063
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 5303292687
20	WCI 3201631
21	WCI 5303202686
22	WCI 3201632
23	316067902 Frigidaire Oven Rack
24	WCI 5303292688
25	GRILLE – BROILER
26	WIRE, COVER
27	PLATE=GROUND STRAP
28	WCI 5303271606
29	316116400 Frigidaire Oven Light Socket
30	316538904 Frigidaire Oven Lamp Light
31	5304524341 Frigidaire Lens
32A	ANTI-TIP KIT, (NON-ILLUSTRATED)
32B	5303284616 Frigidaire Range Bulb Clip Thermostat
32	RETAINER-LENS
33	WCI 3016281
34	FRONT – OVEN
35	BRACKET, VENT TUBE
36	WCI 5303207389
37	GASKET, OVEN VENT TUBE
