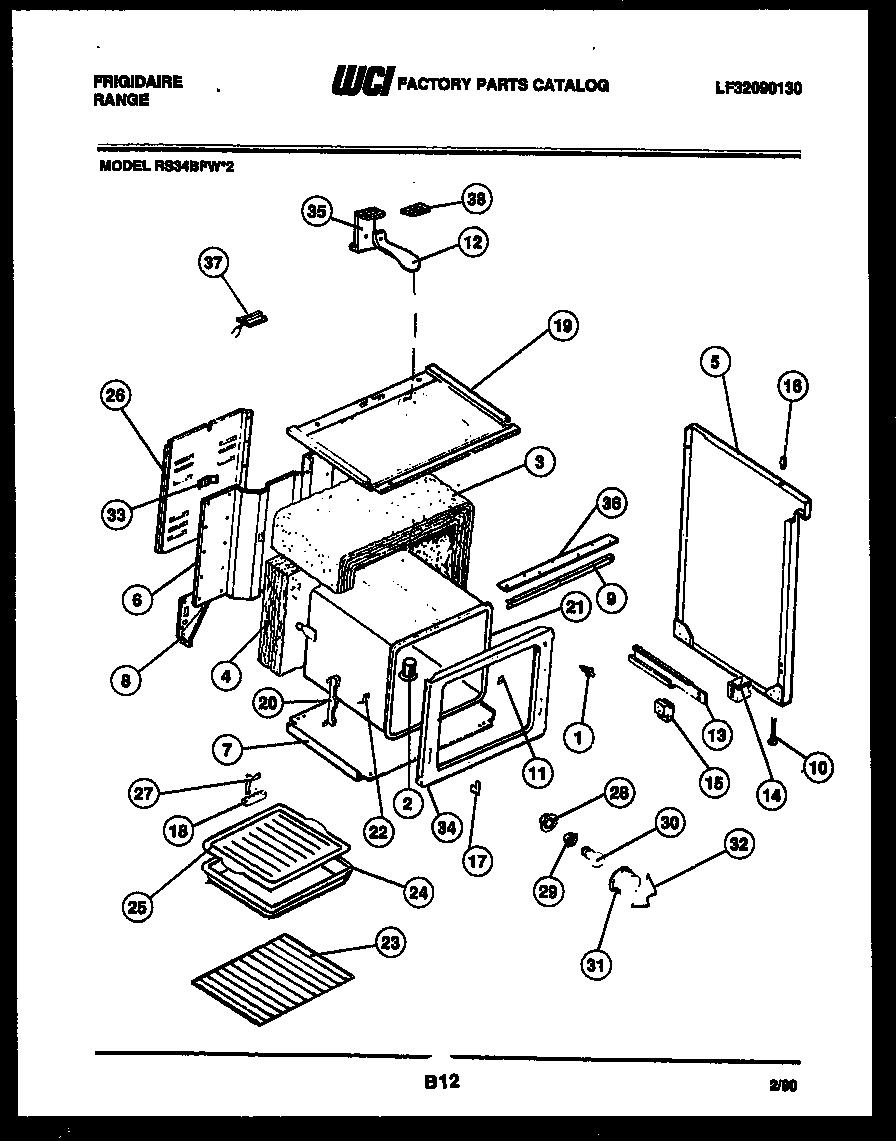

RS34BFL2 07 – BODY PARTS

Products

PositionProduct
1WCI 5301314211
2TUBE-OVEN VENT
3INSULATION – OVEN WRAP
4INSULATION
5ASIDE PANEL LH-ALMD
5SIDE PANEL RH-ALMD
6PANEL-BACK
7WCI 3206275
8WCI 3017481
8AWCI 3017482
9WCI 5303207391
10LEG, LEVELLER (4)
11WCI 3203082
12WCI 3051655
13WCI 5308015746
13ARAIL, DRAWER LH
14SPACER, DRAWER RAIL (2)
15GUIDE-DRAWER FRNT (2)
16BUMPER, COOKTOP (4)
17WCI 3019063
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI K005025704
20WCI 3201631
21BODY-OVEN
22WCI 3201632
23316067902 Frigidaire Oven Rack
24WCI 3205539
25GRILLE, BROILER
26WIRE, COVER
27STRAP-GROUND
28WCI 3051511
29316116400 Frigidaire Oven Light Socket
30316538904 Frigidaire Oven Lamp Light
315304524341 Frigidaire Lens
32RETAINER-LENS
33WCI 3016281
34WCI 5303207446
35BRACKET, VENT TUBE
36WCI 5303207389
37AANTI-TIP KIT, (NON-ILLUSTRATED)
37BWCI 5300009126
37BALLAST-LAMP (NON-ILLUSTRATED)
37CBRKT – THERMO BULB
38GASKET, OVEN VENT TUBE
