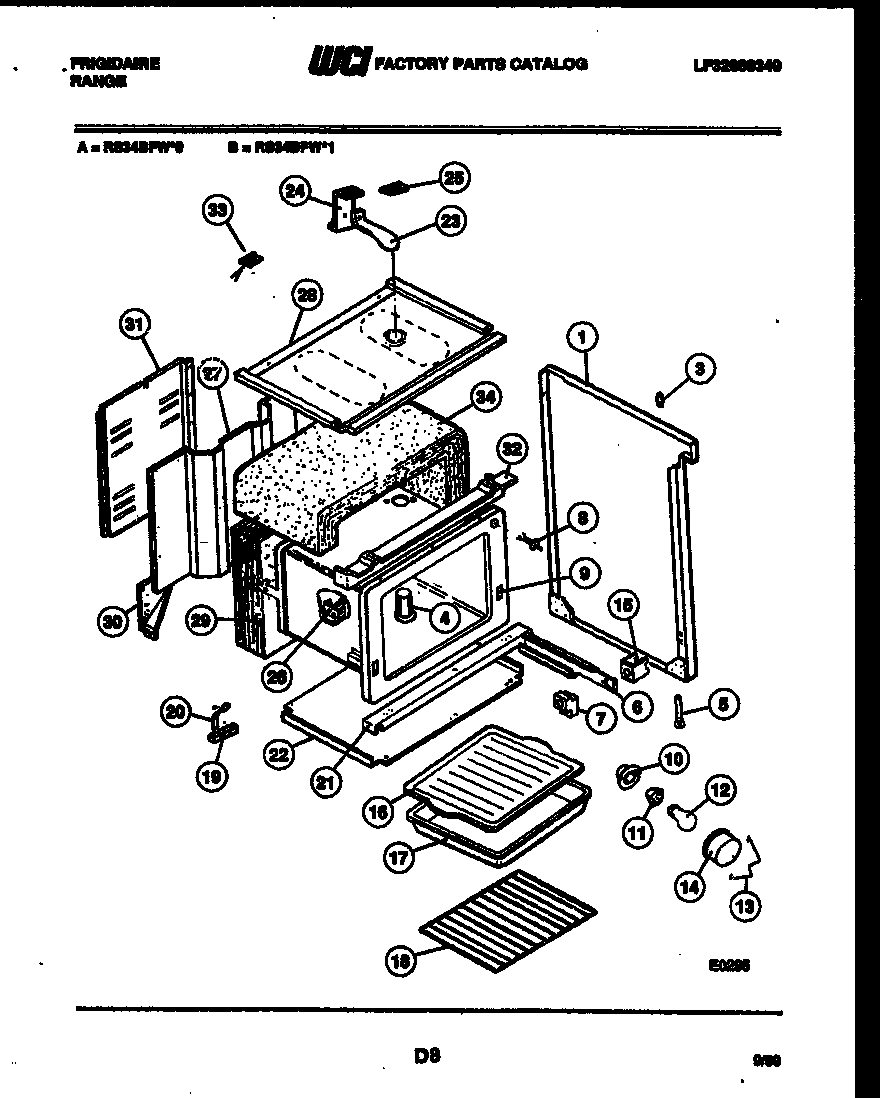

RS34BFW1 07 – BODY PARTS

Products

Position	Product
*21677	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 08012527
1A	WCI 08012528
3	BUMPER – COOKTOP (4)
4	WCI 08016479
5	LEG, LEVELLER (4)
6	WCI 08015746
6A	RAIL, DRAWER LH
7	WCI 08003103
8	SWITCH-DOOR
9	LINER, OVEN
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	WCI 08011087
14	5304524341 Frigidaire Lens
15	WCI 08011055
16	WCI 3205234
17	WCI 3205232
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08003146
21	CHANNEL – OVEN SUPPORT LOWER
22	WCI 3203574
23	WCI 08014259
24	WCI 08014260
25	GASKET, OVEN VENT TUBE
26	BRKT – THERMO BULB
27	WCI 3017575
28	WCI 08014247
29	INSULATION – OVEN BACK
30A	WCI 3017482
30	WCI 3017481
31	COVER – WIRE
32	WCI 3203209
33	BALLAST-LAMP (NON-ILLUSTRATED)
34	INSULATION – OVEN WRAP
