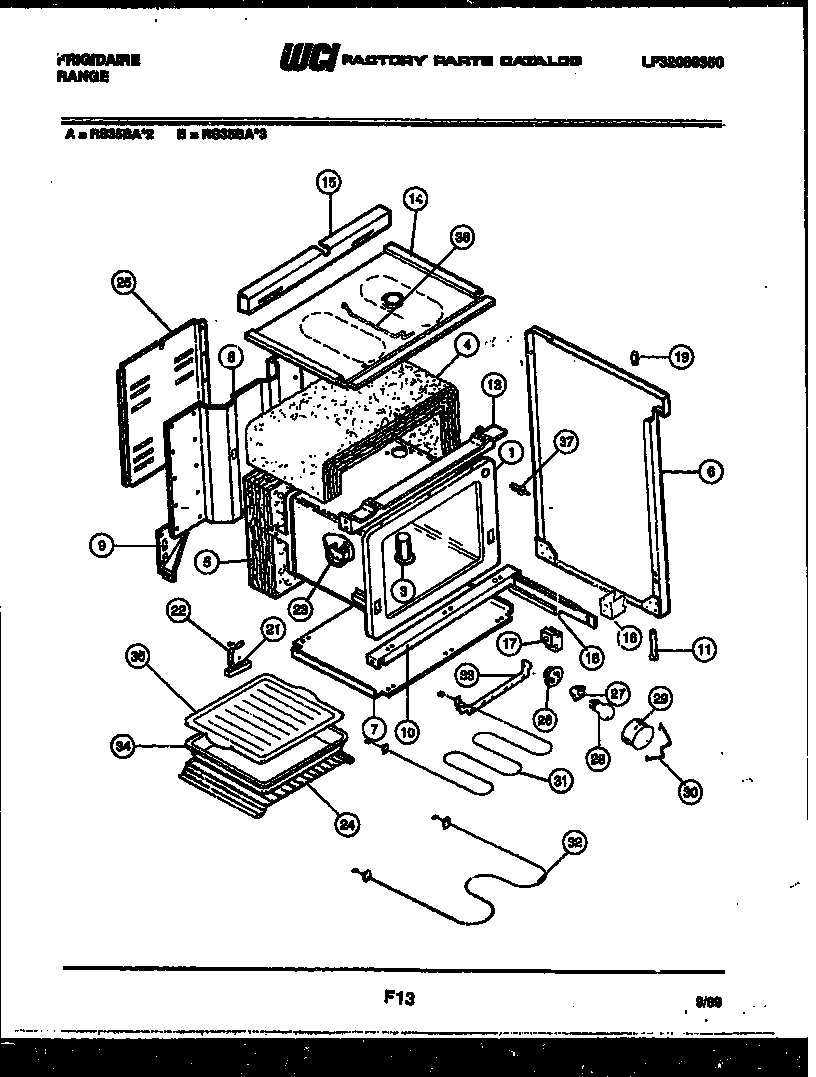

RS35BAF3 02 – BODY PARTS

Products

Position	Product
*90363	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	OVEN LINER
3	WCI 08012541
4	WCI 3008109
5	WCI 3008960
6	WCI 08012531
6	WCI 08012532
7	WCI 3203574
8	WCI 3017575
9	WCI 3017481
9A	WCI 3017482
10	CHANNEL – OVEN SUPPORT LOWER
11	WCI 32059294
13	WCI 3200926
14	WCI 08012542
15	WCI 08015738
16	WCI 08011055
17	WCI 08003103
18	WCI 08015747
18	WCI 08015746
19	BUMPER – COOKTOP (4)
21	5304409888 Frigidaire Oven Terminal Block with Hardware
22	WCI 08003146
23	BRKT-THERMO BULB
24	316067902 Frigidaire Oven Rack
25	COVER – WIRE
26	CUP – OVEN LIGHT
27	316116400 Frigidaire Oven Light Socket
28	316538904 Frigidaire Oven Lamp Light
29	5304524341 Frigidaire Lens
30	WCI 08011087
31	5303051516 Frigidaire Broil Element
32	5303051519 Frigidaire Oven 2600W Bake Element
33	WCI 08002857
34	WCI 3205232
35	WCI 3205234
36	ROD COOKTOP SUPPORT
37	SWITCH-DOOR
