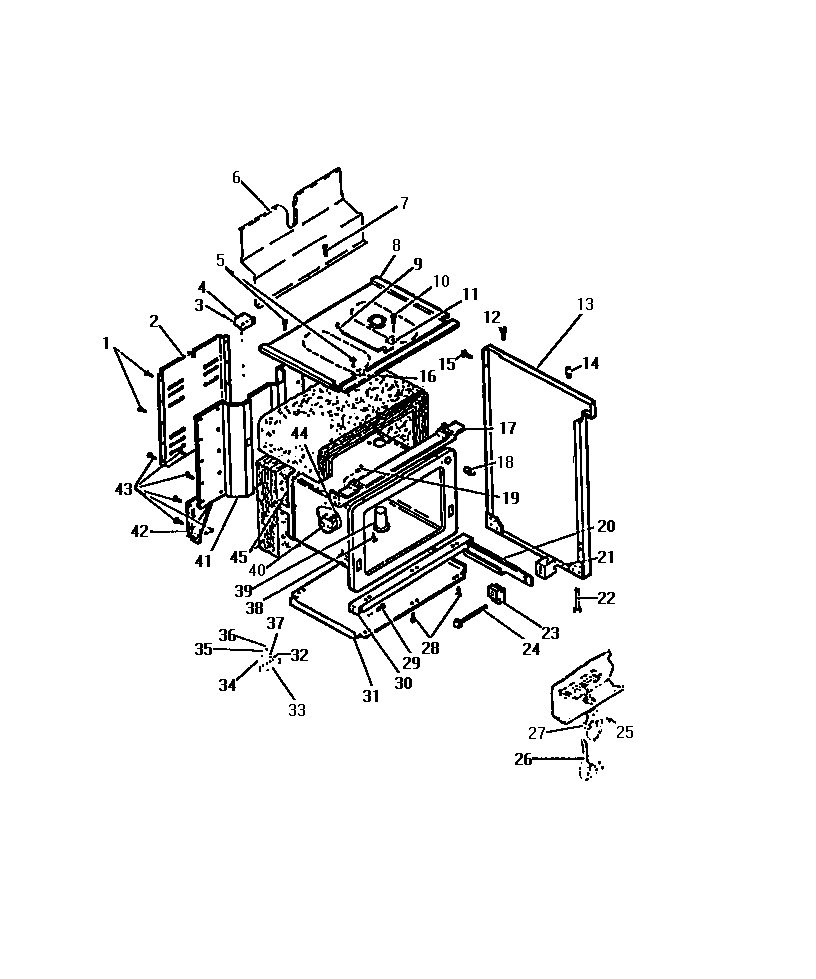

RS35BAW1 16 – OVEN LINER, SIDE PANELSadmin2025-04-26T08:42:59+00:00RS35BAW1 16 – OVEN LINER, SIDE PANELS
Products
| Position | Product |
|---|
| 2 | WCI 8015750 |
| 3 | WCI 8008657 |
| 4 | WCI 8003075 |
| 6 | WCI 8015738 |
| 8 | WCI 8012542 |
| 9 | WCI 8003079 |
| 11 | WCI 8003316 |
| 12 | SCREWS (2) |
| 13A | PANEL, END, LH, WHITE |
| 13 | PANEL, END RH, WHITE |
| 14 | BUMPERS (4) |
| 16 | WASHERS (2) |
| 17 | WCI 8011092 |
| 18 | WCI 8015948 |
| 20A | RAIL, LH DRAWER |
| 20 | RAIL, RH DRAWER |
| 21 | SPACERS (2) |
| 22 | WCI 8005299 |
| 23 | GUIDES (2) |
| 24 | SCREWS (2) |
| 27 | WCI 8015862 |
| 30 | WCI 8002872 |
| 31 | WCI 8016482 |
| 32 | WASHER (6) |
| 33 | BLOCK |
| 34 | SCREWS (2) |
| 35 | WCI 8003146 |
| 36 | SCREW, GROUND WIRE |
| 37 | WCI 8003148 |
| 38 | SCREWS (2) |
| 39 | WCI 8012541 |
| 40 | WCI 8002854 |
| 41 | WCI 8015749 |
| 42 | GUSSETS, RH |
| 42A | GUSSETS, LH |
| 43 | SCREWS (2) |
| 44 | SCREW |
