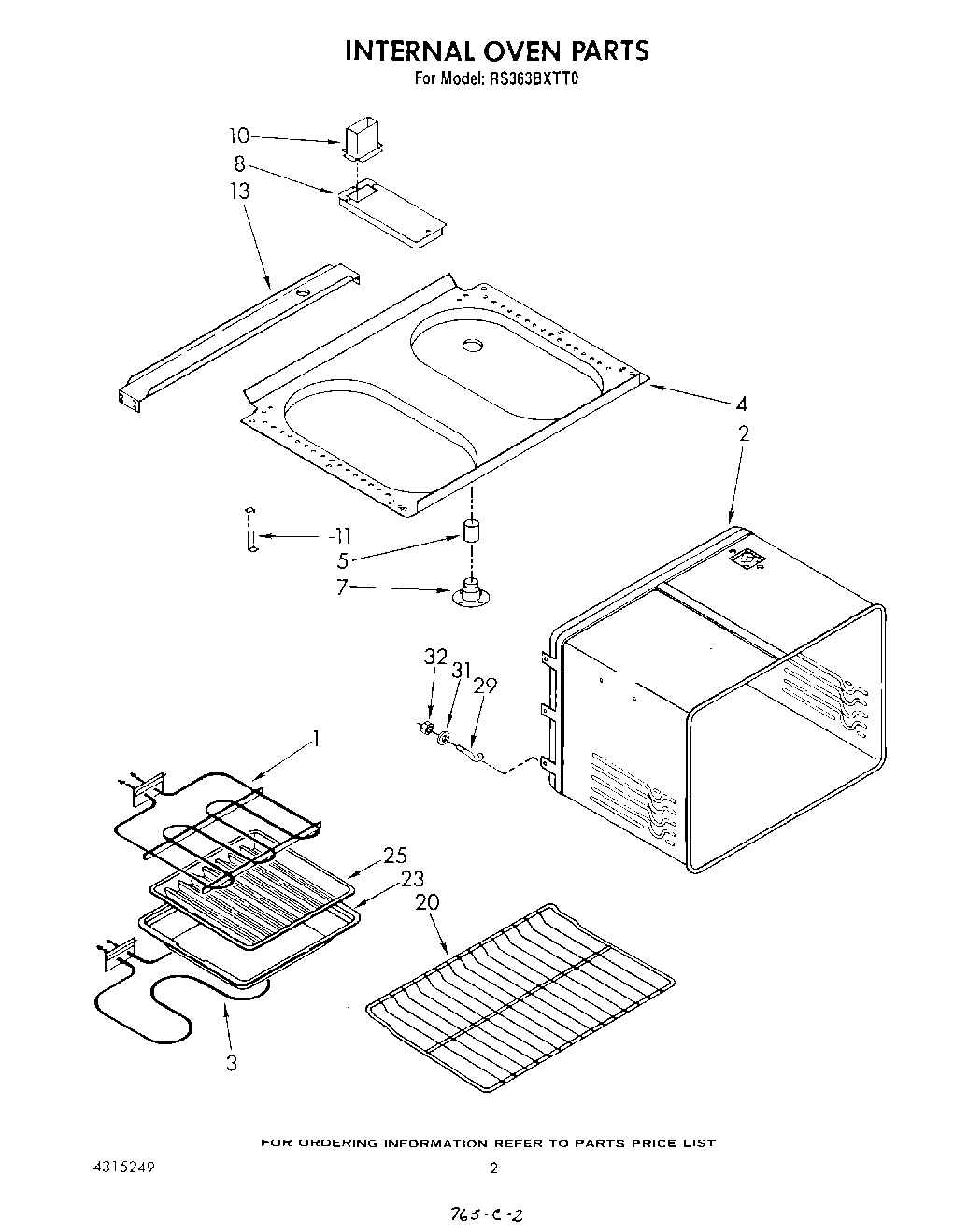

RS363BXTT0 02 – INTERNAL OVENadmin2025-04-26T12:49:18+00:00RS363BXTT0 02 – INTERNAL OVEN
Products
| Position | Product |
|---|
| 1 | Element, Broil |
| 2 | Oven Liner |
| 3 | WP77001094 Whirlpool Oven Bake Element |
| 4 | Baffle, Drip |
| 5 | Extension, Vent Tube |
| 7 | Smoke Eliminator |
| 8 | Flue Box |
| 10 | Flue Box, Rear |
| 11 | Bracket, Support |
| 13 | Channel, Oven |
| 20 | Rack, Oven (2) |
| 23 | Pan, Broiler |
| 25 | Grid, Broiler |
| 29 | Hook Bolt, Oven Shell |
| 31 | Washer |
| 32 | Nut, Hex 10-32 |
