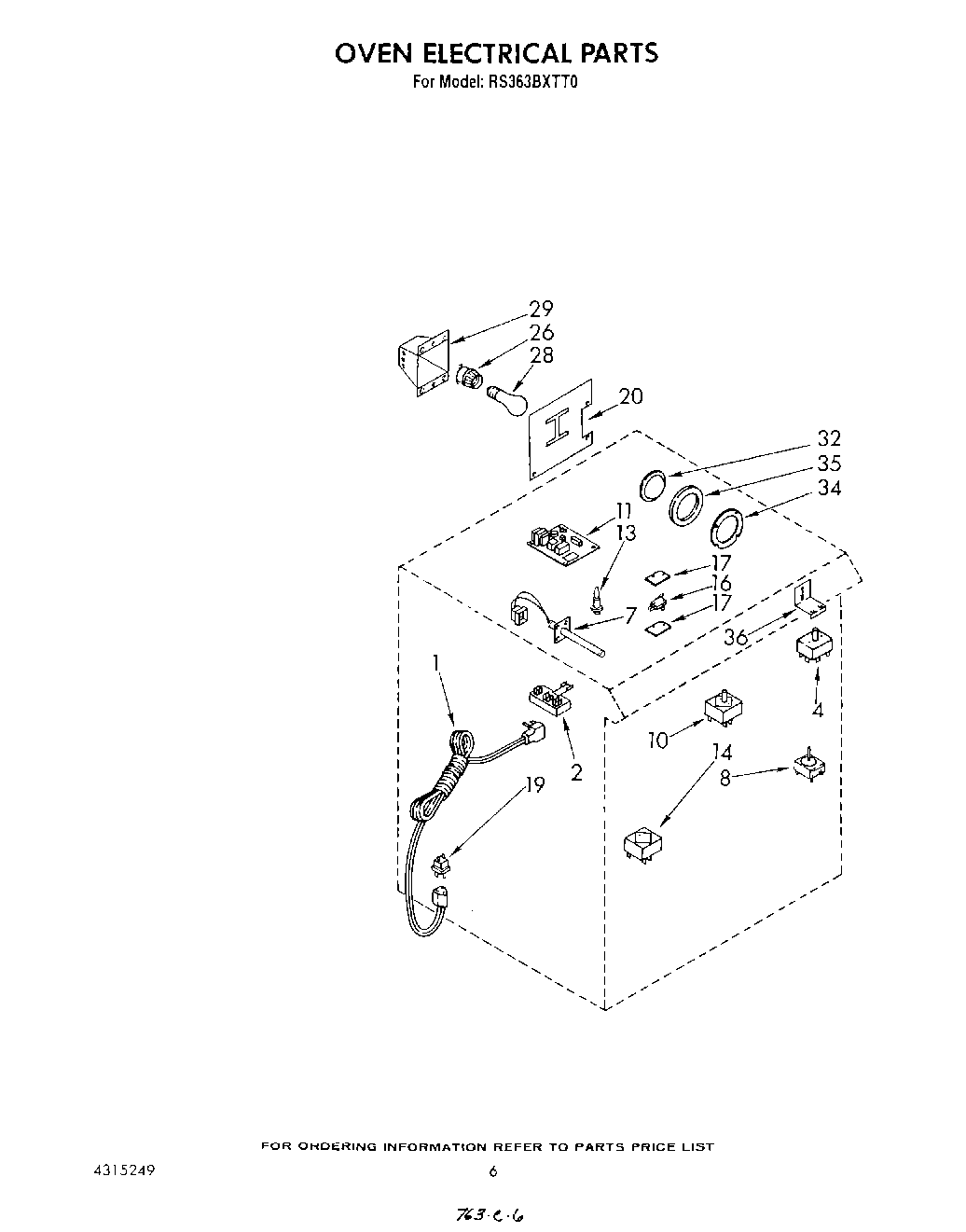

RS363BXTT0 04 – OVEN ELECTRICAL

Products

Position	Product
1	Cord, Power
2	Block, Terminal
4	Switch, Selector
7	Sensor, Oven
8	Control, Thermostat
10	Switch, Infinite (4)
11	P.C. Board, Oven
13	Support, Circuit Board (4)
14	Fixed Setting Infinite Switch
16	Switch, Oven Door Latch
16	screw, 4-40 x 5/8 (2)
17	Insulator, Switch
19	Plug, Male
26	Socket, Oven Lamp
28	RANGE ONLY 40W 120V APPL BULB
29	Smoke Eliminator
32	Lens, Oven Light
34	Retainer, Oven Light Lens
35	Gasket, Oven Light
36	BURNER RECEPTACLE KIT
