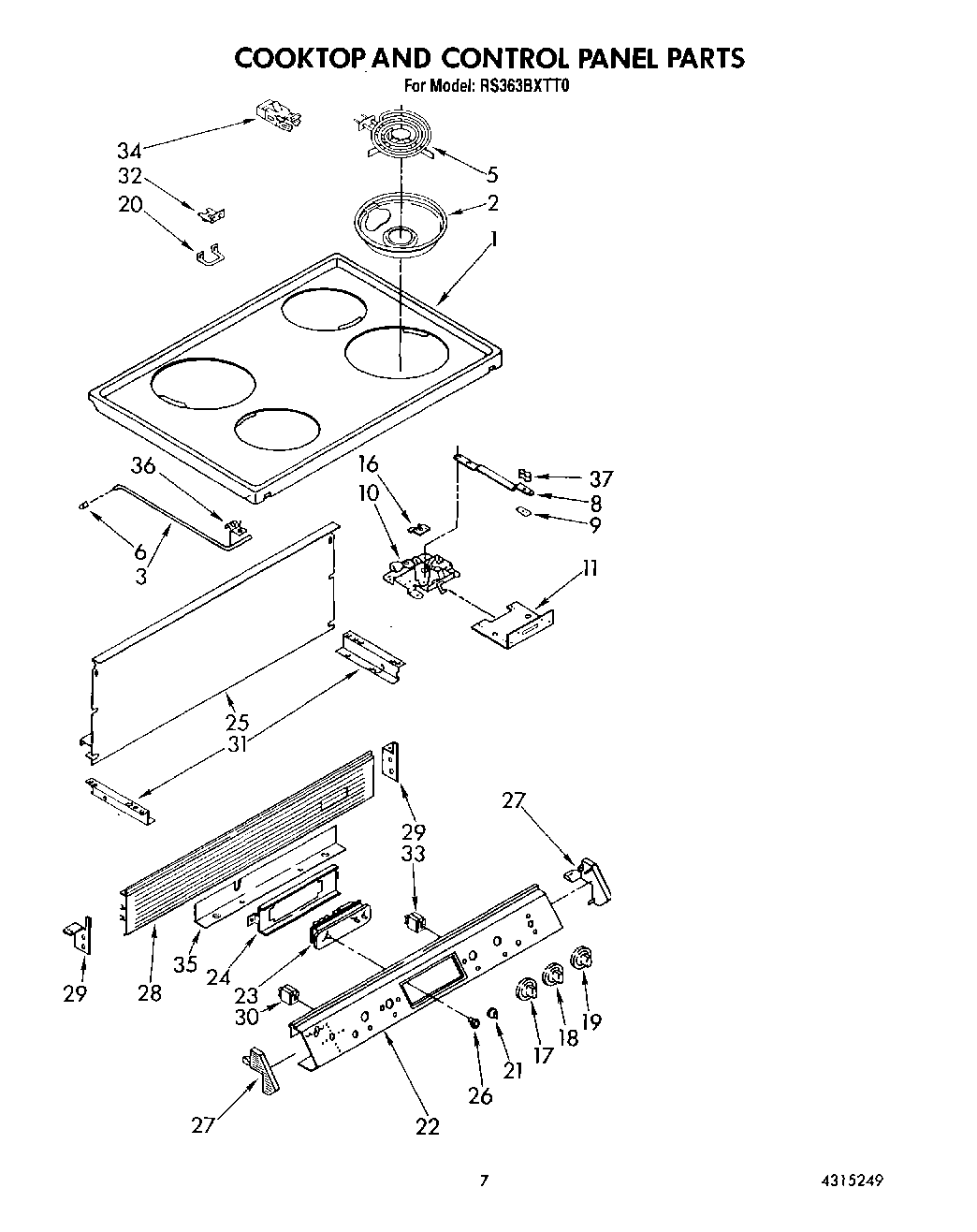

RS363BXTT0 05 – COOKTOP AND CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
	List, Repair Parts
	Guide, Cooking
1	WP965173 Whirlpool Dishwasher Screw
1	Top, Main (Chrome)
2	DRIP BOWL 8" W/HOLE CHROME
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	Rod, Support
5	WP660533 Whirlpool Oven 8" Surface Element
5	WP660532 Whirlpool Oven Surface Element
6	Tip, Rod
8	Handle, Latch
9	Support, Latch
10	Latch Assembly
11	Bracket, Mounting Latch
16	Bracket, Switch
16	screw, 4-40 (2)
17	Knob, Selector
18	Knob, Oven Control
19	Knob, Top Element
20	Hinge, Lower
21	Knob, Clock
22	Control Panel
23	Timer
24	Mounting Bracket Timer
25	Rear Cover
26	Bushing, Clock
27	End Cap (Left Side)
27	End Cap (Right Side)
28	Rail, Back
29	Endcap, Backrail (Right Hand)
29	Endcap, Backrail (Left Hand)
30	Light, Indicator (3)
31	Support, Backguard (L.H.)
31	Support, Backguard (R.H.)
32	Hinge, Upper
33	Indicator, Light
34	BURNER RECEPTACLE KIT
35	Heat Shield
36	WP489128 Whirlpool Refrigerator Screw
36	Clamp, Rod
37	Knob, Latch Handle
