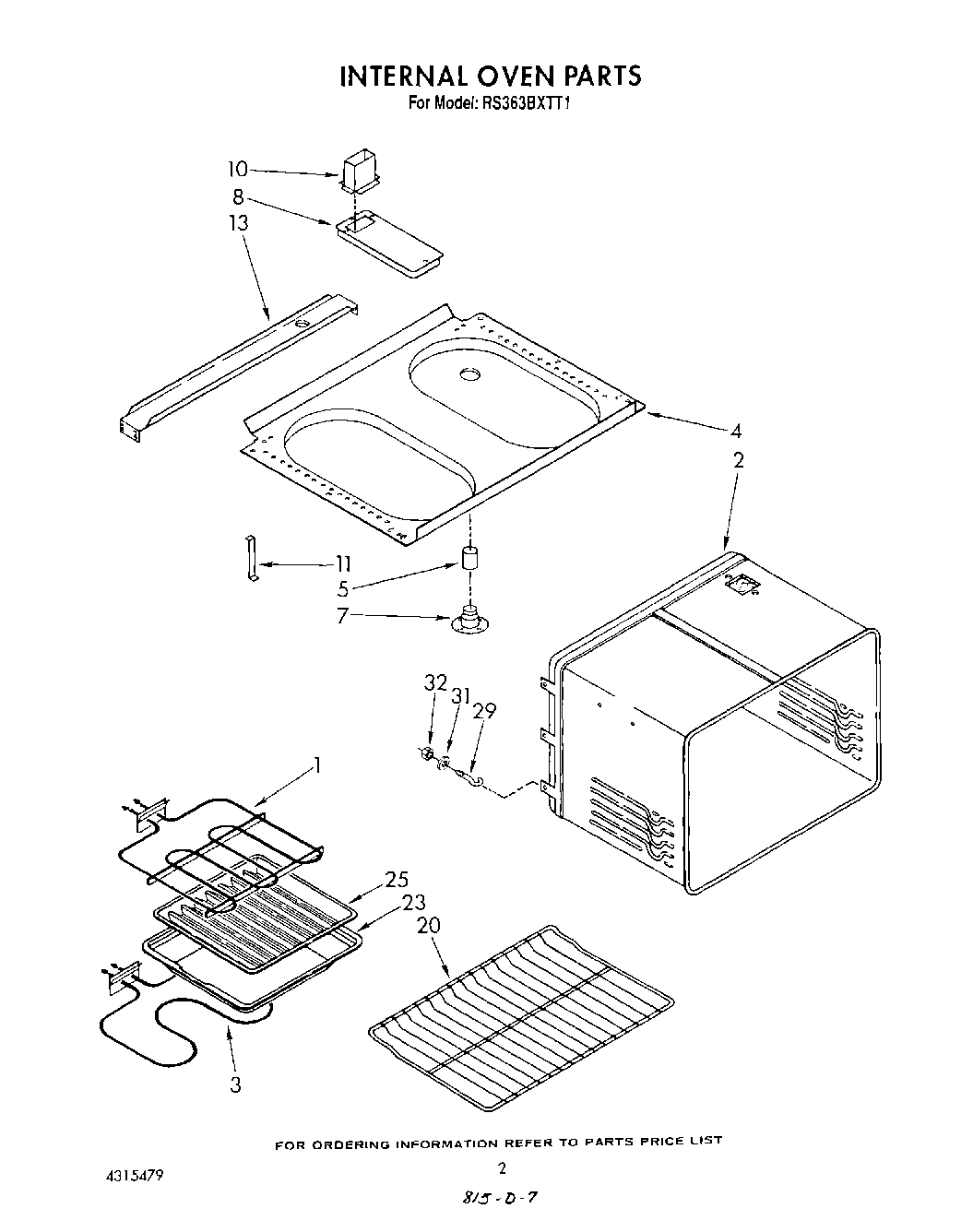

RS363BXTT1 02 – INTERNAL OVEN

Written by

Products

Position	Product
1	Element, Broil
2	Oven Liner
3	WP77001094 Whirlpool Oven Bake Element
4	Baffle, Drip
5	Extension, Vent Tube
7	Smoke Eliminator
8	Flue Box
10	Flue Box, Rear
11	Bracket, Support
13	Channel, Oven
20	Rack, Oven (2)
23	Pan, Broiler
25	Grid, Broiler
29	Hook Bolt, Oven Shell
31	Washer
32	Nut, Hex 10-32
