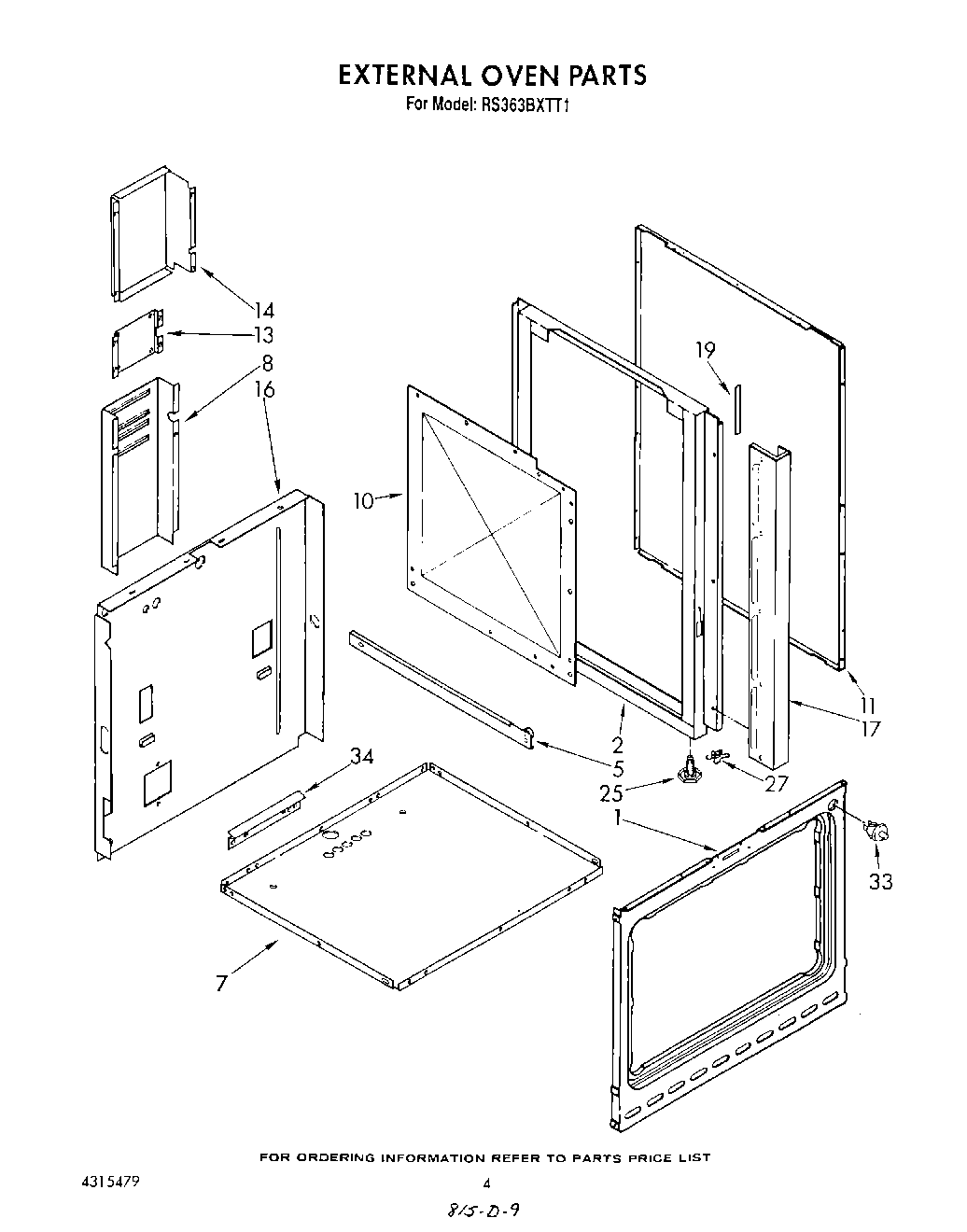

RS363BXTT1 03 – EXTERNAL OVEN

Products

Position	Product
1	WP965173 Whirlpool Dishwasher Screw
1	Frame, Front
2	Frame, Side (Left Side)
2	Frame, Side (Right Side)
5	Track, Storage Draw (Right Side)
5	Rivet, Plastic (4)
5	Track, Storage Draw (Left Side)
7	Retainer, Bottom Insulation
8	Cover Box, Wiring
10	Retainer, Insulation (2)
11	Panel, End (2) (Almond)
13	Mounting Bracket, Control Board
14	Cover, Control Board
16	Rear Panel, Lower
16	WP486754 Whirlpool Compactor Screw
16	bushing, snap
16	nut, 6-32
16	WP488130 Whirlpool Air Conditioner Nut
17	Trim, Side Panel (2)
19	Insulator, Side Trim
25	Leg, Leveling (4)
27	Nut (4)
33	Switch, Oven Door
34	Cover, Sensor
