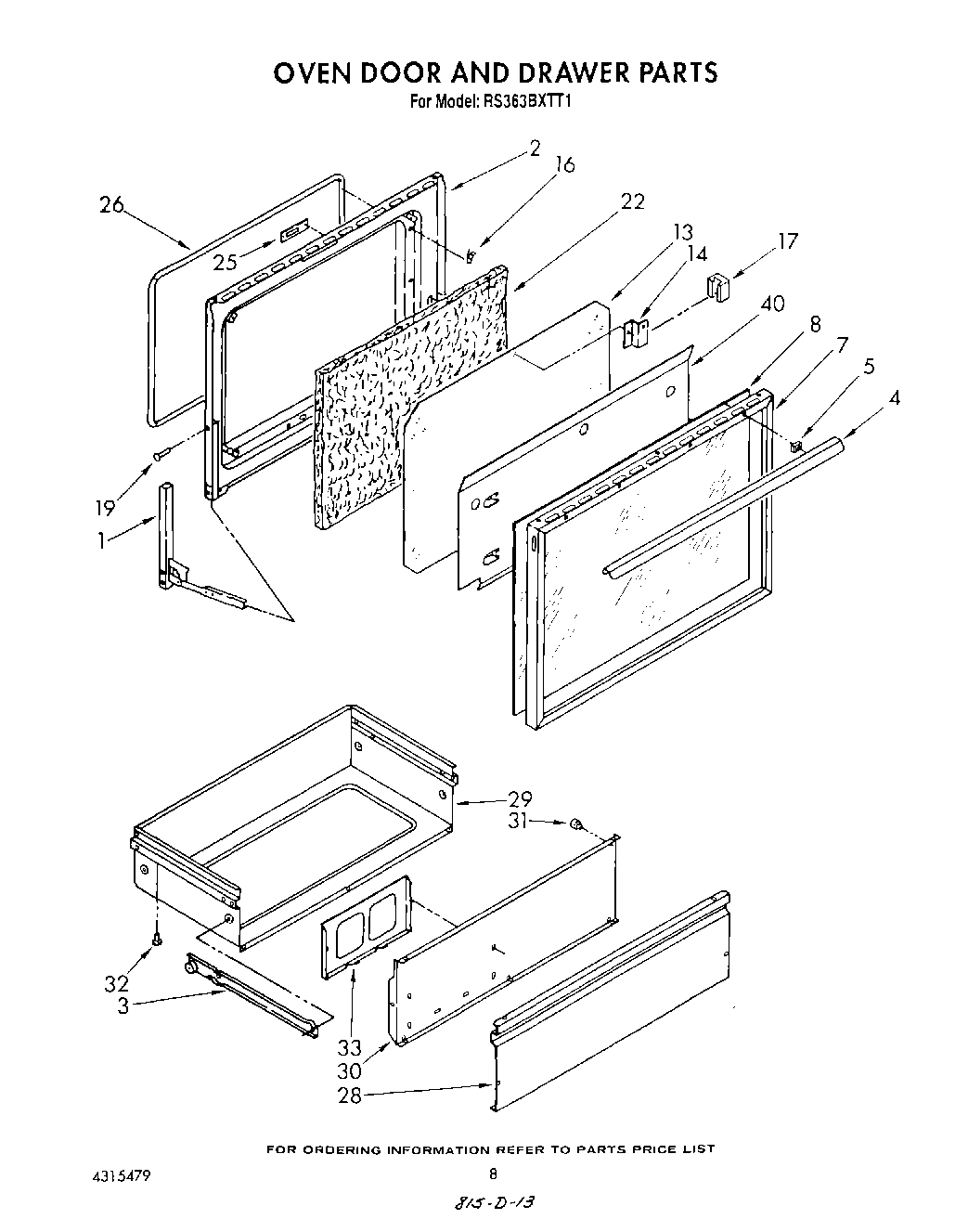

RS363BXTT1 06 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Hinge, Oven Door (Left Side)
1	Hinge, Oven Door (R.H.)
2	WP965173 Whirlpool Dishwasher Screw
2	Screw, 8-32 X 5/8 (4)
2	WP308685 Whirlpool Microwave Screw
2	Liner, Oven Door
2	WP488130 Whirlpool Air Conditioner Nut
3	Runner (L.H.)
3	runner (R.H.)
4	Handle
5	Spacer, Handle (2)
7	Frame
8	Panel, Black Glass
13	Retainer, Insulation
14	bracket, glass support (4)
16	Clip, Speed (14)
17	Bumper, Window (2)
19	Pin, Hinge (2)
22	WPW10208653 Whirlpool Insulation
25	Plate, Latch
26	Gasket Assembly
28	Panel, Drawer (Black)
29	Wrapper, Storage Drawer
30	Liner, Door Panel
31	Bumper, Rubber
32	Rivet, Plastic (4)
33	Rack, Literature
40	Baffle, Air
