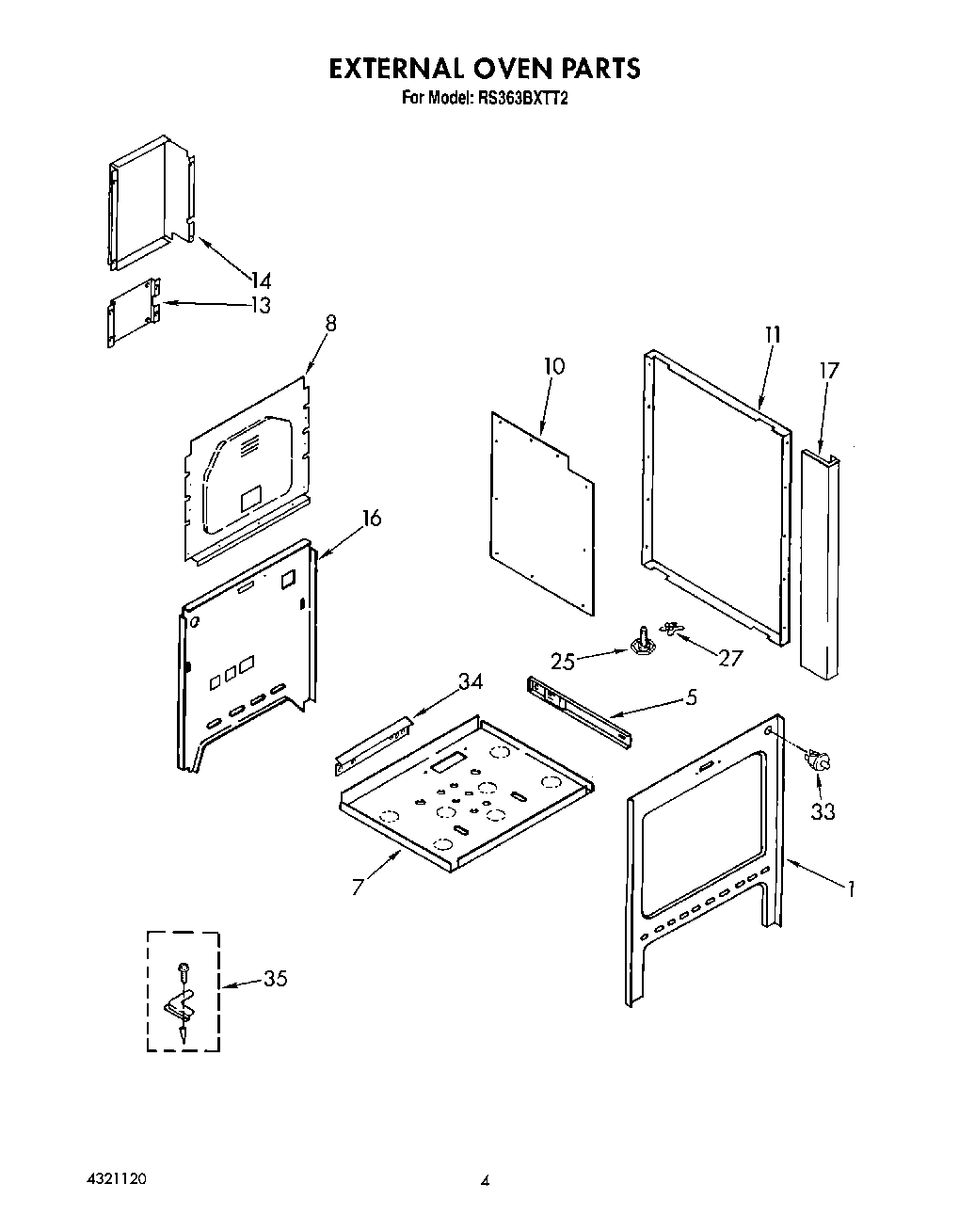

RS363BXTT2 03 – EXTERNAL OVEN

Products

PositionProduct
1WP965173 Whirlpool Dishwasher Screw
1Frame, Front Not Serviceable
5Rivet, Plastic (4)
5track, storage drawer (left side)
7Retainer, Bottom
8Cover, Rear
10track, storage drawer (right side)
11Panel, End (2) Front
13Mounting Bracket, Control Board
14Cover, Control Board
16WP486754 Whirlpool Compactor Screw
16Rear Panel, Lower
16bushing, snap
16WP488130 Whirlpool Air Conditioner Nut
16nut, 6-32
17Trim, Side Panel (Right Hand)
17Trim, Side Panel (Left Hand)
25Leg, Leveling (4)
27Nut (4)
33Switch, Oven Door
34Cover, Sensor
35Anti Tip Kit
