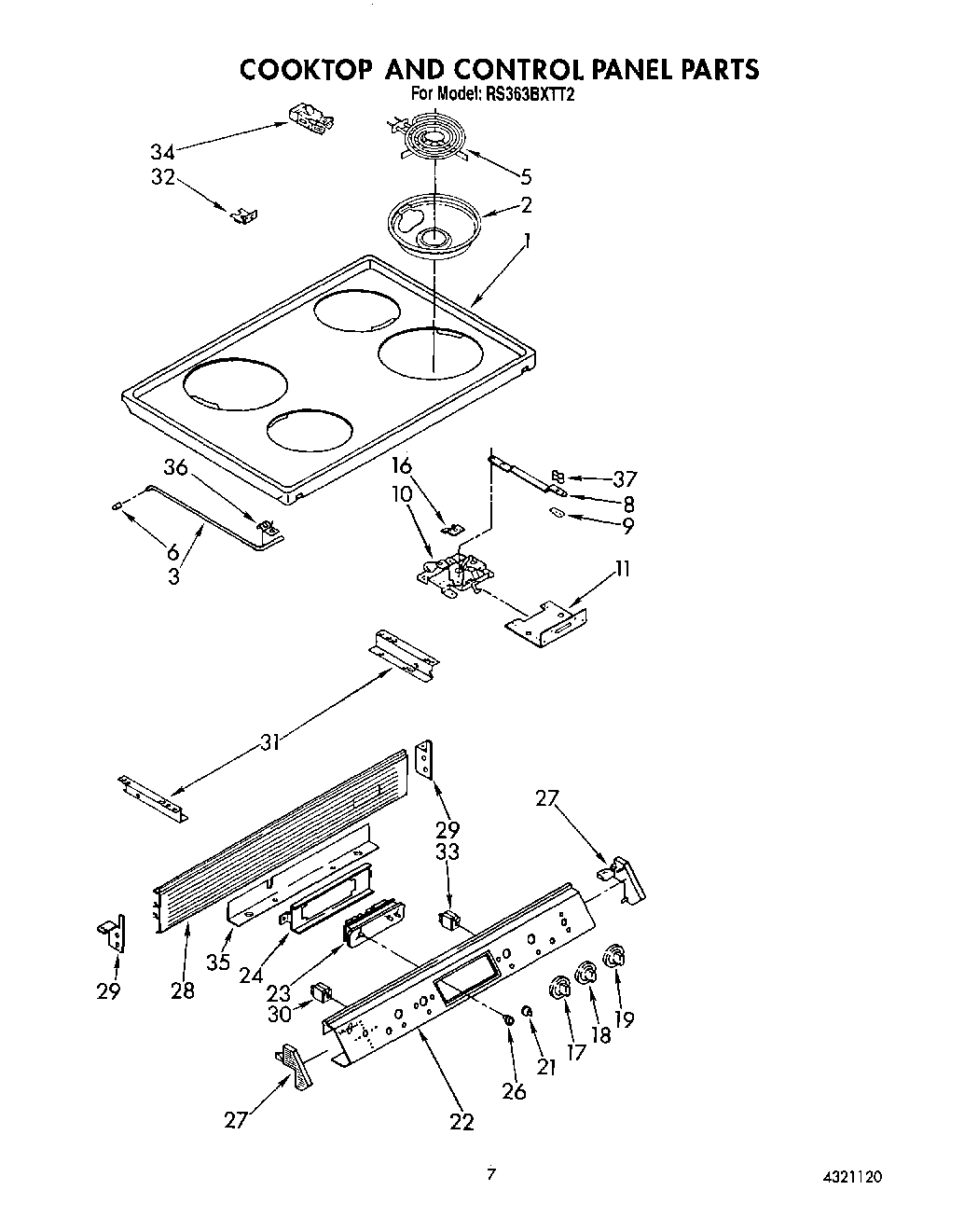

RS363BXTT2 05 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Guide, Cooking
	List, Repair Parts
	Instructions, Installation
	Guide, Use & Care
1	WP965173 Whirlpool Dishwasher Screw
1	Top, Main (Chrome)
2	DRIP BOWL 8" W/HOLE CHROME
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	Rod, Support
5	WP660533 Whirlpool Oven 8" Surface Element
5	WP660532 Whirlpool Oven Surface Element
6	Tip, Rod
8	Handle, Latch
9	Support, Latch
10	Latch Assembly
11	Bracket, Latch Mounting
16	screw, 4-40 (2)
16	Bracket, Switch
17	Knob, Selector
18	Knob, Oven Control
19	Knob, Top Element
20	Filler, Front Frame
21	Knob, Clock
22	Control Panel
23	Timer
24	Mounting Bracket Timer
25	Lens, Indicator Light (2)
26	Bushing, Clock
27	End Cap (Left Side)
27	End Cap (Right Side)
28	Rail, Back
29	Endcap, Backrail (Left Hand)
29	Endcap, Backrail (Right Hand)
30	Light, Indicator (3)
31	Support, Backguard (L.H.)
31	Support, Backguard (R.H.)
32	Hinge, Upper
33	Indicator, Light
34	BURNER RECEPTACLE KIT
35	Heat Shield
36	Clamp, Rod
36	WP489128 Whirlpool Refrigerator Screw
37	Knob, Latch Handle
