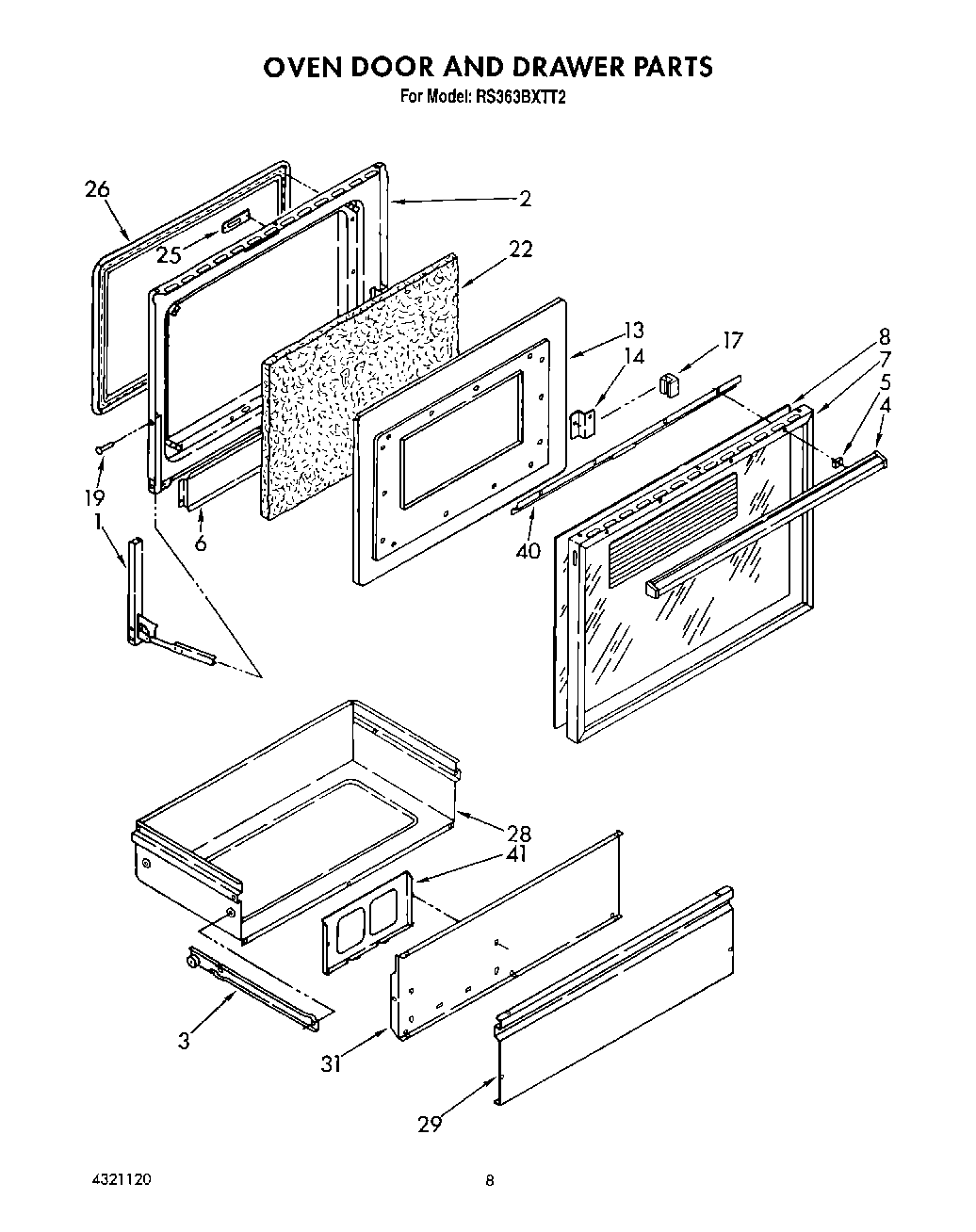

RS363BXTT2 06 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Hinge, Oven Door (Left Side)
1Hinge, Oven Door (R.H.)
2Retainer, Insulation
2WP965173 Whirlpool Dishwasher Screw
2Screw, 8-32 X 5/8 (4)
2WP308685 Whirlpool Microwave Screw
2WP488130 Whirlpool Air Conditioner Nut
3runner (l.h.)
3Runner (R.H.)
4Handle
5Spacer, Handle (2)
6Baffle, Heat
7Frame
8Panel, Black Glass
13Plate, Insulation
14bracket, glass support (4)
17Bumper, Window (2)
19Pin, Hinge (2)
22Insulation, Door
25Plate, Latch
26gasket assembly
28Wrapper, Storage Drawer
29Panel, Drawer (Black)
31Liner, Door Panel
40Baffle, Air
41Rack, Literature
