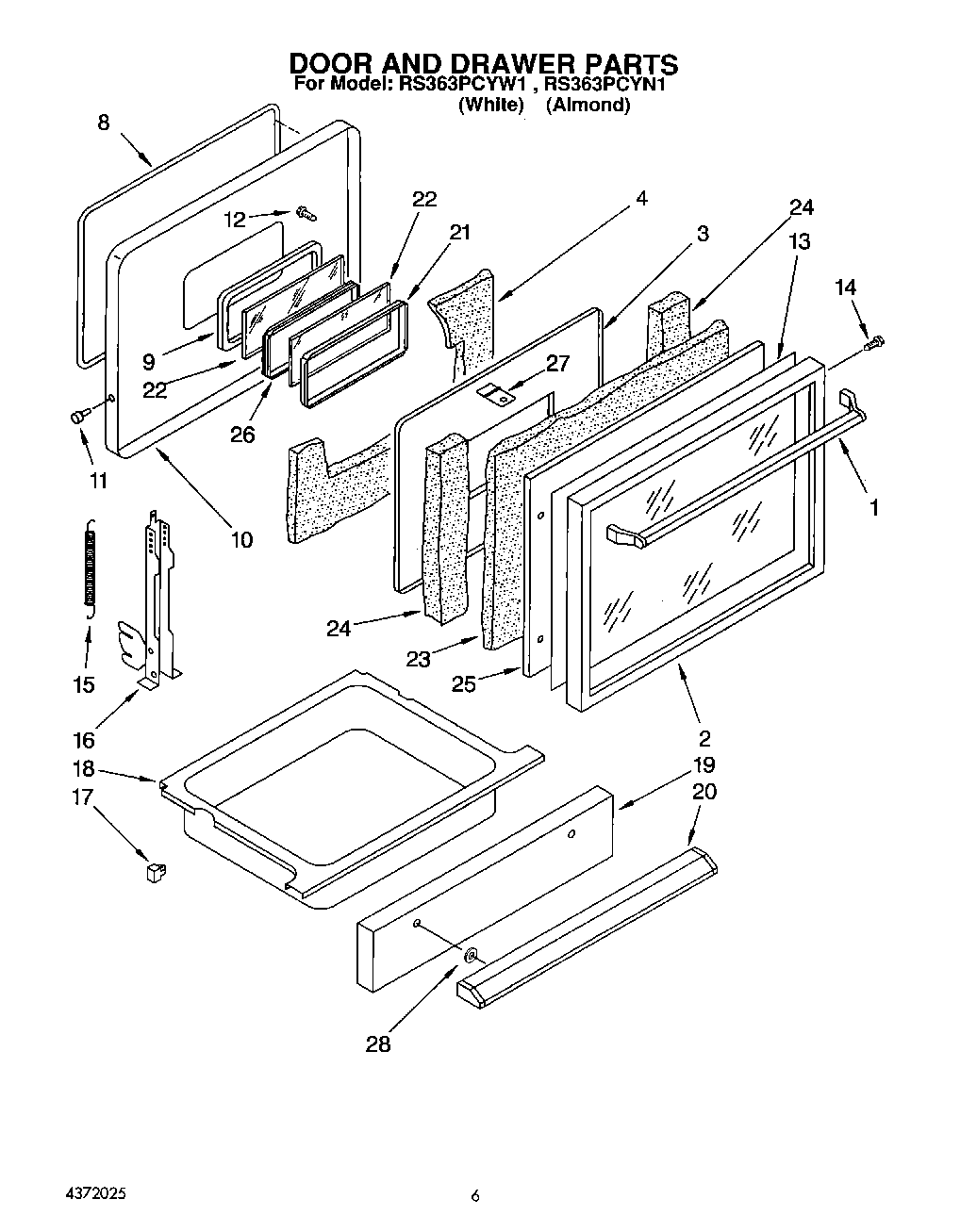

RS363PCYN1 05 – DOOR AND DRAWER

Products

Position	Product
1	Handle, Door (White)
1	Handle, Door
2	Frame, Door (White)
2	Frame, Door (Almond)
3	Liner, Door
4	Insulation
8	Seal, Oven Door
9	Seal, Glass
10	Baffle, Door
11	Plug Button 3/16“ (2)
12	Screw, 10-24 x 5/8
13	Glass, Outer (Almond)
13	Glass, Outer (White)
14	Screw, Handle (4)
15	Spring, Door (2)
16	Assy, Door Hinge (R.H.)
17	Guide (2)
18	Drawer
19	Panel, Drawer (White)
19	Panel, Drawer (Almond)
20	Handle, Utility Drawer
21	Collar, Glass
22	Glass, Heat Barrier (2)
23	Insulation
24	Insulation (2)
25	Panel, Insulation
26	Spacer, Glass
27	Strike
28	Spacer, Handle (2)
