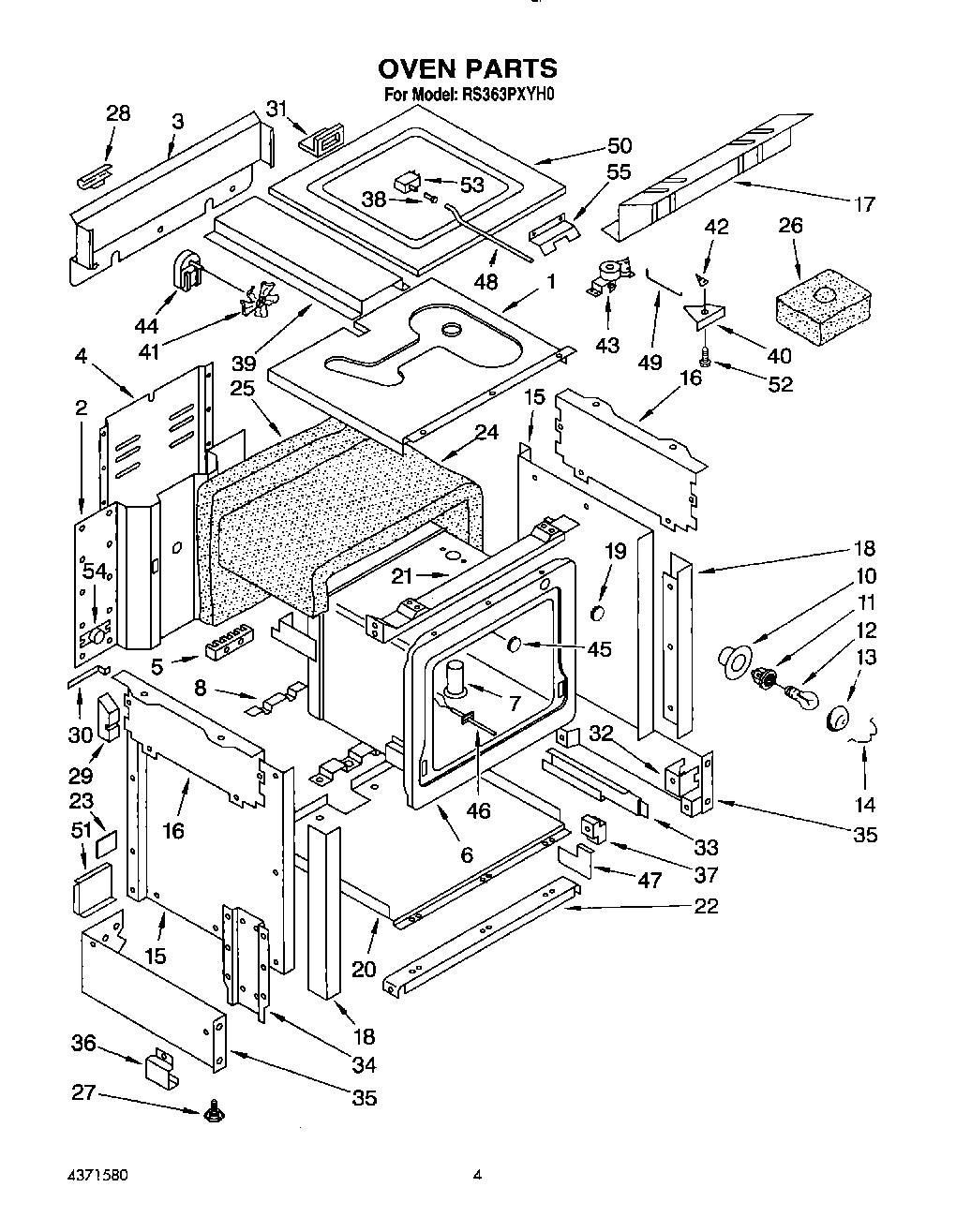

RS363PXYH0 04 – OVEN, LIT/OPTIONAL

RS363PXYH0 04 – OVEN, LIT/OPTIONAL

Written by

in

RS363PXYH0 04 – OVEN, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Use & Care Guide
	Installation Instructions
1	Retainer, Top
2	Panel, Rear (lower)
3	Panel, Rear (upper)
4	Cover, Back
5	WP8203546 Whirlpool Terminal Block
6	Liner, Oven
7	Tube, Vent
8	Panel, Bottom
10	Housing, Oven Light
11	W10856866 Whirlpool Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	Lens, Oven Light
14	Retainer, Lens
15	Retainer, Insulation (2)
16	Panel, Side (2)
17	Shield, Wire
18	Trim, Oven Front (2)
19	Button, Plug 3/4“ (2)
20	Shield, Bottom Insulation
21	Bracket, Cooktop
22	Channel, Oven
23	Plate, Filler (2)
24	Insulation, Wrap
25	Insulation, Oven Back
26	Insulation, Vent
27	Screw, Leveling (4)
28	Bracket, Hinge Support
29	Counterweight (2)
30	Retainer, Weight
31	Bracket, Latch
32	Spacer (2)
33	Rail, Drawer (R.H.)
33	Rail, Drawer (L.H.)
34	Support, Front (2)
35	Panel, Lower Side (L.H.)
35	Panel, Lower Side (R.H.)
36	Shield, Toe
37	Guide, Front (2)
38	Cap, Push Rod
39	Channel, Duct
40	Base, Latch Motor
41	Blade, Fan
42	Lever, Lock
43	Motor, Latch
44	Motor, Fan
45	Button, Plug 3/4“ (2)
46	Probe, 3“
47	Retainer, Door
48	Rod, Push
49	Bar, Tie
50	Panel, Sub-Top
51	WPL 4371333
52	Stud, Latch
53	WP8283288 Whirlpool Door Switch
54	Switch, Thermo Cut-Off
55	Shield, Heat
55	Anti-tip Kit
