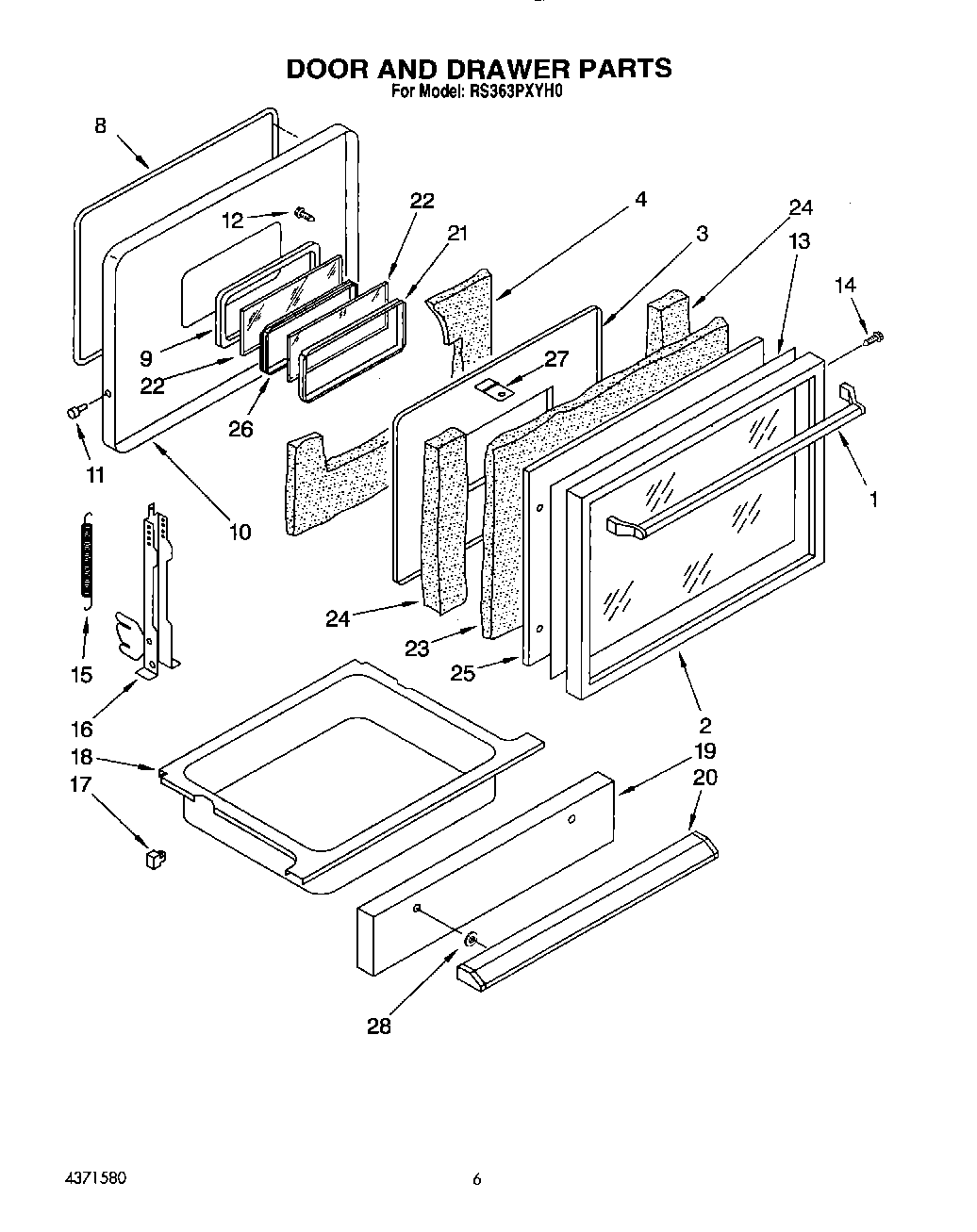

RS363PXYH0 05 – DOOR AND DRAWER

Products

PositionProduct
1Handle, Door
2Frame, Door
3Retainer, Insulation
4Insulation
8Seal, Oven Door
9Seal, Glass
10Liner, Door
11Plug Button 3/16“ (2)
12Screw
13Glass, Outer
14Screw, Handle (4)
15Spring, Door (2)
16Assy, Door Hinge (R.H.)
17Guide (2)
18Drawer
19Panel, Drawer
20Handle, Drawer
21Collar, Glass
22Glass, Heat Barrier (2)
23Insulation
24Insulation (2)
25Panel, Insulation
26Spacer, Glass
27Strike
28Spacer, Handle (2)
