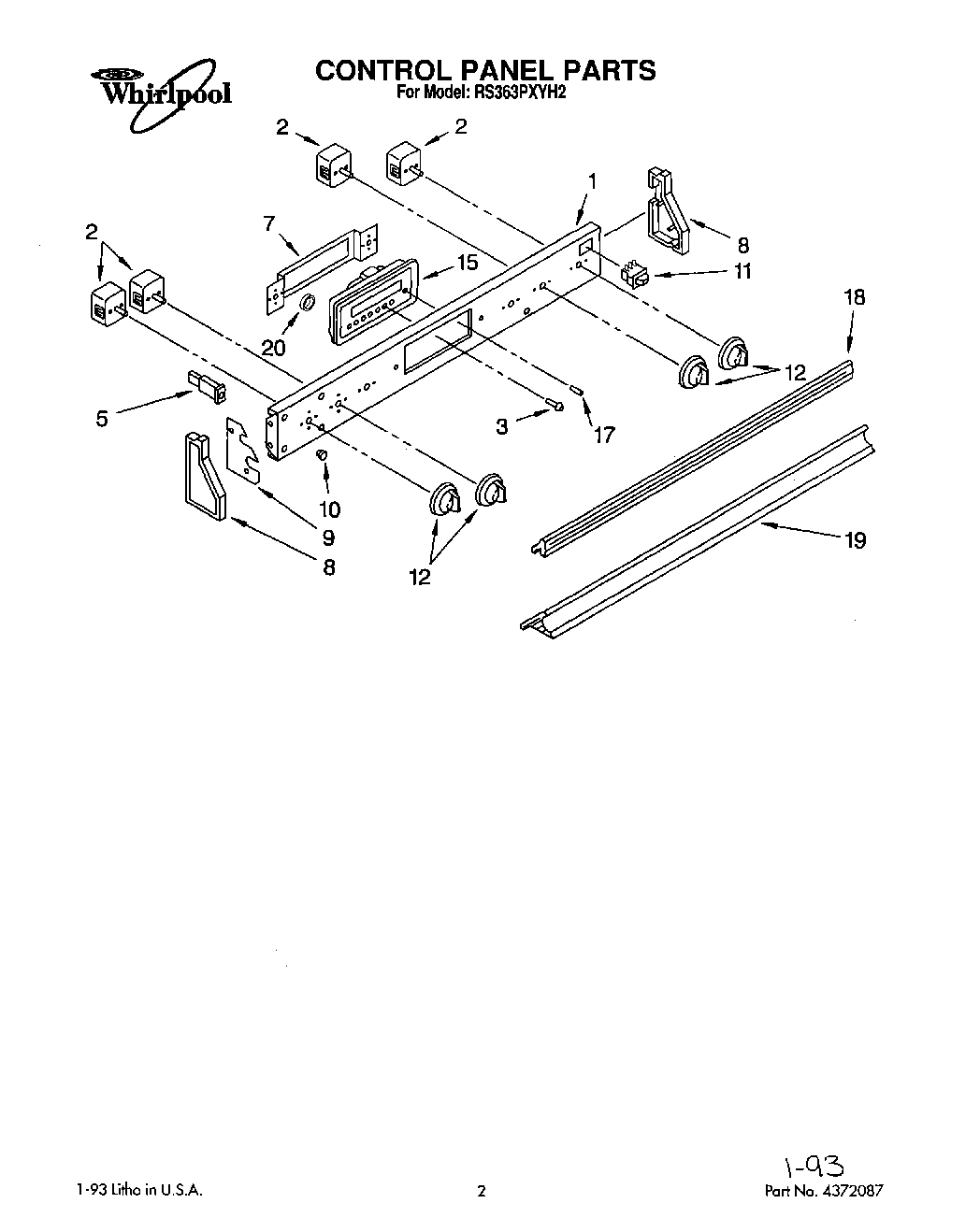

RS363PXYH2 01 – SECTION

Written by

Products

Position	Product
1	Panel, Control
2	W10900107 Whirlpool Oven Surface Element Switch
3	Button, Control, (8)
5	Light, Indicator (Indicator, Surface)
7	Bracket, Clock
8	End Cap (R.H.)
8	End Cap (L.H.)
9	Plate, End Cap
10	Lens, Indicator (4)
11	Switch, Oven Light
12	Knob, Control (4)
15	Clock, Timer
17	Knob, Oven Control
18	Rail, Top
19	Rail, Bottom
20	Spacer, Timer
